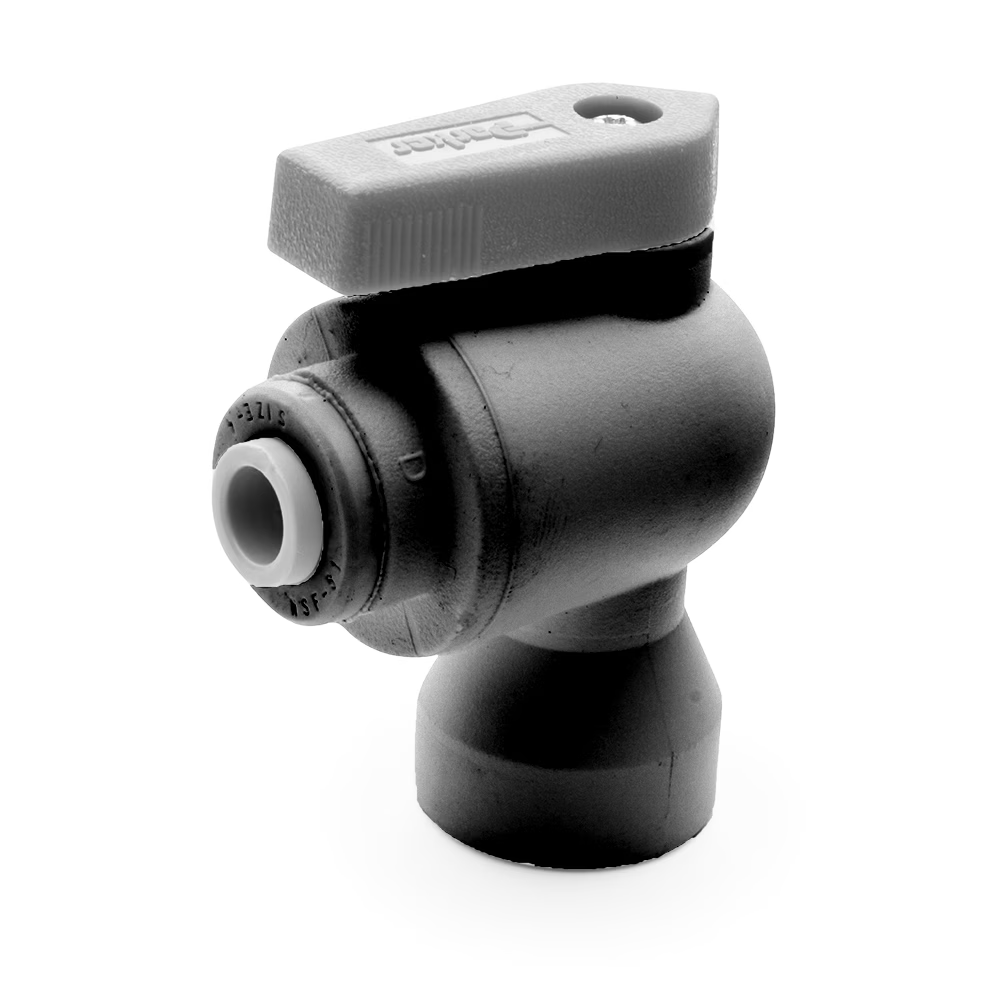

PARKER PBPP4VFE4 Ball Valve, 1/4 Inch Pipe, 1/4 Inch Tube, 150 PSI CWP, 0-212 Deg F, Lever Handle
Item: CT7CRJModel: PBPP4VFE4Cross Ref: 792RT5
7 In Stock
Ships within 2 days via
10.00% off
€14.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | PSU |
| Ball Port Style | Full Port |
| Body Material | Polypropylene |
| Body Seal Material | EPDM |
| Body Style | Two Way |
| Compliance | Meets 3A Sanitary Standards |
| Connection Gender - Side 1 | Male |
| Connection Gender Side 2 | Female |
| Connection Size - Side 1 | 1/4" |
| Connection Size - Side 2 | 1/4" |
| Connection Type | Barb x FNPTF |
| Connection Type - Side 1 | Barb |
| Connection Type - Side 2 | NPT |
| Features | Uniprene Washer |
| For Media | Water |
| Handle | Lever |
| Handle Color | Gray |
| Handle Height | 2.05" |
| Handle Material | Acetal |
| Handle Type | Lever |
| Hose I.d. | 1/4" |
| Included Mounting | Not Applicable |
| Manufacturer Warranty | 1 yr. |
| Max. Pressure | 150 psi |
| Max. Pressure (cwp) | 125 psi |
| Max. Pressure (steam) | 125 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Media Temperature Range | 0°F to 212°F |
| Nominal Valve Size | 1/4" |
| Nsf Certifications For Food And Drinking Water | NSF 51 |
| Overall Length | 2.13" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1/4" |
| Port | Full |
| Seal Material | EPDM |
| Seat Material | EPDM |
| Standards | FDA |
| Stem Material | PSU |
| Stem Type | Blowout Resistant |
| Temp. Range | 0°F to +212°F |
| Tube Size | 1/4" |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Angle |
| Valve Construction | One-Piece |
| Valve Structure | One Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.41 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Body Material | Connection Type | Max. Pressure | Seat Material | Overall Length | Ball Material | Stem Material | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
16A-SWB16L-RT-T-SS-LD-GR | Stainless Steel | Compression x Compression | 2500 psi | RPTFE | 5 9/25" | Stainless Steel | Stainless Steel | PTFE | €2,126.29 | |
 |
HPBVB16FF | Stainless Steel | FNPT x FNPT | 6000 psi | PEEK | 6.03" | Grade 316 | 316 Stainless Steel | PTFE | €3,501.78 | |
 |
FTPPB8VME8 | Polypropylene | Tube x MNPTF | 150 psi | Buna N | 2.34" | PSU | PSU | Buna-N | €25.06 | |
 |
LFPP8VME8 | Polypropylene | Tube x MNPTF | 150 psi | EPDM | 2.73" | PSU | PSU | EPDM | €28.02 | |
|
8A-SWB8L-RT-T-SS-LD-GR | Stainless Steel | Compression x Compression | 2500 psi | RPTFE | 4.06" | Stainless Steel | Stainless Steel | PTFE | €1,110.61 | |
 |
LFPP4VAS8 | Polypropylene | Tube x MNPTF x FNPTF | 150 psi | EPDM | 1.79" | Polysulfone | Polysulfone | - | €26.99 | |
 |
LFPP4VMC8 | Polypropylene | Tube x MNPTF | 150 psi | EPDM | 2.59" | PSU | PSU | EPDM | €28.55 |
