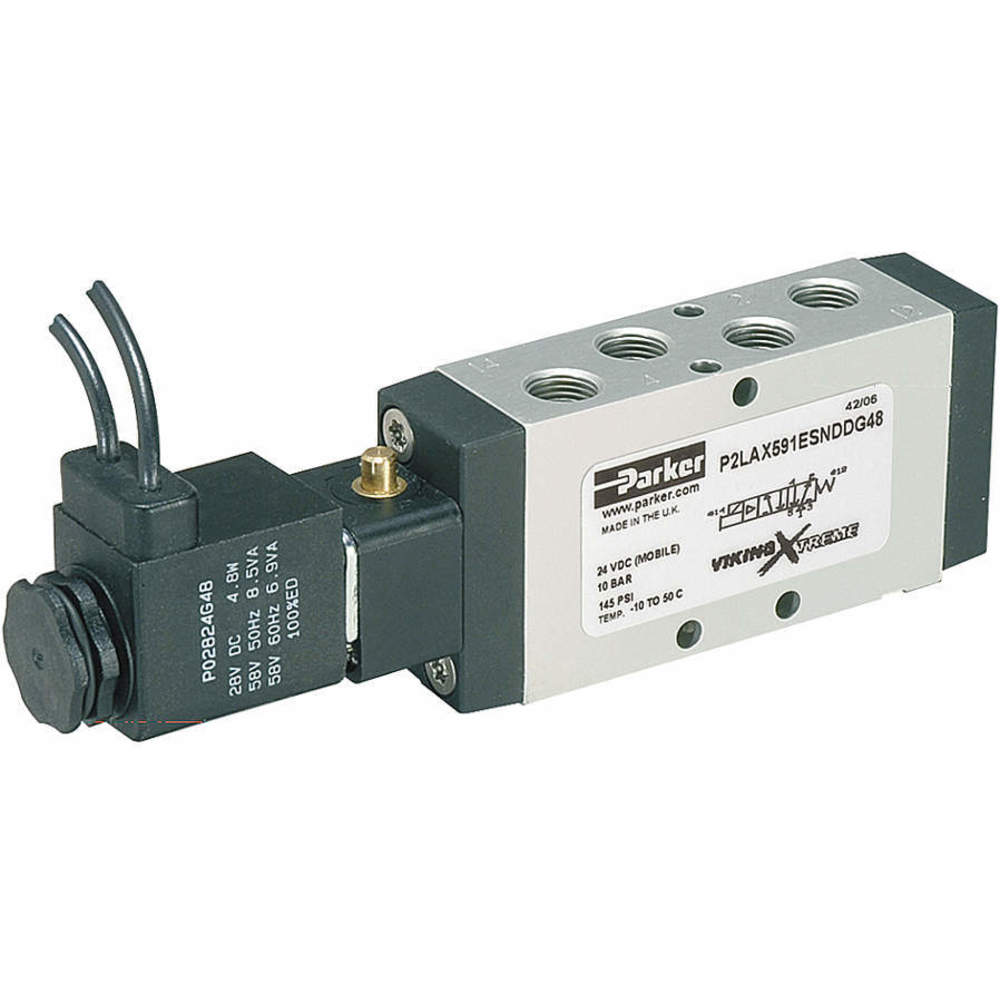

PARKER P2LAX591ESHDDN Solenoid Air Control Valve 1/8 Inch 4-way
Item: AC9BAHModel: P2LAX591ESHDDNCross Ref: 3FFC1
7 In Stock
Ships within 2 days via
10.00% off
€186.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. Range | -40°C to +158°C |
| Body Features | Single |
| Body Material | Aluminum |
| Body Style | Body Ported, Inline |
| Coefficient Of Volume | 0.7 |
| Electrical Connection | Valveless Coil |
| Electrical Connection Type | Solenoid Not Included |
| Exhaust Connection Size | 1/8" |
| Exhaust Connection Type | NPT |
| Exhaust Port Connection Size | 1/8" |
| Exhaust Port Connection Type | NPT |
| Flow Rate - Maximum | 17.5 CFM |
| For Media | Air |
| Includes Solenoid Coil | Solenoid Coil Not Included |
| Inlet Connection | 1/8" FNPT |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/8" |
| Inlet Port Connection Type | NPT |
| Nema Classification | NEMA 4, 4X |
| Nema Rating | NEMA 4, NEMA 4X |
| Number Of Ports | 5 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure | 46 psi to 232 psi |
| Operating Pressure - Maximum | 232 psi |
| Operating Pressure - Minimum | 46 psi |
| Operating Temperature | 14°F to 122°F |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 14°F |
| Operational Pressure Range | 46 psi to 232 psi |
| Overall Height | 1 1/2" |
| Overall Length | 5 1/4" |
| Overall Width | 1" |
| Override | Non-Locking |
| Pilot Connection | 1/8" Female NPT |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 1/8" |
| Pilot Port Connection Type | NPT |
| Pilot Port Size | 1/8" NPT |
| Pilot Pressure | 46 psi |
| Pilot Type | Internal Pilot |
| Poppet Material | Aluminum |
| Product Type | Solenoid Air Control Valve |
| Response Time | 15 ms |
| Return Action | Spring Return |
| Seal Material | Nitrile |
| Series | VIKING XTREME Series |
| Spool Material | Aluminum |
| Vacuum Range | 232 psig |
| Vacuum Rating | Not Vacuum Operable |
| Valve Type | Spool |
| Ways & Positions | Four-Way, Two-Position |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 13.34 |
| Ship width (cm) | 3.81 |
| HS code | 8481809005 |
| Country of Origin | US |
Product Variants
| Product | Model | Coefficient Of Volume | Overall Width | Operational Pressure Range | Body Style | Overall Length | Pipe Size | Actuator Type | Pilot Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

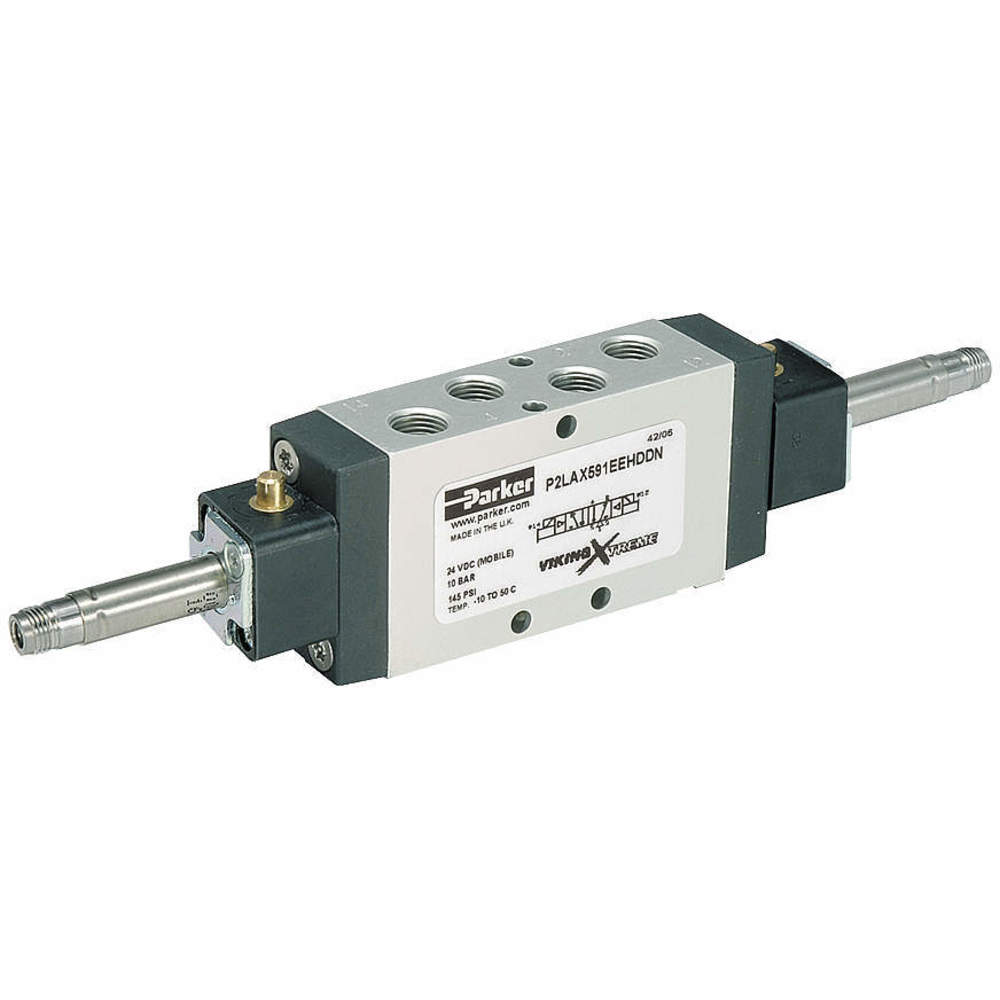

P2LAX591EEHDDN | 0.7 | 1" | 22 psi to 232 psi | - | - | 1/8" | Double Solenoid | 22 psi | €309.76 | |
|
P2LBX592EEHDDN | 1.3 | 1" | 22 psi to 232 psi | Body Ported, Inline | 8 1/2" | 1/4" | Double Solenoid | 22 psi | €353.59 | |
 |

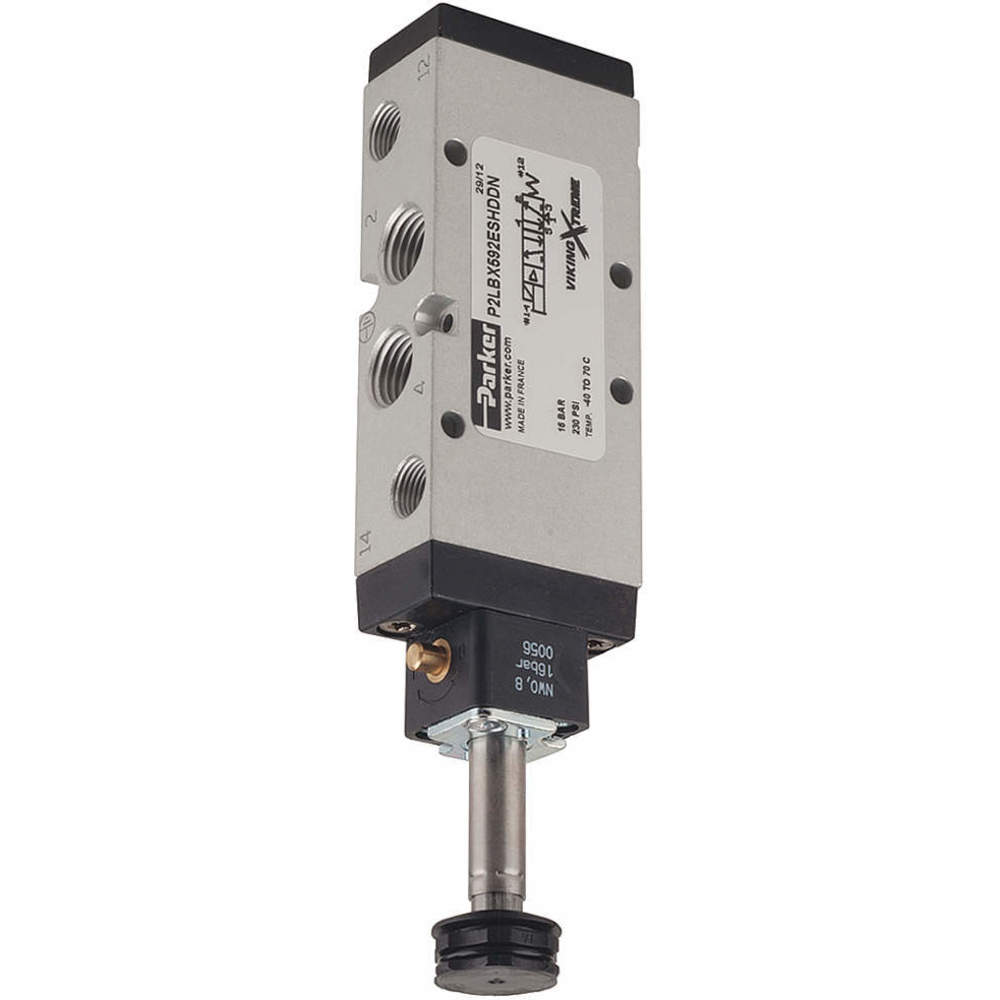

P2LBX592ESHDDN | 1.3 | 1" | 51 psi to 232 psi | Body Ported, Inline | 6" | 1/4" | Single Solenoid | 36 psi | €249.68 | |
|
P2LCX593EEHDDN | 2.5 | 1 1/2" | 22 psi to 174 psi | Body Ported | 10" | 3/8" | Double Solenoid | - | €439.19 | |
|
P2LCX593ESHDDN | 2.5 | 1 1/2" | 22 psi to 174 psi | Body Ported, Inline | 7 1/2" | 3/8" | Single Solenoid | 51 psi | €335.18 | |
|
P2LDX594EEHDDN | 2.7 | 1 1/2" | 22 psi to 174 psi | Body Ported | 10" | 1/2" | Double Solenoid | - | €504.17 | |
|
P2LDX593ESHDDN | 2.7 | 1 1/2" | - | Body Ported, Inline | 7 1/2" | 1/2" | Single Solenoid | 51 psi | €370.43 |
