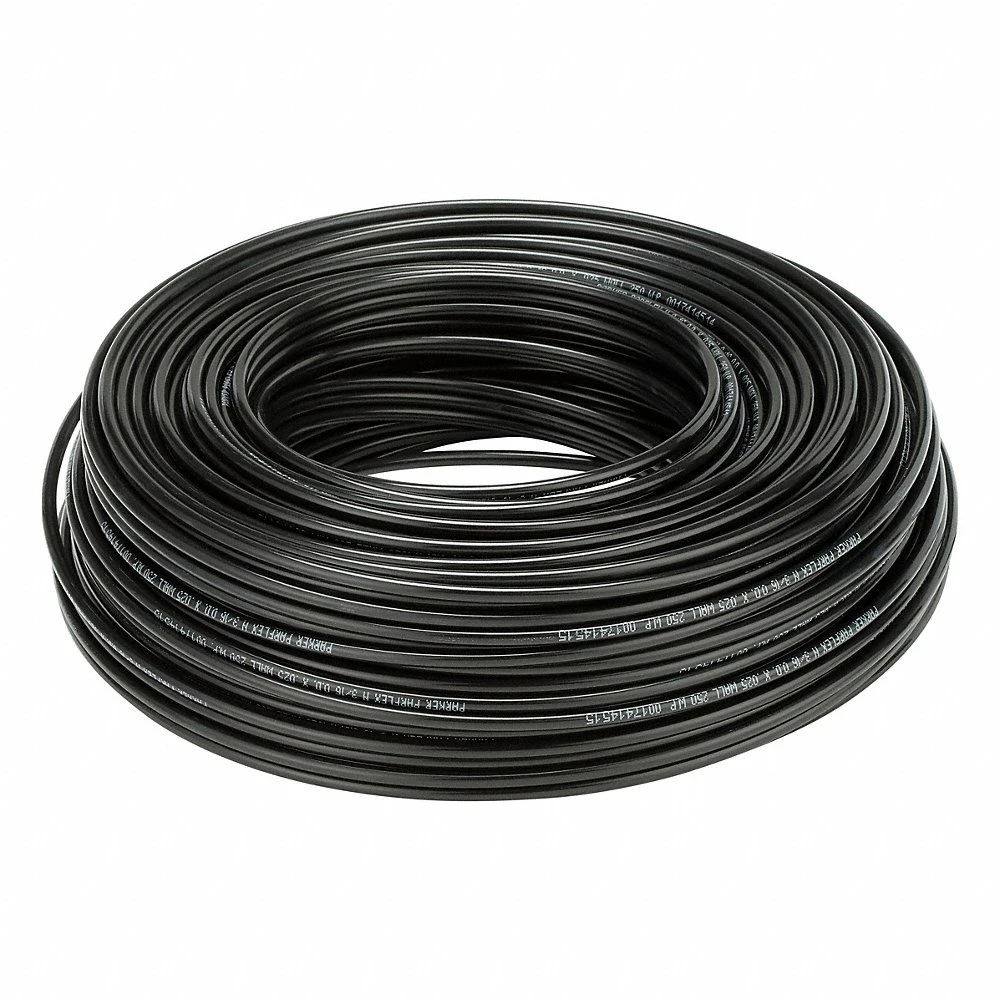

PARKER NB-3-025 Tubing, Nylon, Black, 3/16 Inch OD, 1/8 Inch Id, 250 Ft Length, Shore D 62
Item: CT7KWCModel: NB-3-025Cross Ref: 797DW2
7 In Stock
Ships within 2 days via
10.00% off
€403.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Application | Pneumatic |
| Autoclavable | No |
| Bend Radius | 0.63" |
| Beverage Food And Water Compatibility | Potable Water |
| Beverage, Food, And Water Compatibility | Potable Water |
| Burst Pressure | 1000 psi |
| Clarity | Opaque |
| Coil Weight | 1.5 lbs. |
| Color | Black |
| Compatible Tube Wall Thickness | 0.025" |
| Distinct Properties | Chemical Resistant |
| Features | High-Grade Polyamide Resins For Strength And Flexibility |
| Fitting Compatibility | Compression, Push-To-Connect |
| Flexibility | Flexible |
| Flow Application | General Pneumatics, Lubrication, Pest Control Lines, Petroleum Based Chemical Transfer |
| Food And Beverage Compatibility | Potable Water |
| For Environment | Chemical |
| For Fluid Type | Chemicals, Hydraulic Fluid, Lubricant, Pesticides, Water |
| For Location | Indoor, Outdoor |
| Hardness | Shore D 62 |
| Industry Application | Machine Tools, Pneumatics, Robotics |
| Inside Dia. | 0.138" |
| Inside Diameter | 1/8" |
| Jacket Color | No Jacket |
| Jacket Material | Not Applicable |
| Length | 250 ft. |
| Material | Nylon |
| Material Trade Name | Not Applicable |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 200°F |
| Max. Pressure | 500 psi |
| Max. Pressure Range | 500 psi to 999 psi |
| Maximum Operating Pressure | 250 psi @ 200°F |
| Min. Operating Temp. | -65°F |
| Outside Dia. | 0.188" |
| Outside Diameter | 3/16" |
| Overall Length | 250 ft. |
| Petroleum Product Compatibility | Lubricants |
| Reinforcement | Non Reinforced |
| Resistance Properties | Abrasion Resistant, Chemical Resistant |
| Series | N Series |
| Stripe Color | No Stripe |
| System Of Measurement | Inch |
| Tube Form | Coil |
| Wall Thickness | 0.025" |
| Weight Per Foot | 0.006 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 0.48 |
| Ship width (cm) | 0.48 |
| Country of Origin | US |
Product Variants
| Product | Model | Inside Dia. | Color | Wall Thickness | Outside Dia. | Clarity | Flexibility | Bend Radius | Hardness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NNR-4-035 | 0.18" | Natural | 0.035" | 1/4" | Semi Clear | Semi Rigid | 1" | Shore D 72 | €341.27 | |
|
NNR-5-040 | 0.233" | Natural | 1/25" | 5/16" | Semi Clear | Semi Rigid | 1 1/2" | Shore D 72 | €551.67 | |
|
NNR-6-048 | 0.279" | Natural | 0.048" | 3/8" | - | - | - | - | €684.41 | |
|
NNR-8-062 | 0.376" | Natural | 0.062" | 1/2" | Semi Clear | Semi Rigid | 2 3/8" | Shore D 72 | €1,013.46 | |
 |
NB-2-031 | 0.064" | Black | 0.031" | - | Opaque | Flexible | 1/4" | Shore D 62 | €386.70 | |
|
NB-2.5-025 | 0.106" | Black | 0.025" | 5/32" | Opaque | Flexible | - | - | €265.16 | |
 |
NB-4-035 | 0.18" | Black | 0.035" | - | Opaque | Flexible | 22/25" | Shore D 62 | €569.85 |
