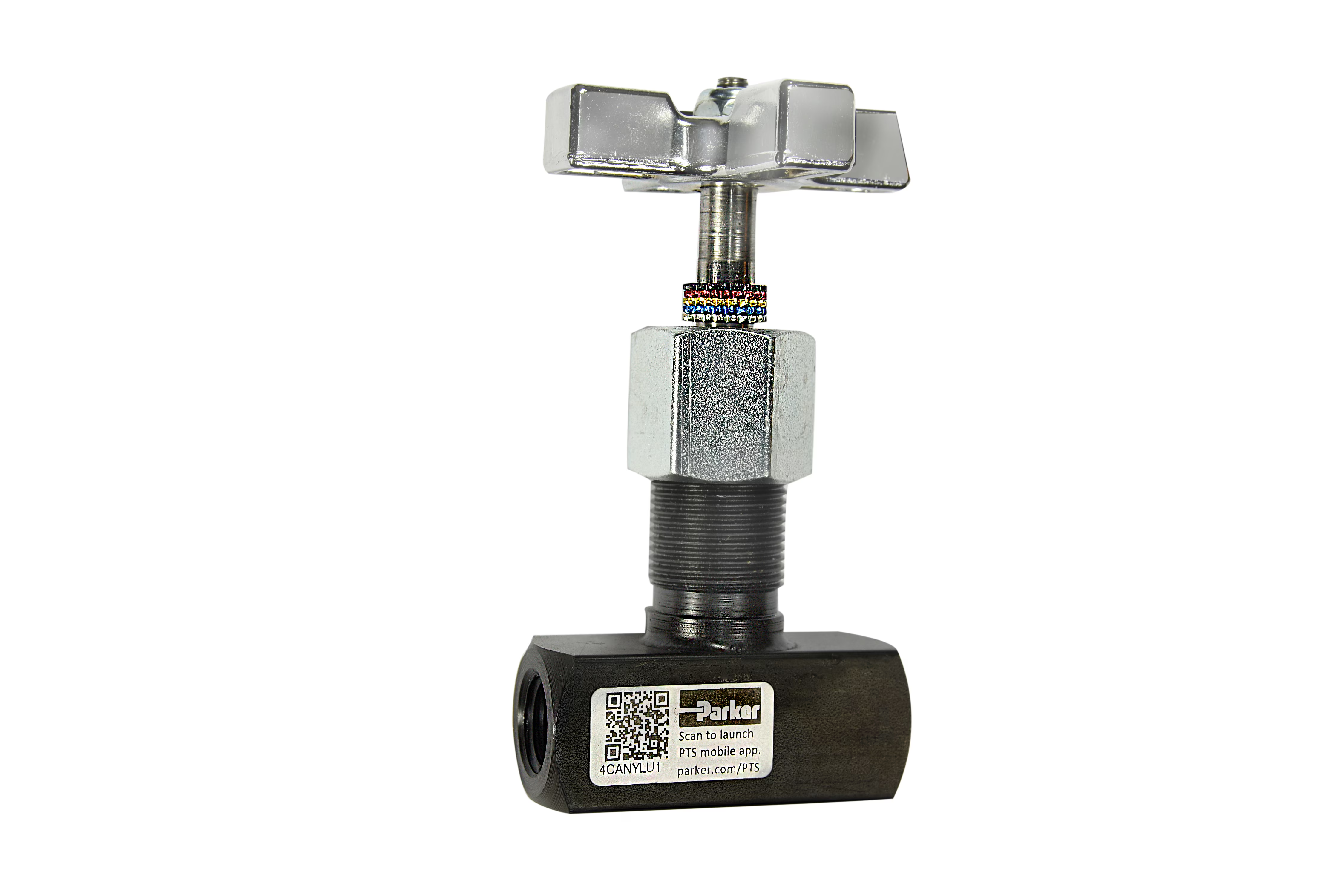

PARKER MV620S Metering Valve, 5 gpm Max. Flow, 5000 PSI Max. Pressure, Steel, 3.51 Inch Height
Item: CT7HPDModel: MV620SCross Ref: 4DKA4
7 In Stock
Ships within 2 days via
5.00% off
€201.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Valve |
| Actuation Mechanism | Manual |
| Adjustment Method | Rotary Knob |
| Body Material | Steel |
| Configuration Type | Female to Female |
| Effective Control Flow Cv Factor | 3.829 |
| Effective Orifice Area-control Flow (in2) | 0.1675 sq. in. |
| For Media | Oil |
| Height | 3.51" |
| Included Seals | Seals Included |
| Inlet Connection Gender | Female |
| Inlet Size | #6 |
| Length | 2.38" |
| Material | Steel |
| Material Poppet/stem Seals | Fluorocarbon |
| Max. Flow Rate | 40 GPM |
| Max. Pressure | 5000 psi |
| Mounting | Inline |
| Operating Temp. | -40°F to +250°F |
| Outlet Connection Gender | Female |
| Outlet Port Type | SAE |
| Reverse Free Flow | No |
| Seal Material | Nitrile |
| Series | MV Series |
| Thread 1 Size | 16" |
| Thread 1 Type | SAE |
| Valve Control | Flow Control |
| Valve Type | Metering Valve |
| Width | 1" |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.05 |
| Ship width (cm) | 8.92 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Width | Max. Flow Rate | Max. Pressure | Reverse Free Flow | Valve Type | Valve Control | Port-to-port Length | Control Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CV-1000-MFMF-5 | 1.62" | 100 GPM | 3000 psi | Reverse Free Flow | Check | Directional Control | 3.31" | One-Way | €481.18 | |
 |
DC-1000-FOFO-5 | 1.62" | 100 GPM | 3000 psi | Reverse Free Flow | Check | Directional Control | 4.88" | One-Way | €274.96 | |
 |
CV-1000-MSMS-5 | 1.62" | 100 GPM | 3000 psi | Reverse Free Flow | Check | Directional Control | 3.31" | One-Way | €440.34 | |
|
CV-370-MFMF-5 | 0.81" | 13 GPM | 3000 psi | Reverse Free Flow | Check | Directional Control | 1 3/4" | One-Way | €282.08 | |
 |
C800B | 1 1/4" | 15 GPM | 2000 psi | Reverse Free Flow | Check Valve | Directional Control | 3 11/25" | One-Way With Reverse Flow | €134.58 | |
|
C800S | 1 1/4" | 15 GPM | 5000 psi | Reverse Free Flow | Check Valve | Directional Control | 3 11/25" | One-Way With Reverse Flow | €134.17 | |
|
DC-1250-5 | 2" | 170 GPM | 3000 psi | Reverse Free Flow | Check | Directional Control | 5.94" | One-Way | €468.31 |
