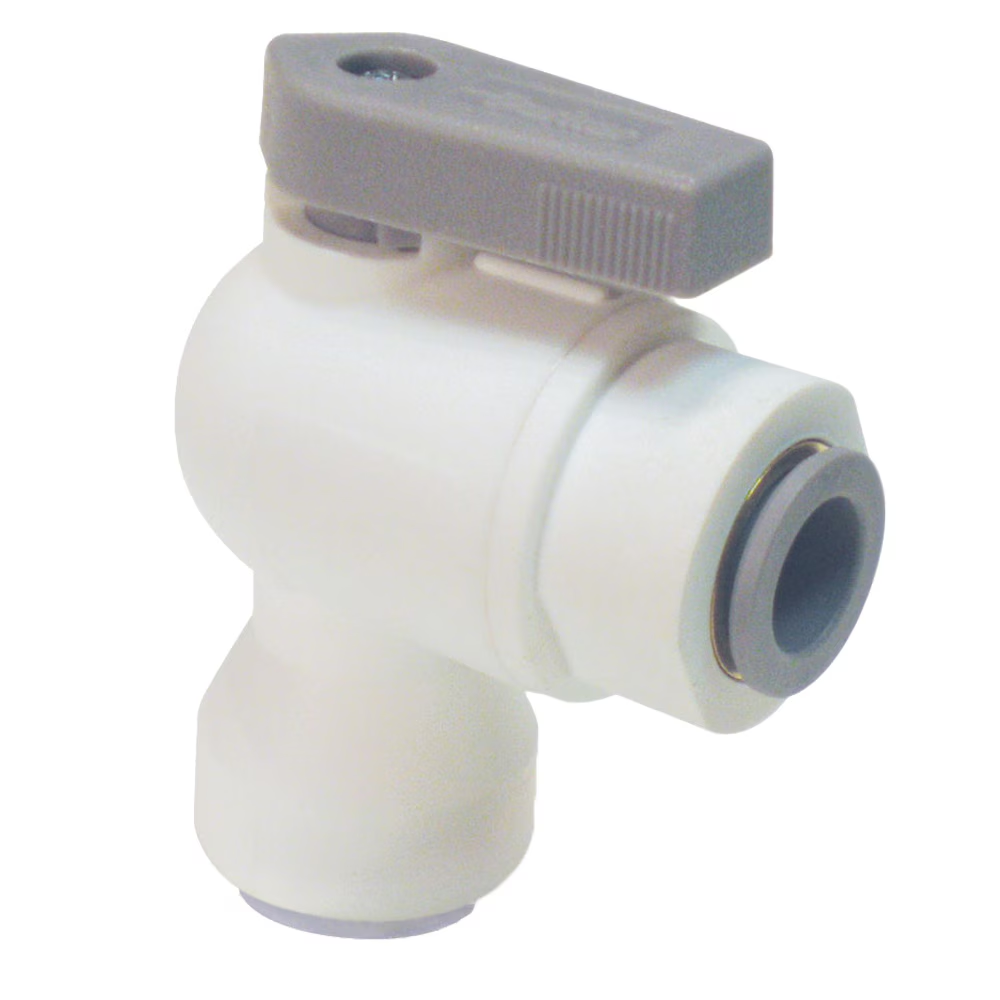

PARKER LFPP8MVEU8M Ball Valve, 8 mm Tube, 150 PSI CWP, 35-200 Deg F, Barb
Item: CT7CUHModel: LFPP8MVEU8MCross Ref: 792RT1
7 In Stock
Ships within 2 days via
5.00% off
€22.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Meets 3A Sanitary Standards |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | PSU |
| Ball Port Style | Full Port |
| Body Material | Polypropylene |
| Body Style | Two Way |
| Color | White |
| Compliance | Meets 3A Sanitary Standards |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 1/4" |
| Connection Size-side 2 | 1/4" |
| Connection Type | Tube x Tube |
| Connection Type-side 1 | Push |
| Connection Type-side 2 | Push |
| Features | High Temperature, Push-In Connection And Disconnection |
| For Media | Water |
| Handle | Lever |
| Handle Color | Gray |
| Handle Height | 14/25" |
| Handle Material | Acetal |
| Handle Type | Lever |
| Included Mounting | Not Applicable |
| Max. Pressure | 150 psi |
| Max. Pressure (cwp) | 150 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Media Temp. | 35°F to 200°F |
| Nominal Valve Size | 1/2" |
| Nsf Certifications For Food And Drinking Water | NSF 51 |
| Overall Length | 0.02" |
| Pipe Schedule Compatibility | Not Applicable |
| Port | Full |
| Seal Material | EPDM |
| Seat Material | EPDM |
| Stem Material | PSU |
| Stem Type | Blowout Resistant |
| Temp. | +35°F to +200°F |
| Tube Size | 8 mm |
| Vacuum Service Rating | Not Rated |
| Valve Body Color | White |
| Valve Body Style | Angle |
| Valve Construction | One-Piece |
| Valve Structure | One Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 1.04 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Seat Material | Ball Material | Max. Pressure | Stem Material | Color | Temp. | Port | Stem Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
16A-SWB16L-RT-T-SS-LD-GR | RPTFE | Stainless Steel | 2500 psi | Stainless Steel | - | -65°F to +350°F | Standard | Blowout Resistant | €1,989.46 | |
 |
HPBVB16FF | PEEK | Grade 316 | 6000 psi | 316 Stainless Steel | - | -65°F to +450°F | Full | Blowout Resistant | €3,250.25 | |
 |
FTPPB8VME8 | Buna N | PSU | 150 psi | PSU | Black | +35°F to +200°F | Full | Blowout Resistant | €23.42 | |
 |
LFPP8VME8 | EPDM | PSU | 150 psi | PSU | White | +35°F to +200°F | Full | Blowout Resistant | €27.83 | |
|
8A-SWB8L-RT-T-SS-LD-GR | RPTFE | Stainless Steel | 2500 psi | Stainless Steel | - | -65°F to +350°F | Standard | Blowout Resistant | €1,025.64 | |
 |
LFPP4VAS8 | EPDM | Polysulfone | 150 psi | Polysulfone | - | +35°F to +200°F | Full | One Piece | €24.79 | |
 |
LFPP4VMC8 | EPDM | PSU | 150 psi | PSU | White | +35°F to +200°F | Full | Blowout Resistant | €29.30 |
