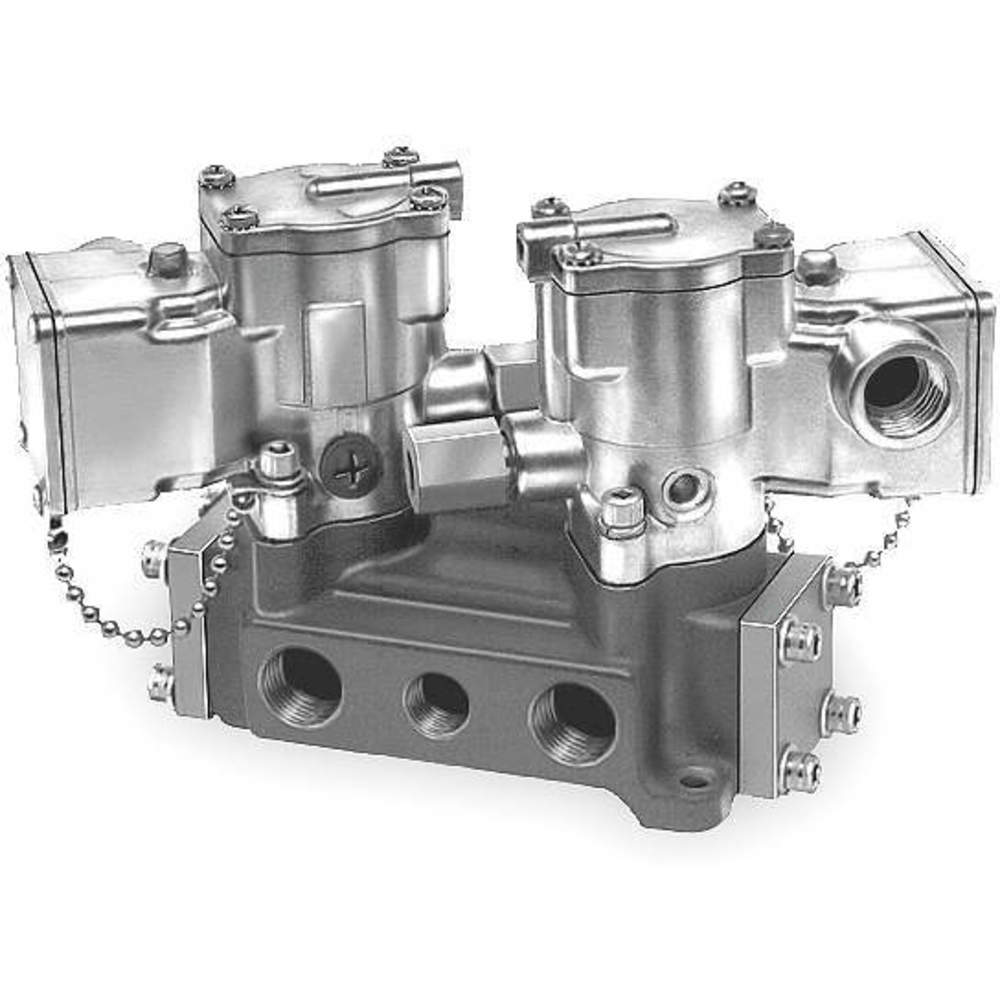

PARKER L6858910253 Solenoid Air Control Valve 1 Inch 120vac
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€2,355.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Double Solenoid |
| Body Features | Single |
| Body Material | Aluminum |
| Body Style | Body Ported, Inline |
| Coefficient Of Volume | 12 |
| Electrical Connection | Plug In |
| Electrical Connection Type | Plug In |
| Exhaust Connection Size | 1 1/4" |
| Exhaust Connection Type | NPT |
| Exhaust Port Connection Size | 1 1/4" |
| Exhaust Port Connection Type | NPT |
| Flow Rate - Maximum | 120 CFM |
| For Media | Air |
| Includes Solenoid Coil | Yes |
| Inlet Connection | 1 1/4" FNPT |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1 1/4" |
| Inlet Port Connection Type | NPT |
| Lubrication | Lubrication Not Required |
| Nema Classification | NEMA 1, 12 |
| Nema Rating | Nema 1, Nema 12 |
| Number Of Ports | 5 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure | 35 psi to 145 psi |
| Operating Pressure - Maximum | 145 psi |
| Operating Pressure - Minimum | 35 psi |
| Operating Temperature | 0°F to 125°F |
| Operating Temperature - Maximum | 125°F |
| Operating Temperature - Minimum | 0°F |
| Operational Pressure Range | 35 psi to 145 psi |
| Overall Height | 6 7/16" |
| Overall Length | 9 1/2" |
| Overall Width | 4 1/4" |
| Override | Locking |
| Pilot Connection | 1" Female NPT |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 1" |
| Pilot Port Connection Type | NPT |
| Pilot Port Size | 1" x 1-1/4" NPT |
| Pilot Port Size | 1" x 1 1/4" |
| Pilot Pressure | 35 psi |
| Pilot Type | Internal Pilot |
| Pipe Size | 1" |
| Poppet Material | Aluminum |
| Power Consumption | 12 W |
| Pressure | 35 psi to 145 psi |
| Pressure Rating | 35 psi to 145 psi |
| Product Type | Solenoid Air Control Valve |
| Return Action | Solenoid Return |
| Series | VALVAIR Series |
| Spool Material | Aluminum |
| Standards | Csa, Ul Listed |
| Vacuum Rating | Not Vacuum Operable |
| Valve Type | Spool |
| Voltage | 110V AC |
| Ways & Positions | Four-Way, Two-Position |
Shipping Info:
| Ship weight (kg) | 6.62 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 16.51 |
| HS code | 8481200060 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Coefficient Of Volume | Overall Height | Overall Width | Overall Length | Pipe Size | Body Style | Pilot Port Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| L6753910253 | 120V AC | 5 | 6 15/16" | 2 27/32" | 7 9/16" | 3/8" | Body Ported, Inline | - | €1,139.96 | |
| L6553910253 | 120V AC | 5 | 6 15/16" | 2 27/32" | 7 3/8" | 3/8" | Body Ported, Inline | - | €1,631.29 | |
| L6553910249 | 24V DC | 5 | 6 15/16" | 2 27/32" | 7 3/8" | 3/8" | Body Ported | - | €1,619.77 | |
| L6753910249 | 24V DC | 5 | 6 15/16" | 2 27/32" | 7 9/16" | 3/8" | - | - | €1,101.43 | |
| L6758910253 | 120V AC | 11.3 | 8 3/4" | 4 9/32" | 10 15/32" | 1" | Body Ported, Inline | - | €2,059.16 | |
| L6758910249 | 24V DC | 11.3 | 8 3/4" | 4 9/32" | 10 15/32" | 1" | - | - | €2,058.77 | |
| L6558910253 | 120V AC | 11.3 | 8 3/4" | 4 9/32" | 9 1/2" | 1" | Body Ported, Inline | - | €2,285.75 |
