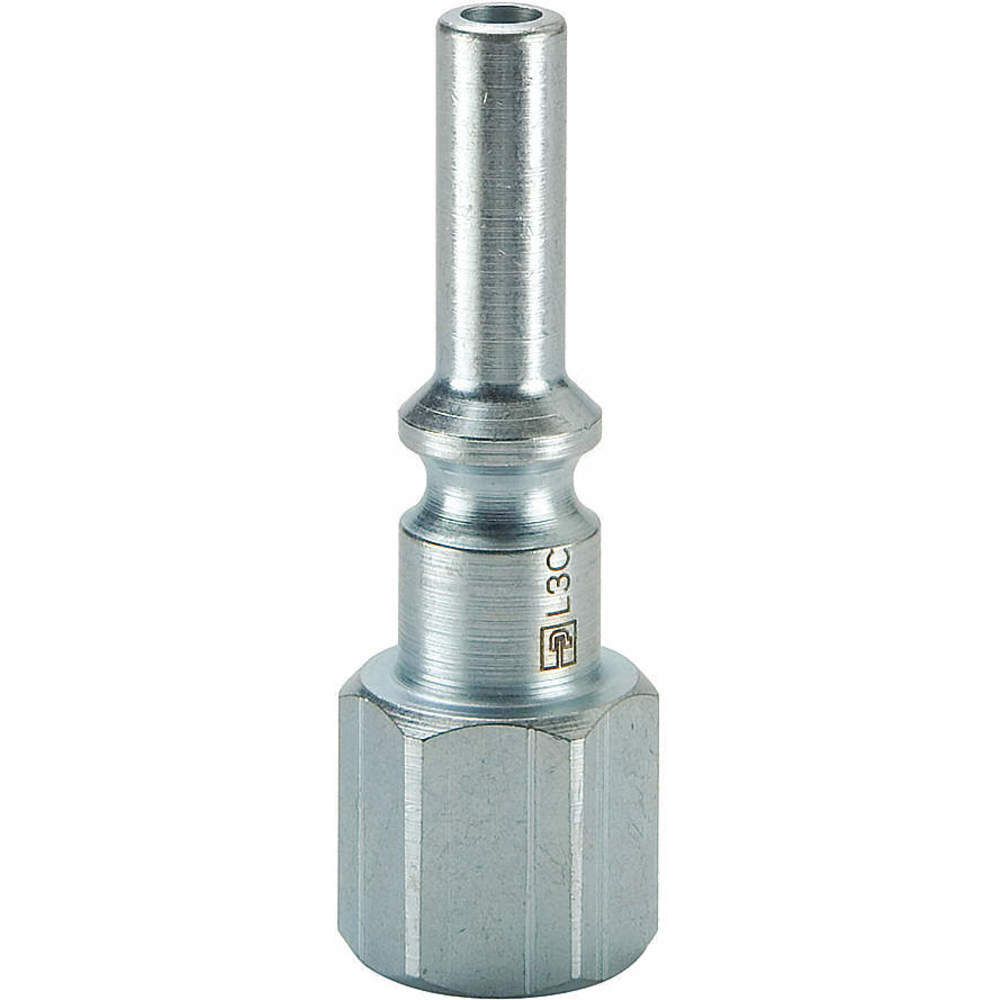

PARKER L3C Nipple, 1/4 Inch Body Size, 1/4-18 Inch Thread Size, Steel
Item: AC4WBCModel: L3CCross Ref: 30N341
7 In Stock
Ships within 2 days via
10.00% off
€14.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Nipple |
| Application | Pneumatic |
| Barbed | No |
| Body Material | Steel |
| Body Size | 1/4" |
| Configuration Type | Female NPTF |
| Connection Type | NPT |
| Coupler/nipple/shell | Nipple |
| Coupling Component | Plug |
| Coupling Locking Type | Sleeve |
| Finish | Trivalent Chrome |
| Finish, Coating | Trivalent Chromium Plated |
| Fitting Type | FNPT |
| Hose Connection Type | FNPT |
| Hose Fitting Gender | Female |
| Hose Fitting Size | 1/4" |
| Includes Valve | No |
| Interchange Type | Lincoln |
| Length | 2.1" |
| Material | Brass |
| Max. Flow Rate | 707.92 LPM |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 250 Deg F |
| Max. Operating Temp. | 250°F |
| Max. Outside Dia. | 21/32" |
| Max. Pressure | 300 psi |
| Max. Pressure Range | 250 psi to 499 psi |
| Max. Working Pressure | 300 psi |
| Max. Working Pressure @ 70 F | 300 psi |
| Min. Operating Temp. | -40°F |
| Overall Length | 2 3/32" |
| Pipe Size | 1/4" |
| Quick Connect Air Coupling Material | Steel |
| Quick Coupler Type | Pneumatic Manual Connect |
| Seal Material | Nitrile |
| Series | 70 Series |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +250°F |
| Thread 1 Size | 1/4" |
| Thread Size | 1/4"-18 |
| Thread Type | Female |
| Valve Type | Unvalved |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.67 |
| Ship length (cm) | 5.32 |
| Ship width (cm) | 1.78 |
| HS code | 7307995015 |
| Country of Origin | US |
Product Variants
| Product | Model | Hose Fitting Gender | Hose Connection Type | Thread Type | Coupling Component | Connection Type | Body Size | Hose Fitting Size | Coupling Locking Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
L2C | Male | MNPT | Male | Plug | NPT | 1/4" | 1/4" | Sleeve | €14.13 |
