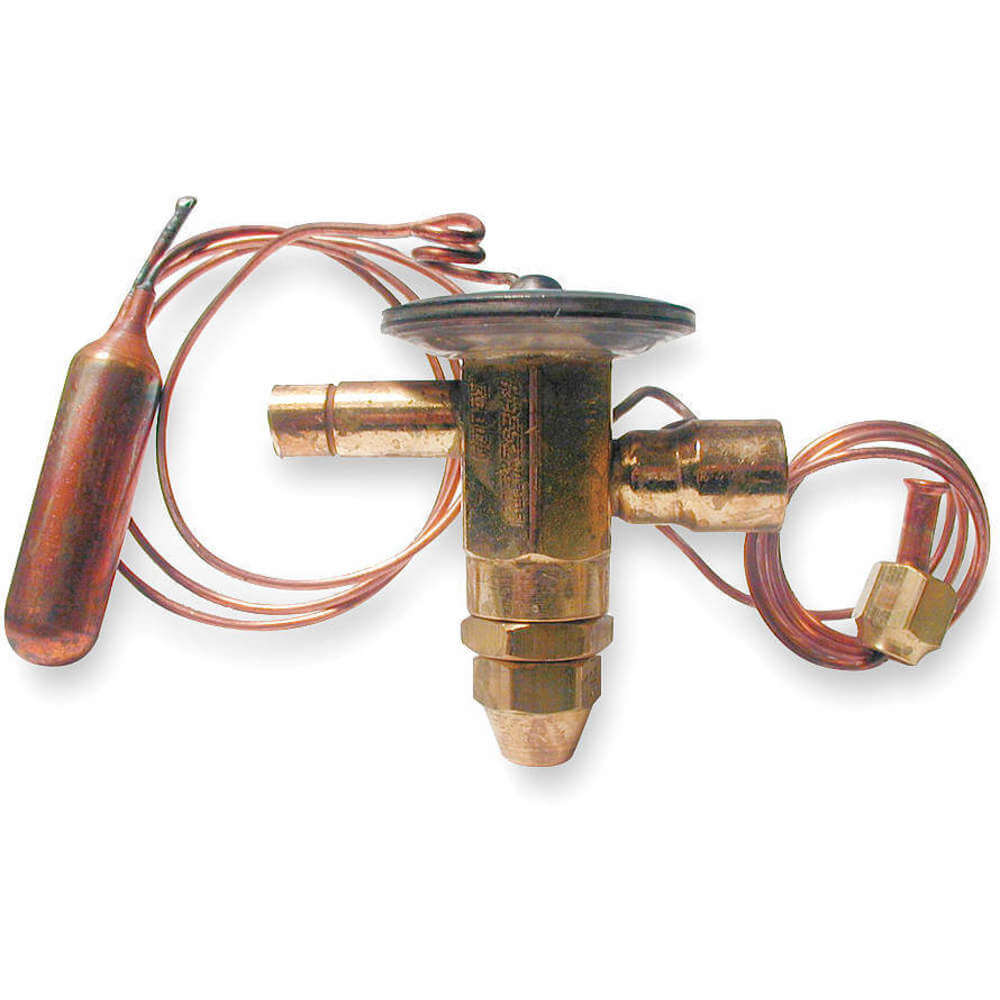

PARKER HCAE3ZX200 Valve Expansion R410a
Item: AB3XQPModel: HCAE3ZX200Cross Ref: 1VW49
7 In Stock
Ships within 2 days via
5.00% off
€273.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thermostatic Expansion Valve |
| Application Temp. | Air Conditioning |
| Ari Standard | 750-70 |
| Balanced Port Design | Balanced |
| Capillary Length | 60 In. |
| Capillary Length | 30" |
| Configuration | Straight-Thru |
| Connection Type | Straight Through Solder |
| Connector Inlet (in.) | 3/8 |
| Connector Inlet Size | 3/8" |
| Connector Outlet | 0.5" |
| Connector Outlet (in.) | 1/2 |
| Control | Accuracy, Maintained Over A Wide Variation In Evaporator Load, Thereby Minimizing Hunting Flood Back And Coil Starving Problems |
| Element Material | Stainless Steel |
| Equalizer Connection Size | 1/4" |
| Equalizer Connection Type | SAE Flare |
| Equalizer Type | External |
| Evaporator Temp. | 10°F to 60°F |
| Evaporator Temp. Range | 10 to 60 F |
| For Max. Capacity | 3 ton. |
| For Min. Capacity | 1.5 ton. |
| For Refrigerant Type | R-410A |
| Included | Sensing Bulb Mounting Clamp |
| Included Bleed Port | Yes |
| Included Strainer | Strainer Not Included |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 3/8" |
| Inlet Connection Type | Sweat |
| Liquid Subcooling Temp. | 10°F |
| Max. Evaporator Temp. | 60°F |
| Max. Operating Pressure | 700 psi |
| Min. Evaporator Temp. | 10°F |
| Nominal Capacity | 1-1/2 to 3 Tons |
| Nominal Capacity | 3 ton. |
| Nominal Capacity-general | 3 ton. |
| Nominal Capacity-r-410a | 3 ton. |
| Not For Refrigerant Type | Ammonia |
| Outlet Connection Gender | Female |
| Outlet Connection Size | 1/2" |
| Outlet Connection Type | Sweat |
| Parker Model Number | HCAE3ZX200 |
| Product Type | Thermostatic Expansion Valve |
| Refrigerant | R-410A |
| Series | Hx Series |
| Superheat | Externally Adjustable |
| Superheat Adjustment | Field Adjustable |
| Type | Adjustable With Check Valve |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 11.94 |
| Ship width (cm) | 11.43 |
| HS code | 8481809045 |
| Country of Origin | MX |
Product Details:
- Balanced Port Design (Yes)
- Equalizer Type (External)
- Liquid Subcooling Temp. (F) (10)
- Not For Use With (Ammonia)
Product Variants
| Product | Model | Type | Capillary Length | Connector Outlet | Superheat Adjustment | Parker Model Number | Nominal Capacity | Outlet Connection Size | For Max. Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
HAE3ZX200B15 | Adjustable | 5 ft. | 1/2" | Externally Adjustable | HAE3ZX200B15 | 3 ton. | 1/2" | 3 ton. | €267.09 |
