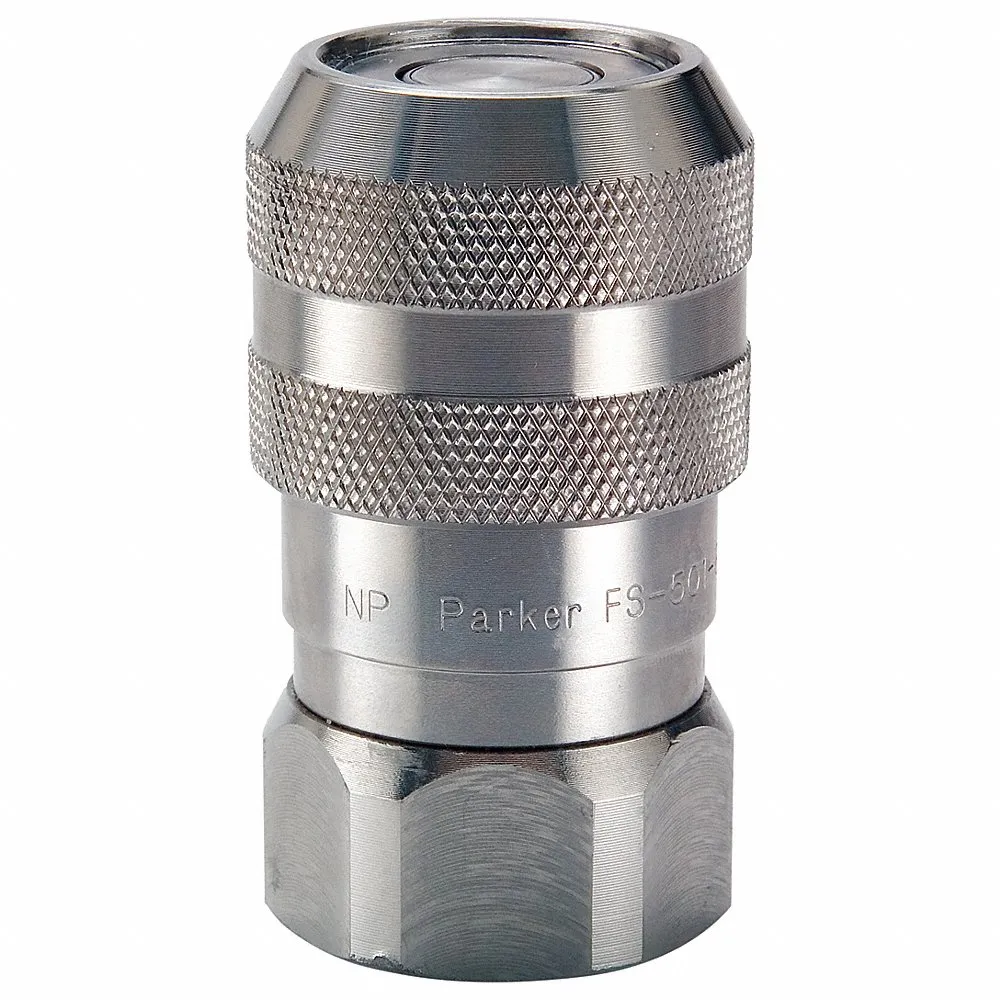

PARKER FS-751-12FP-E5 Hydraulic Quick Connect Hose Coupling, 3/4 Inch Coupling Size, 316 Stainless Steel
Item: CT7GEMModel: FS-751-12FP-E5Cross Ref: 55KV80
7 In Stock
Ships within 2 days via
10.00% off
€1,382.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hose Coupling |
| Application | Hydraulic |
| Body Grade | Grade 316 |
| Body Material | Stainless Steel |
| Body Size | 3/4" |
| Configuration Type | Female NPSF |
| Connection Type | NPT |
| Coupler Finish | Chrome Plated |
| Coupler/nipple/shell | Coupler |
| Coupling Component | Socket |
| Coupling Locking Type | Push To Connect |
| Coupling Size | 3/4" |
| Finish, Coating | Chrome Plated |
| Finish/coating | Chrome Plated |
| Fitting Type | FNPT |
| Hose Fitting Gender | Female |
| Hose Fitting Size | 3/4" |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Length | 3 5/8" |
| Material | Stainless Steel |
| Max. Outside Dia. | 1 63/64" |
| Max. Pressure | 2000 psi |
| Max. Pressure Range | 2000 psi to 2999 psi |
| Max. Working Pressure | 2000 psi |
| Max. Working Pressure @ 70 Deg. F | 2000 psi |
| Overall Length | 3 5/8" |
| Quick Coupler Type | Hydraulic Non Spill |
| Seal Material | Ethylene Propylene |
| Series | FS Series |
| Sleeve Material | Stainless Steel |
| System Of Measurement | Inch |
| Thread 1 Size | 3/4" |
| Thread 1 Type | NPSF |
| Thread Size | 3/4"-14 |
| Valve Type | Flush Face |
Shipping Info:
| Ship weight (kg) | 0.88 |
| Ship height (cm) | 5.04 |
| Ship length (cm) | 9.21 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Coupling Component | Hose Fitting Gender | Connection Type | Body Size | Coupling Locking Type | Thread Size | Hose Fitting Size | Max. Working Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FET-1502-24SF | Plug | Male | Flange Head | 1 1/2" | Thread To Connect | 9/16"-18 | Not Available | 5000 psi | €1,702.43 | |
 |
FET-1501-24SFP | Socket | Male | Flange Pad | 1 1/2" | Thread To Connect | 9/16"-18 | Not Available | 5000 psi | €1,676.06 | |
|
FET-1502-24SFP | Plug | Male | Flange Pad | 1 1/2" | Thread To Connect | 9/16"-18 | Not Available | 5000 psi | €1,596.03 | |
 |
FET-1502-24FO | Plug | Female | NPSM | 1 1/2" | Thread To Connect | 9/16"-18 | 1 7/8" | 6000 psi | €1,698.75 | |
|
FET-1501-24SF | Socket | Male | Flange Head | 1 1/2" | Thread To Connect | 9/16"-18 | Not Available | 5000 psi | €1,676.06 | |
 |
FET-1501-24FO | Socket | Female | NPSM | 1 1/2" | Thread To Connect | 9/16"-18 | 1 7/8" | 6000 psi | €1,627.63 | |
 |
FS-1001-16FP-E5 | Socket | Female | NPT | 1" | Push To Connect | 1"-11 1/2 | 1" | 2000 psi | €2,696.00 |
