PARKER FS-252-4FP-E47 Hydraulic Quick Connect Hose Coupling, 1/4 Inch Coupling Size, 316 Stainless Steel
Item: CT7GCMModel: FS-252-4FP-E47Cross Ref: 55KV54
7 In Stock
Ships within 2 days via
10.00% off
€1,476.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hose Coupling |
| Application | Hydraulic |
| Body Grade | Grade 316 |
| Body Material | Stainless Steel |
| Body Size | 1/4" |
| Configuration Type | Female NPSF |
| Connection Type | NPT |
| Coupler Finish | Chrome Plated |
| Coupler/nipple/shell | Nipple |
| Coupling Component | Plug |
| Coupling Locking Type | Push To Connect |
| Coupling Size | 1/4" |
| Finish, Coating | Chrome Plated |
| Finish/coating | Chrome Plated |
| Fitting Type | FNPT |
| Hose Fitting Gender | Female |
| Hose Fitting Size | 1/4" |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Length | 1.797" |
| Material | Stainless Steel |
| Max. Outside Dia. | 1.062" |
| Max. Pressure | 2000 psi |
| Max. Pressure Range | 2000 psi to 2999 psi |
| Max. Working Pressure @ 70 Deg. F | 2000 psi |
| Quick Coupler Type | Hydraulic Non Spill |
| Seal Material | Perfluoroelastomer |
| Series | FS Series |
| Sleeve Material | Stainless Steel |
| System Of Measurement | Inch |
| Thread 1 Size | 1/4" |
| Thread 1 Type | NPSF |
| Thread Size | 1/4"-18 |
| Valve Type | Flush Face |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.7 |
| Ship length (cm) | 4.56 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Connection Type | Body Size | Thread Size | Hose Fitting Size | Coupling Size | Seal Material | Max. Outside Dia. | Max. Flow Rate | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| FS-752-12FP | NPT | 3/4" | 3/4"-14 | 3/4" | 3/4" | Fluorocarbon | 1 63/64" | 105.99 LPM | €722.26 | |
| FS-1002-16FP | NPT | 1" | 1"-11 1/2 | 1" | 1" | - | 2 1/4" | 189.27 LPM | €876.46 | |
| FS-372-6FP | NPT | 3/8" | - | 3/8" | 3/8" | - | 1 5/64" | 22.71 LPM | €316.99 | |
| FS-502-8FP | NPT | 1/2" | 1/2"-14 | 1/2" | - | Fluorocarbon | - | - | €407.45 | |

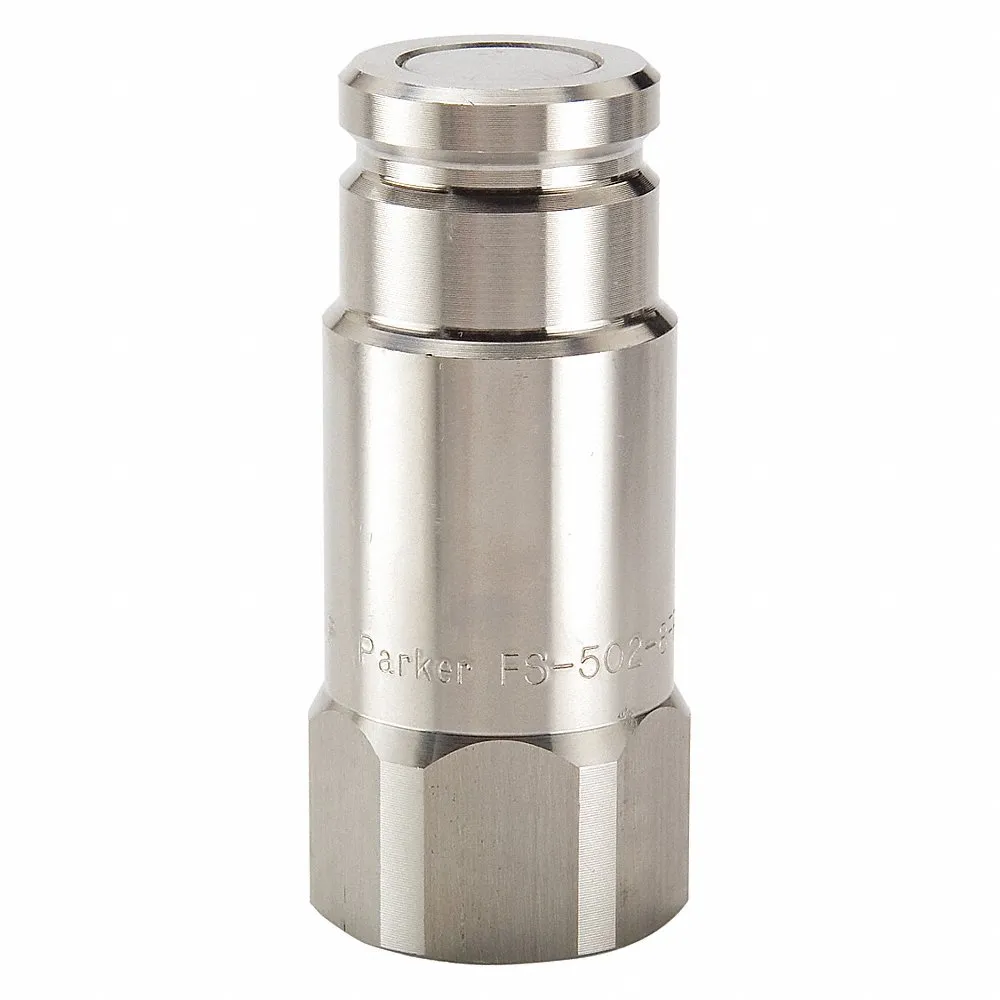

| FS-502-8FP-E5 | NPT | 1/2" | 1/2"-14 | - | 1/2" | Ethylene Propylene | 1 37/64" | 45.42 LPM | €498.92 | |
| FS-1002-16FP-E5 | NPT | 1" | 1"-11 1/2 | 1" | 1" | Ethylene Propylene | 2 1/4" | - | €1,122.89 | |
| FS-252-4FB | BSPF | 1/4" | 9/16"-18 | 1/4" | 1/4" | Fluorocarbon | - | - | €516.54 |
