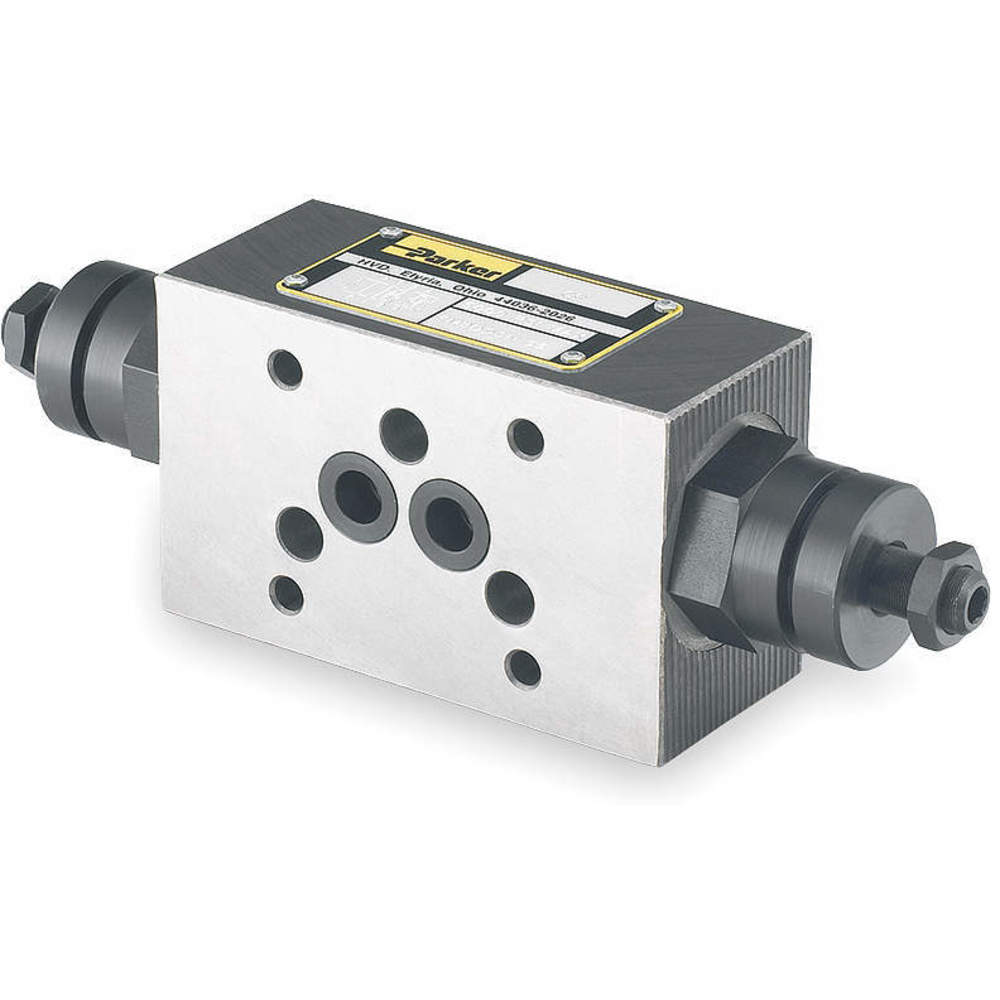

PARKER FM3AAKN Flow Control Valve Sandwich D05 30 GPM
Item: AJ2GZXModel: FM3AAKNCross Ref: 4DJX9
7 In Stock
Ships within 2 days via
10.00% off
€553.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flow Control Valve |
| Actuation Mechanism | Manual |
| Adjustment Mechanism | Knob |
| Adjustment Method | Knob |
| Body Material | Cast Iron |
| Controlled Ports | A Port |
| Flow Rate | 30 GPM |
| Flow Rate - Maximum | 20.1 GPM |
| For Use With | D05 Valves |
| Height | 1.42" |
| Includes Seals | Seals Included |
| Length | 9 6/25" |
| Max Flow (at 3000 Psi) | 30 GPM |
| Max. Flow | 30 GPM |
| Max. Pressure | 5000 psi |
| Maximum Pressure | 5075 psi |
| Nfpa Size | D05 |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | -4°F |
| Operation Type | A Port |
| Overall Height | 1.42" |
| Overall Length | 9.24" |
| Overall Width | 2 3/4" |
| Seal Material | Buna N |
| Series | FM Series |
| Subplate Pattern | NFPA D05 (Cetop 5, Ng 10) |
| Type | A Port |
| Valve Control | Throttle Check |
Shipping Info:
| Ship weight (kg) | 3.02 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 23.47 |
| Ship width (cm) | 3.61 |
| Country of Origin | US |
