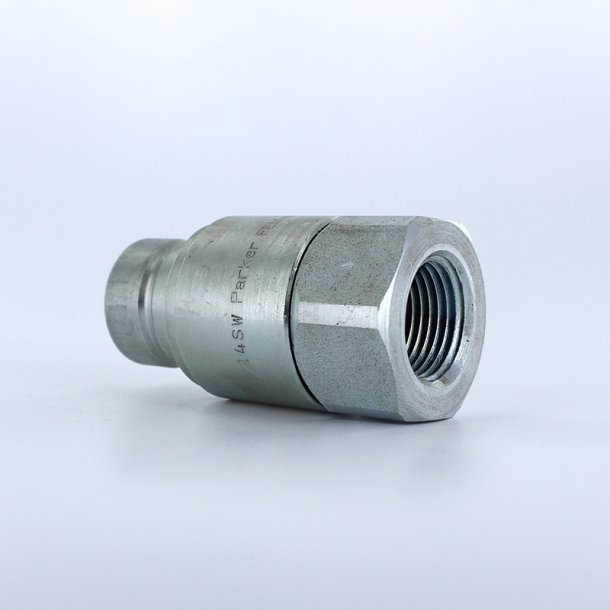

PARKER FEM-252-4FP Nipple, 1/4 Inch Size, Steel
Item: AC4XMDModel: FEM-252-4FPCross Ref: 31A811
7 In Stock
Ships within 2 days via
10.00% off
€110.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Nipple |
| Application | Hydraulic |
| Bearing Material | Stainless Steel |
| Bearings | Stainless |
| Body Material | Steel |
| Body Size | 1/4" |
| Configuration Type | Female NPSF |
| Connection Type | NPSF |
| Coupler Body Material | Steel |
| Coupler Finish | Zinc Plated |
| Coupler/nipple/shell | Nipple |
| Coupling Component | Plug |
| Coupling Locking Type | Push To Connect |
| Coupling Size | 1/4" |
| Finish, Coating | Clear Trivalent Chromate Plated |
| Finish/coating | Plain |
| Fitting Type | Female NPSF |
| For Use With | Iso 16028 Coupler |
| Grade | Grade 6 |
| Hansen Interchange | 6FFP25 |
| Hose Fitting Gender | Female |
| Hose Fitting Size | 1/4" |
| Includes Bearing | Yes |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Interchange Type | ISO 16028 |
| Length | 1.719" |
| Lock Mechanism | Ball |
| Material | Steel |
| Max. Flow Rate | 11.36 LPM |
| Max. Operating Pressure | 4568 psi |
| Max. Operating Temp. | 250 Deg F |
| Max. Operating Temp. | 250°F |
| Max. Outside Dia. | 31/32" |
| Max. Pressure | 4568 psi |
| Max. Pressure Range | 4000 psi to 4999 psi |
| Max. Working Pressure | 4568 psi |
| Max. Working Pressure @ 70 F | 4568 psi |
| Min. Operating Temp. | -40°F |
| Operating Temp. Range | -40°F to +250°F |
| Overall Length | 1 23/32" |
| Parker Interchange | FEM-252-4FP |
| Pipe Size Npt | 1/4" |
| Plating | Zinc |
| Port Size | 1/4"-18 |
| Quick Coupler Type | Hydraulic Non Spill |
| Safeway Interchange | FFE491-2 |
| Seal Material | Nitrile, Polyurethane |
| Series | FEM Series |
| Snap-tite Interchange | 74N4-4F |
| Style | Non Spill |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +250°F |
| Thread 1 Size | 1/4" |
| Thread Size | 1/4"-18 |
| Thread Type | Female |
| Type | Coupler Male Half |
| Valve Design | Non Spill |
| Valve Type | Non Spill |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.46 |
| Ship length (cm) | 4.37 |
| Ship width (cm) | 2.54 |
| HS code | 8481200050 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Pressure | Overall Length | Connection Type | Max. Working Pressure @ 70 F | Coupling Size | Finish/coating | Fitting Type | Valve Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
FEM-752-12FP | 3625 psi | 3 3/8" | NPSF | 3625 psi | 3/4" | Plain | Female NPSF | Non Spill | €213.93 | |
|
FEM-1002-16FP | 2900 psi | 3 27/32" | NPT | 2900 psi | 1" | Trivalent Chromium Zinc | FNPT | Flush Face | €357.82 | |
 |
FEM-372-6FP | - | - | - | - | - | - | - | - | €50.98 | |
 |
FEM-502-8FP | - | - | - | - | - | - | - | - | €72.76 |
