PARKER FEM-251-6FO-NL Quick Coupling, 1/4 Inch Size, Non-Spill
Item: AC4XLRModel: FEM-251-6FO-NLCross Ref: 31A799
7 In Stock
Ships within 2 days via
10.00% off
€209.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Coupler |
| Application | Hydraulic |
| Bearing Material | Stainless Steel |
| Bearing Type | Stainless |
| Body Material | Steel |
| Body Size | 1/4" |
| Configuration Type | Female SAE |
| Connection Type | UNF |
| Coupler Body Material | Steel |
| Coupler Finish | Zinc Plated |
| Coupler/nipple/shell | Coupler |
| Coupling Component | Socket |
| Coupling Locking Type | Push To Connect |
| Coupling Size | 9/16" |
| Finish/coating | Plain |
| Fitting Type | Female UNF |
| Flow Rate | 3 GPM |
| For Use With | Iso 16028 Nipple |
| Gender | Female |
| Grade | Grade 6 |
| Hansen Interchange | 6FFS56UN |
| Hose Fitting Gender | Female |
| Includes Bearing | Yes |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Length | 2 9/16" |
| Locking Mechanism | Ball |
| Locking Type | Locking Balls |
| Material | Steel |
| Max. Flow Rate | 11.36 LPM |
| Max. Operating Pressure | 4568 psi |
| Max. Operating Temp. | 250 Deg F |
| Max. Operating Temp. | 250°F |
| Max. Outside Dia. | 1 5/32" |
| Max. Pressure | 4568 psi |
| Max. Pressure Range | 4000 psi to 4999 psi |
| Max. Working Pressure | 4568 psi |
| Max. Working Pressure @ 70 F | 4568 psi |
| Min. Operating Temp. | -40°F |
| O-ring Thread (in.) | 9/16 |
| O-ring Thread Size | 0.5625" |
| Overall Length | 2 1/16" |
| Parker Interchange | FEM-251-6FO-NL |
| Plating | Zinc |
| Port Size | 9/16"-18 |
| Quick Coupler Type | Hydraulic Non Spill |
| Sae Straight Thread (in.) | 9/16 |
| Sae Straight Thread (in.) | 0.5625" |
| Seal Material | Nitrile |
| Series | FEM Series |
| Sleeve Material | Steel |
| Snap-tite Interchange | 74C4-6EF |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +250°F |
| Thread 1 Size | 6" |
| Thread 1 Type | SAE |
| Thread Size | 9/16"-18 |
| Thread Type | Female |
| Type | Coupler Body |
| Valve Design | Non Spill |
| Valve Type | Non Spill |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.94 |
| Ship length (cm) | 5.28 |
| Ship width (cm) | 2.79 |
| HS code | 8481200050 |
| Country of Origin | US |
Product Variants
| Model | Connection Type | Coupling Size | Valve Type | Body Size | Thread Type | Max. Working Pressure | Max. Pressure | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| FEM-251-4FP-NL | NPSF | 1/4" | Non Spill | 1/4" | Female | 4568 psi | 4568 psi | 1/4" | €241.80 | |
| FEM-621-12FO-NL | UNF | 5/8" | Non Spill | 5/8" | Female | 3625 psi | 3625 psi | - | €209.95 | |
| FEM-751-12FO-NL | UNF | 3/4" | Non Spill | 3/4" | Female | 3625 psi | 3625 psi | - | €218.42 | |
| FEM-751-12FP-NL | NPSF | 3/4" | Non Spill | 3/4" | Female | 3625 psi | 3625 psi | 3/4" | €212.07 | |
| FEM-1001-16FO-NL | NPSM | 1" | Flush Face | 1" | Female | 2900 psi | - | - | €682.00 | |
| FEM-1001-16FP-NL | NPT | 1" | Flush Face | 1" | Female | 2900 psi | - | - | €703.13 | |

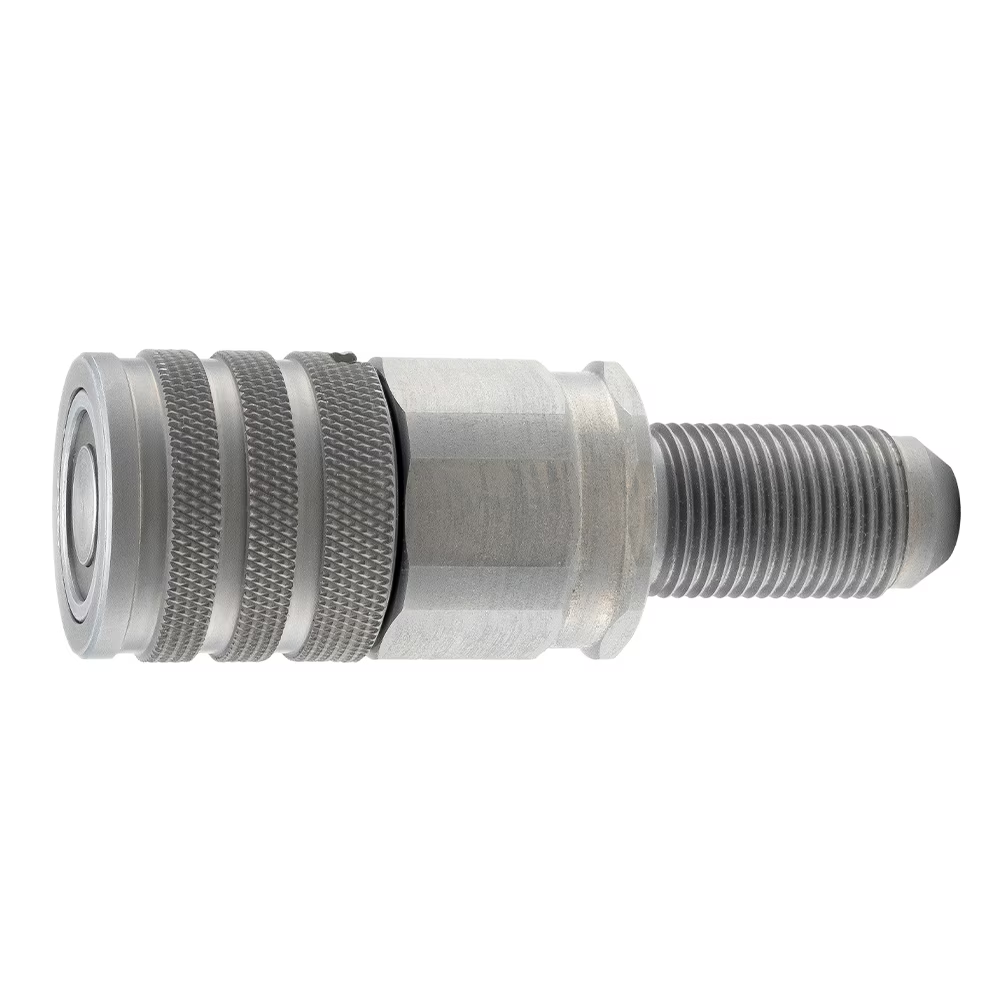

| FEM-501-10BMS | UNS | 1/2" | Flush Face | 1/2" | Male Bulkhead Face Seal | - | - | - | €203.97 |
