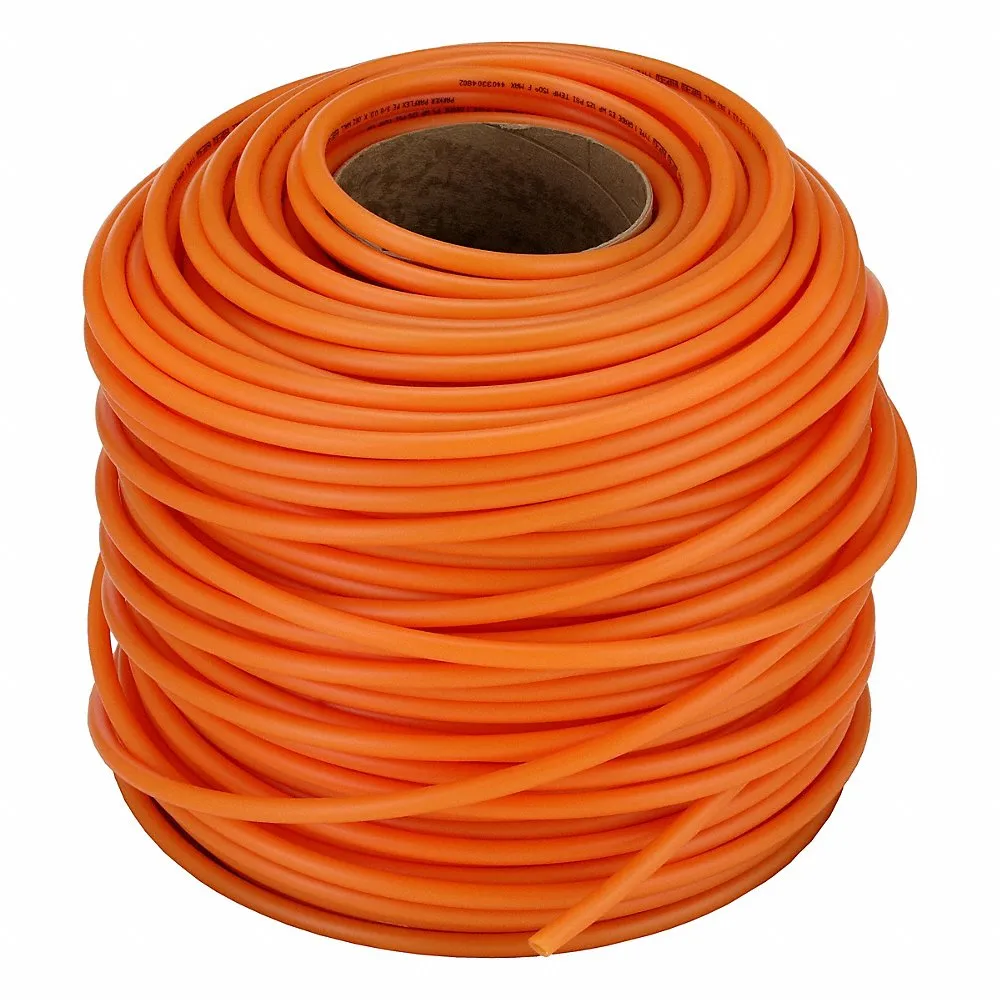

PARKER E-64-O-0500 Tubing, Polyethylene, Orange, 3/8 Inch OD, 1/4 Inch ID, 500 ft Lg
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€672.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tubing |
| Application | Pneumatic |
| Autoclavable | No |
| Bend Radius | 1 1/4" |
| Burst Pressure | 500 psi |
| Clarity | Opaque |
| Coil Weight | 12.5 lbs. |
| Color | Orange |
| Compatible Tube Wall Thickness | 1/16" |
| Distinct Properties | Instrument Grade |
| Features | Made From 100% Virgin Resin Material |
| Fitting Compatibility | Compression, Push-To-Connect |
| Flexibility | Flexible |
| Flow Application | Beverage Dispensers, Chemical Transfer, Low Pressure Pneumatics, Potable Water |
| For Environment | Chemical |
| For Fluid Type | Air, Potable Water, Water |
| For Location | Indoor |
| For Potable Water Use | Yes |
| Hardness | Shore D 45 |
| Industry Application | Pneumatics |
| Inside Diameter | 1/4" |
| Jacket Color | No Jacket |
| Material | Polyethylene |
| Material Trade Name | Not Applicable |
| Max. Pressure | 125 psi |
| Max. Pressure Range | 100 psi to 249 psi |
| Maximum Operating Pressure | 125 psi @ 150°F |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | -80°F |
| Outside Diameter | 3/8" |
| Overall Length | 500 ft. |
| Reinforcement | Not Reinforced |
| Resistance Properties | Crack Resistant |
| Series | E Series |
| Stripe Color | No Stripe |
| System Of Measurement | Inch |
| Tube Form | Coil |
| Wall Thickness | 0.062" |
| Weight Per Foot | 0.025 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 6.99 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
