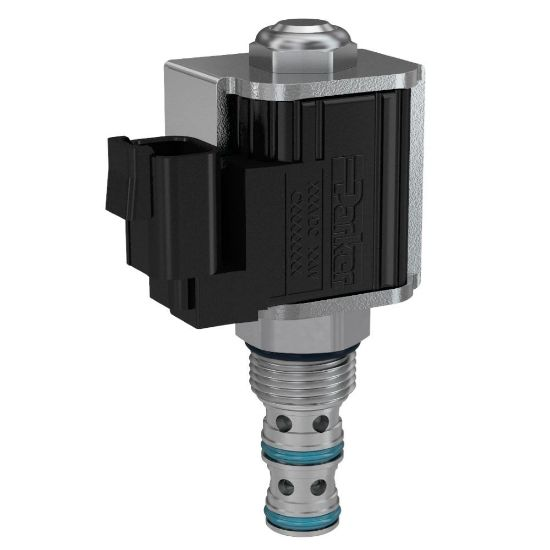

PARKER DSL103A Valve Solenoid C10-3
Item: AD9PYHModel: DSL103ACross Ref: 4UA88
7 In Stock
Ships within 2 days via
10.00% off
€160.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Threaded Cartridge Valve |
| Action Type | Direct Acting |
| Actuation Mechanism | Electrical |
| Adjustment Method | Not Applicable |
| Body Finish | Zinc Plated |
| Body Material | Steel |
| Cartridge Material | Steel |
| Cartridge Valve Item | Cartridge Valve |
| Center Position | Not Applicable |
| Common Cavity Size | 10 |
| Filter Media | Not Applicable |
| Filter Rating | Not Applicable |
| Flow Rate | 4.5 GPM |
| Fluid Service | Mineral Oil, Synthetic Oil |
| For Media | Mineral Oil, Synthetic Oil |
| Includes Filter | Filter Not Included |
| Includes Seals | Seals Included |
| Leakage | 120 Cc/Min. (7.5 In3/Min.) At 250 Bar (3600 psi) |
| Max. Flow | 4.5 GPM |
| Max. Flow Gpm | 4.5 |
| Max. Pressure | 3600 psi |
| Maximum Fluid Viscosity | 2000 SUS |
| Maximum Inlet Pressure | 3600 psi |
| Maximum Operating Temperature | 200°F |
| Maximum Pressure Setting | 3600 psi |
| Minimum Operating Temperature | -35°F |
| Mounting | Block Mounted |
| Number Of Positions | 2 |
| Number Of Ways | 3 |
| Operating Temp. Range | -45°C to +93.3°C |
| Overall Height | 2.74" |
| Overall Length | 4.54" |
| Overall Width | 1" |
| Port | None Cartridge Only |
| Port Connection Gender | Not Applicable |
| Port Connection Size | Not Applicable |
| Port Connection Type | Not Applicable |
| Port-to-port Length | Not Applicable |
| Position | 2 |
| Seal Type | D Ring |
| Series | DSL103 Series |
| Valve Action | Normally Closed |
| Valve Body | B10 3 |
| Valve Cavity Size | C10 3 |
| Valve Configuration | 3 Way |
| Valve Control | Directional Control |
| Valve Style | 3 Way Or 4 Way Spool |
| Valve Type | Spool Type Solenoidvalve |
| Venting | Not Applicable |
| Voltage | 115V AC/12/24V DC |
| Way | 3 |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 11.53 |
| Ship width (cm) | 6.96 |
| HS code | 8481801095 |
| Country of Origin | MX |
Product Details:
- 3-way spool valve ideal for controlling circuit selectors and unidirectional motors, as well as lowering or raising single-acting cylinders
- Capable of handling high-flow rates with minimal space requirements
- One-piece encapsulated coil with reduced amperage draw and zinc-plated external parts for preventing oxidation reactions
