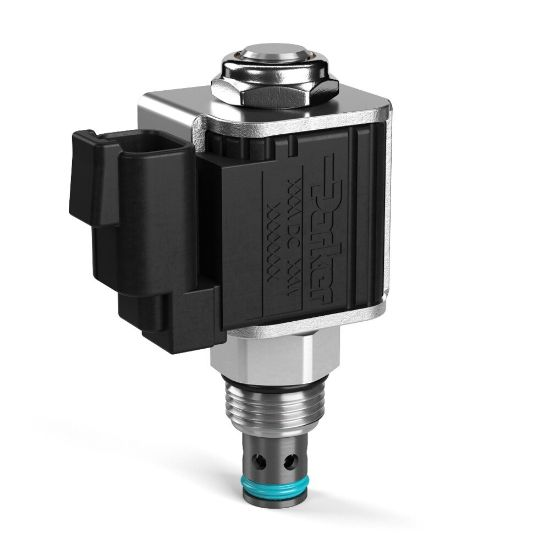

PARKER DSL081C 2 Way Poppet Type Solenoid Valve, 8 gpm
Item: AD7DBKModel: DSL081CCross Ref: 4DMN3
7 In Stock
Ships within 2 days via
10.00% off
€110.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Actuation Mechanism | Electrical |
| Adjustment Method | Not Applicable |
| Application | Closed Port 2 To Port 1, Controls Flow, Energized Open |
| Body Finish | Zinc Plated |
| Body Material | Steel |
| Cartridge Material | Steel |
| Cartridge Valve Item | Cartridge Valve |
| Coil Type | 1/2" Super Coil |
| Common Cavity Size | 08 |
| Control Direction | One-Way |
| Filter Media | Not Applicable |
| Filter Rating | Not Applicable |
| Flow Rate | 8 GPM |
| Fluid Service | Mineral Oil, Synthetic Oil |
| For Media | Mineral Oil, Synthetic Oil |
| Includes Filter | Filter Not Included |
| Includes Seals | Seals Included |
| Installation Torque | 23-27 Lbs-ft |
| Leakage | 5 Drops/Min. (.33 Cc/Min.) @ 75% Of Crack Pressure |
| Material | Steel |
| Max. Flow | 8 GPM |
| Max. Flow Gpm | 8 |
| Max. Inlet Pressure | 3600 psi |
| Max. Pressure | 3600 psi |
| Maximum Fluid Viscosity | 2000 SUS |
| Maximum Operating Temperature | 200°F |
| Maximum Pressure Setting | 3600 psi |
| Minimum Operating Temperature | -35°F |
| Mounting | Block Mounted |
| Number Of Positions | 2 |
| Number Of Ways | 2 |
| Operating Temp. | -45°C to +132°C |
| Operating Temp. Range | -45°C to +93.3°C |
| Overall Height | 2 2/5" |
| Overall Length | 3.46" |
| Overall Width | 7/8" |
| Port | None Cartridge Only |
| Port Connection Gender | Not Applicable |
| Port Connection Size | Not Applicable |
| Port Connection Type | Not Applicable |
| Port-to-port Length | Not Applicable |
| Position | 2 |
| Rated Flow Rate | 8 GPM |
| Response Time | 50 ms |
| Seal | D Ring |
| Series | DSL081 Series |
| Valve Action | Normally Closed |
| Valve Body | B08 2 |
| Valve Cavity Size | C08 2 |
| Valve Configuration | 2 Way |
| Valve Control | Directional Control |
| Valve Material | Steel |
| Valve Style | Normally Closed Metered Reverse Flow |
| Valve Type | Solenoid Valve |
| Venting | Not Applicable |
| Voltage | 115V AC/12/24V DC |
| Way | 2 |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.22 |
| Ship length (cm) | 8.79 |
| Ship width (cm) | 6.1 |
| HS code | 8481801050 |
| Country of Origin | MX |
Product Details:
- Valve Cavity (C08-2)
Product Variants
| Product | Model | Operating Temp. Range | Valve Type | Body Material | Way | Voltage | Seal Material | Valve Configuration | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSL081N | -45°C to +93.3°C | Solenoid Valve | Steel | 2 | 115V AC/12/24V DC | - | 2 Way | 3600 psi | €152.13 | |
 |
DSL081NR | -45°C to +93.3°C | Poppet Type | - | - | - | - | 2 Way | 3600 psi | €98.93 | RFQ
|
 |
DSL081CHRV | -31.7°C to +121.1°C | Poppet Type | Steel | - | - | Fluorocarbon | 2 Way | 3600 psi | €110.95 | |
|
DSL081CR | - | - | - | - | - | - | - | - | €92.92 | |
|
DSL081CRS | - | - | - | - | - | - | - | - | €104.38 | |
|
DSL081CRT | - | - | - | - | - | - | - | - | €165.89 | |
|
DSL081NRM | - | - | - | - | - | - | - | - | €144.68 |
