PARKER DC-370-FOFO-5 Check Valve, 20 GPM
Item: CT7CYQModel: DC-370-FOFO-5Cross Ref: 53VC20
7 In Stock
Ships within 2 days via
10.00% off
€167.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Check Valve |
| Actuation Mechanism | Manual |
| Body Material | Steel |
| Control Direction | One-Way |
| Cracking Pressure | 5 psi |
| Height | 22/25" |
| Includes Seals | Seals Included |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 9/16" |
| Inlet Connection Type | SAE O Ring Boss |
| Inlet Size | 9/16"-18 |
| Length | 2 3/4" |
| Max. Flow Rate | 20 GPM |
| Max. Pressure | 3000 psi |
| Mounting | Screw In |
| Operating Temperature - Maximum | 250°F |
| Operating Temperature - Minimum | -40°F |
| Outlet Connection Gender | Female |
| Outlet Connection Size | 9/16" |
| Outlet Connection Type | SAE O Ring Boss |
| Overall Height | 22/25" |
| Overall Length | 2.75" |
| Overall Width | 22/25" |
| Port Connections | Inlet, Outlet |
| Port-to-port Length | 2 3/4" |
| Reverse Free Flow | Reverse Free Flow |
| Seal Material | Metal |
| Series | Dc Series |
| Valve Control | Directional Control |
| Valve Type | Check |
| Width | 22/25" |
| Wrench Flat Size | 7/8" |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 2.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Pressure | Valve Type | Body Material | Max. Flow Rate | Inlet Connection | Outlet Connection | Reverse Free Flow | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CV-1000-MFMF-5 | 3000 psi | Check | Steel | 100 GPM | - | - | Reverse Free Flow | Metal | €480.39 | |
|
DC-1000-FOFO-5 | 3000 psi | Check | Steel | - | - | - | Reverse Free Flow | Metal | €279.39 | |
 |
CV-1000-MSMS-5 | 3000 psi | Check | Steel | - | - | - | Reverse Free Flow | Elastomeric, Metal | €477.74 | |
|
CV-370-MFMF-5 | 3000 psi | Check | Steel | - | - | - | Reverse Free Flow | Metal | €282.59 | |
 |

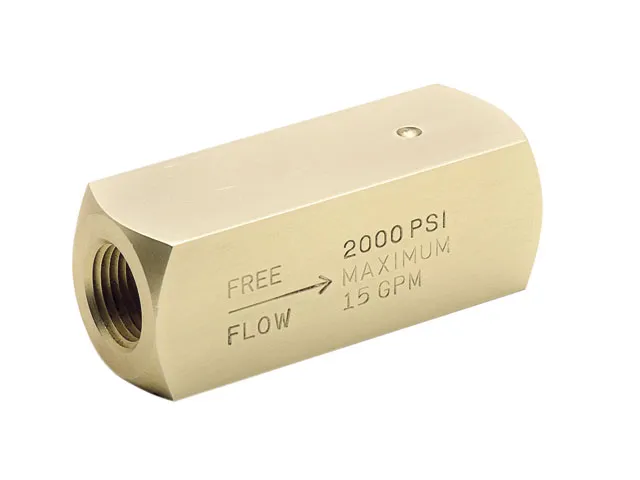

C800B | 2000 psi | Check Valve | Brass | - | - | - | Reverse Free Flow | Nitrile | €127.90 | |
|
C800S | 5000 psi | Check Valve | Steel | - | - | - | Reverse Free Flow | Nitrile | €132.52 | |
|
DC-1250-5 | 3000 psi | Check | Steel | 170 GPM | - | - | Reverse Free Flow | Metal | €455.00 |
