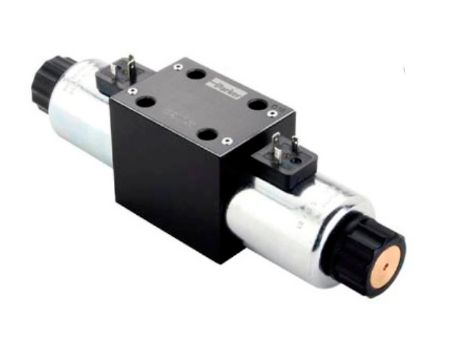

PARKER D3W020DNJW Solenoid Valve, 4 Way, 2-Position 4/2 Directional Control Hydraulic
Get it by Thursday, Aug 20
€1,348.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Solenoid Valve |
| Ambient Air Temp. For Operation | -25°C to +60°C |
| Body Material | Cast Iron |
| Connection Type | NFPA Pattern D05 3-Pin DIN 43650 Connector (Delivered Without Plg.) |
| Control Voltage (dc) | 24V DC |
| Degree Of Protection | IP65 |
| Design | Manual Override Circuit Diagram 020D For Oil Media |
| Flow Rate | 150 LPM |
| Function | Hydraulic Direct-Acting Double Solenoid Valve |
| Main Function | Valve (Electrically Actuated) |
| Max. Operating Pressure | 5000 psi |
| Media Temp. | -25°C to +70°C |
| Mounting Mode | Mounting On Sub Plate Porting Pattern According to NFPA D03 CETOP 03 NG06 |
| Power Consumption | 36 W |
| Seal Material | NBR |
| Tank Pressure | 1500 psi |
| Valve Function | 4-Way 2-Positions (4/2) Directional Control Mech. Detent Dual Operator Bistable |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Power Consumption | Max. Operating Pressure | Flow Rate | Tank Pressure | Control Voltage (dc) | Price | |
|---|---|---|---|---|---|---|---|---|
 |
D3W020DNYC | 32 W | 5000 psi | 150 LPM | 1500 psi | - | €1,348.87 |
