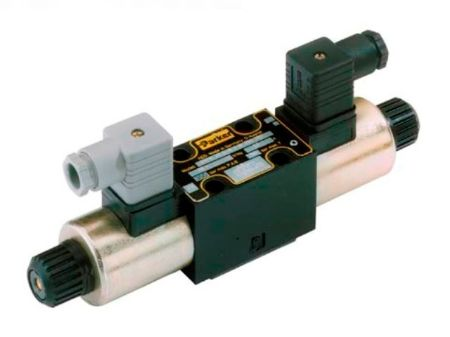

PARKER D1VW020HNJC Solenoid Valve, 4 Way, 2-Position 4/2 Directional Control Hydraulic
Get it by Thursday, Aug 20
€724.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Solenoid Valve |
| Ambient Air Temp. For Operation | -25°C to +60°C |
| Connection Type | NFPA Pattern D03 Wiring Chamber With 1/2" NPT Cond. Opening |
| Control Voltage (dc) | 24V DC |
| Degree Of Protection | IP67 NEMA 4 |
| Design | Manual Override Circuit Diagram "020H" Class F Coil For Oil Media |
| Flow Rate | 78 LPM |
| Function | Hydraulic Direct-Acting Single Solenoid Valve |
| Main Function | Valve (Electrically Actuated) |
| Material | Ductile Iron Body NBR Seal |
| Max. Operating Pressure | 5000 psi |
| Media Temp. | -25°C to +70°C |
| Mounting Mode | Mounting On Sub Plate |
| Power Consumption | 30 W |
| Tank Pressure | 3000 psi |
| Valve Function | 4-Way 2-Positions (4/2) Directional Control Mech. Spring Return |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Material | Tank Pressure | Media Temp. | Power Consumption | Flow Rate | Max. Flow Rate | Max. Flow @ 3000 Psi | Solenoid Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| D1VW020BNJC | - | - | - | - | - | - | 18 GPM | 24V DC | €710.19 | |
| D1VW020BNJG5 | Ductile Iron Bodynbr Seal | 3000 psi | -13°F to +158°F | 30 W | - | 78 LPM | - | - | €727.06 | |
| D1VW020BNYC | Ductile Iron Bodynbr Seal | 1500 psi | -13°F to +158°F | 30 W | - | 80 LPM | - | - | €710.19 | |
| D1VW020BNYWF | Ductile Iron Bodynbr Seal | 1500 psi | -13°F to +158°F | 23 W | - | 45 LPM | - | - | €659.54 | |
| D1VW020HNJW | Ductile Iron Bodynbr Seal | 3000 psi | -4°F to +140°F | 30 W | - | 78 LPM | - | - | €659.54 | |
| D1VW020HNYCF | Ductile Iron Bodynbr Seal | 1500 psi | -13°F to +158°F | 23 W | - | 45 LPM | - | - | €710.19 | |
| D1VW020HNYWF | - | - | - | - | - | - | 12 GPM | 120/60-110/50V AC | €659.54 |
