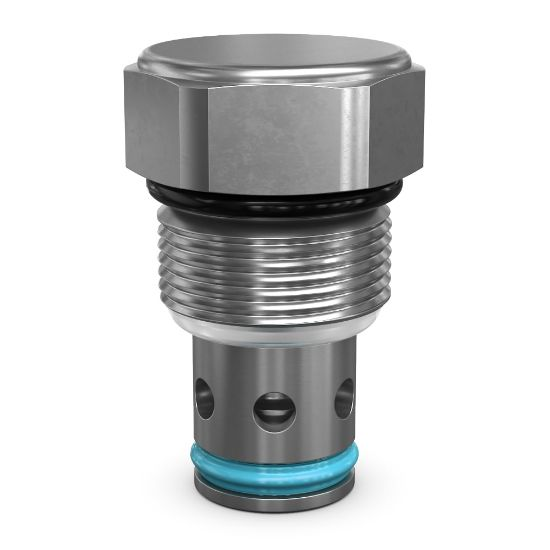

PARKER CVH103P Check Valve, 16 Gal/min Flow rate
Item: AD9PYAModel: CVH103PCross Ref: 4UA81
7 In Stock
Ships within 2 days via
10.00% off
€50.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Check Valve |
| Actuation Mechanism | Pressure |
| Adjustment Method | Not Applicable |
| Application | Used To Isolate Portions Of A Hydraulic Circuit, Or To Provide A Free Flow Path Around A Restrictive Valve |
| Body Finish | Zinc Plated |
| Body Material | Steel |
| Cartridge Material | Steel |
| Cartridge Valve Item | Cartridge Valve |
| Common Cavity Configuration | 2 Way |
| Common Cavity Size | 10 |
| Control Direction | One-Way |
| Cracking Pressure | 5 psi |
| Filter Media | Not Applicable |
| Filter Rating | Not Applicable |
| Flow Rate | 16 GPM |
| Fluid Service | Mineral Oil, Synthetic Oil |
| For Media | Mineral Oil, Synthetic Oil |
| Includes Filter | Filter Not Included |
| Includes Seals | Seals Included |
| Installation Torque | 51-55 Lbs-ft |
| Leakage | 2 Drops/Min. (.13 Cc/Min.) At 350 Bar (5000 psi) |
| Material | Steel |
| Max. Flow Gpm | 16 |
| Max. Flow Rate | 16 GPM |
| Max. Inlet Pressure | 5000 psi |
| Max. Pressure | 5000 psi |
| Maximum Fluid Viscosity | 2000 SUS |
| Maximum Operating Temperature | 200°F |
| Maximum Pressure Setting | 5000 psi |
| Minimum Operating Temperature | -35°F |
| Mounting | Block Mounted |
| Number Of Positions | 2 |
| Number Of Ways | 1 |
| Operating Temp. | -45°C to +132°C |
| Operating Temp. Range | -45°C to +93.3°C |
| Overall Height | 11/25" |
| Overall Length | 1.69" |
| Overall Width | 1" |
| Port | None Cartridge Only |
| Port Connection Gender | Not Applicable |
| Port Connection Size | Not Applicable |
| Port Connection Type | Not Applicable |
| Port-to-port Length | Not Applicable |
| Rated Flow Rate | 16 GPM |
| Return Mechanism | Spring |
| Seal Material | Polyurethane |
| Seal Type | D Ring |
| Series | CVH103P Series |
| Type | Check |
| Valve Action | Normally Closed |
| Valve Body | B10 2 |
| Valve Cavity Size | C10 2 |
| Valve Control | Directional Control |
| Valve Material | Steel |
| Valve Type | Check Valve |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4.29 |
| Ship width (cm) | 1.12 |
| HS code | 8481801095 |
| Country of Origin | MX |
Product Details:
- Threaded cartridge valve designed for isolating hydraulic circuit systems; ideal for instrumentation applications
- Features zinc-plated construction for withstanding abrasive liquids and a spherical poppet for secure and leak-proof operation
- Equipped with a D ring, thereby eliminating the additional requirement for back-up rings
- Dual sense paths ensure reduced differential pressure while an operation
