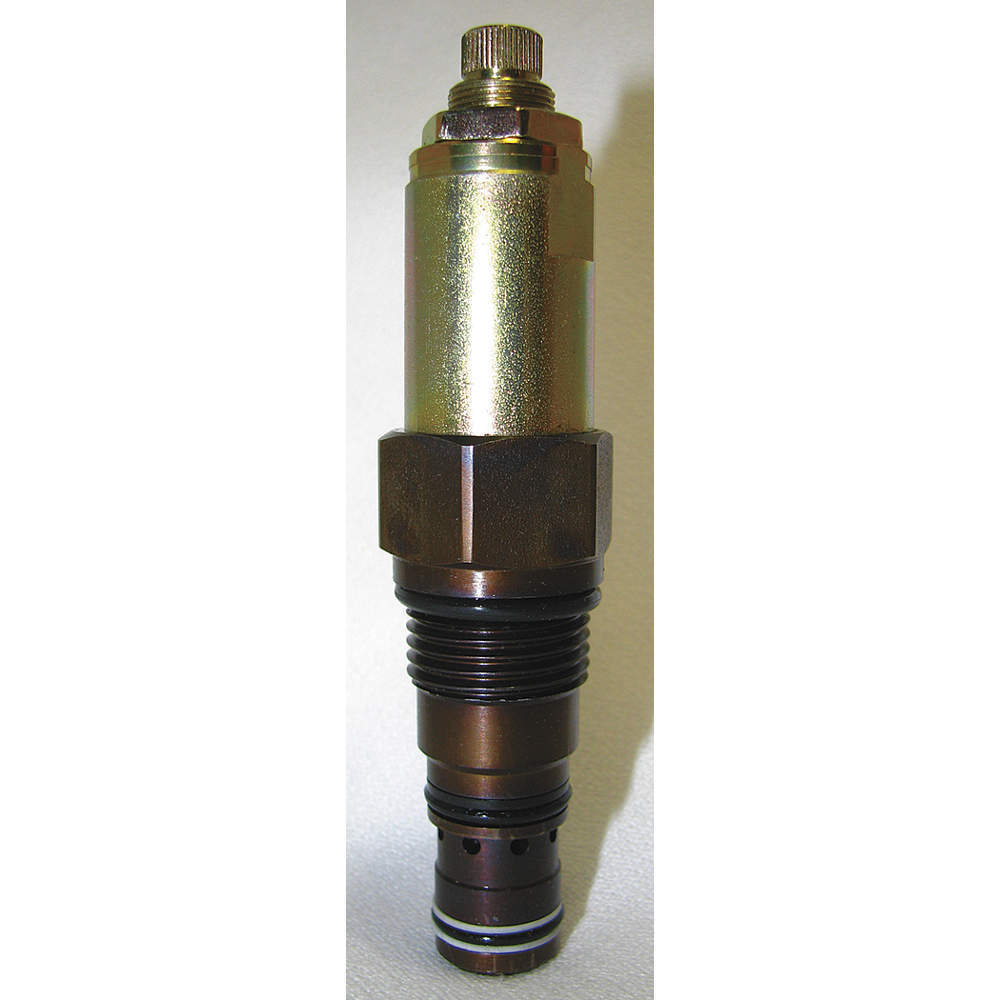

PARKER CB101AS30 Standard Pilot Assisted Load Control Valve, 12 gpm
Item: AD7DARModel: CB101AS30Cross Ref: 4DMK4
7 In Stock
Ships within 2 days via
10.00% off
€260.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Control Valve |
| Actuation Mechanism | Pressure |
| Adjustment Method | Screw |
| Adjustment Type | Screw Adjustment |
| Body Finish | Zinc Plated |
| Body Material | Steel |
| Cartridge Material | Steel |
| Cartridge Valve Item | Cartridge Valve |
| Filter Media | Not Applicable |
| Filter Rating | Not Applicable |
| Flow Rate | 12 GPM |
| Fluid Service | Mineral Oil, Synthetic Oil |
| For Media | Mineral Oil, Synthetic Oil |
| Includes Filter | Filter Not Included |
| Includes Seals | Seals Included |
| Installation Torque | 16 Lbs-ft |
| Leakage | 0.33 cc/min. |
| Max. Flow | 12 GPM |
| Max. Flow Gpm | 12 |
| Max. Inlet Pressure | 5500 psi |
| Max. Pressure | 5000 psi |
| Maximum Fluid Viscosity | 2000 SUS |
| Maximum Inlet Pressure | 5000 psi |
| Maximum Operating Temperature | 250°F |
| Maximum Pressure Setting | 5000 psi |
| Minimum Operating Temperature | -30°F |
| Mounting | Block Mounted |
| Number Of Positions | 2 |
| Number Of Ways | 2 |
| Operating Temp. | -34°C to +121°C |
| Overall Height | 2.59" |
| Overall Length | 4.48" |
| Overall Width | 1" |
| Port Connection Gender | Not Applicable |
| Port Connection Size | Not Applicable |
| Port Connection Type | Not Applicable |
| Port-to-port Length | Not Applicable |
| Pressure | 2400 psi to 5000 psi |
| Rated Flow Rate | 12 Gpm |
| Return Mechanism | Spring |
| Seal Material | Nitrile |
| Sensitivity | 307 Per Turn Psi |
| Valve Action | Normally Closed |
| Valve Cavity Size | C10 3 |
| Valve Control | Directional Control |
| Valve Material | Steel |
| Valve Type | Counterbalance Cartridge Valve |
| Way | 3 |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 11.38 |
| Ship width (cm) | 6.58 |
| HS code | 8481801050 |
| Country of Origin | MX |
Product Details:
- Valve Cavity (C10-3)
