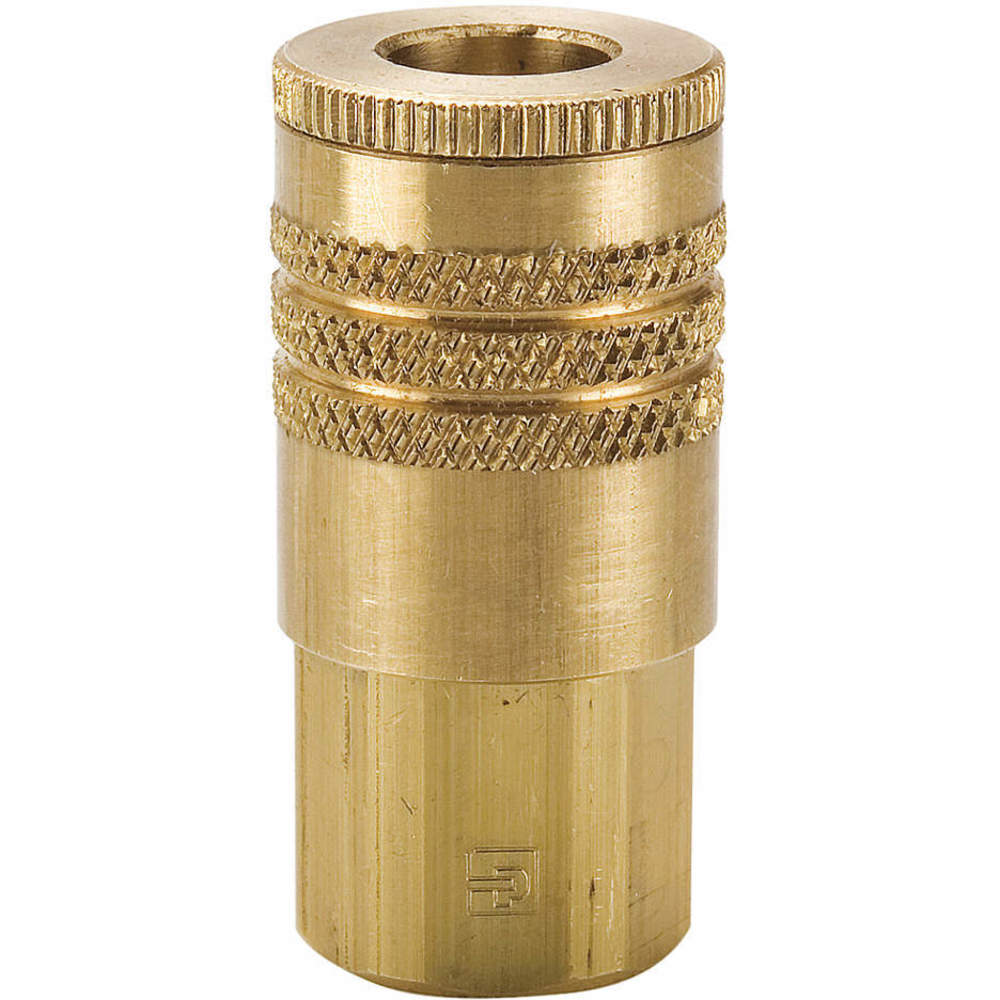

PARKER B53E Quick Coupler, 3/8 Inch Thread Size, 300 Psi, Brass
Item: AC4VTUModel: B53ECross Ref: 30N170
7 In Stock
Ships within 2 days via
10.00% off
€44.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Coupler |
| Application | Pneumatic |
| Barbed | No |
| Body Material | Brass |
| Body Size | 1/4" |
| Configuration Type | Female NPTF |
| Connection Type | NPT |
| Coupler/nipple/shell | Coupler |
| Coupling Component | Socket |
| Coupling Locking Type | Sleeve |
| Finish, Coating | Plain |
| Fitting Type | FNPT |
| Hose Connection Type | FNPT |
| Hose Fitting Gender | Female |
| Hose Fitting Size | 3/8" |
| Includes Valve | Yes |
| Interchange Type | ARO |
| Length | 1 15/16" |
| Lock Type | Sleeve |
| Locking Type - Quick Connect Air Couplings | Sleeve |
| Material | Brass |
| Max. Flow Rate | 707.92 LPM |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 250 Deg F |
| Max. Operating Temp. | 250°F |
| Max. Outside Dia. | 15/16" |
| Max. Pressure | 300 psi |
| Max. Pressure Range | 250 psi to 499 psi |
| Max. Working Pressure | 300 psi |
| Max. Working Pressure @ 70 F | 300 psi |
| Min. Operating Temp. | -40°F |
| Overall Length | 1 15/16" |
| Pipe Size | 3/8" |
| Quick Connect Air Coupling Locking Type | Sleeve |
| Quick Connect Air Coupling Material | Brass |
| Quick Connect Air Coupling Seals | Nitrile |
| Quick Coupler Type | Pneumatic Manual Connect |
| Seal | Nitrile |
| Seal Material | Nitrile |
| Seals | Nitrile |
| Seals - Quick Connect Air Couplings | Nitrile |
| Series | 50 Series |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +250°F |
| Thread 1 Size | 3/8" |
| Thread Size | 3/8"-18 |
| Thread Type | Female |
| Valve Type | Tubular |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.38 |
| Ship length (cm) | 4.92 |
| Ship width (cm) | 2.03 |
| HS code | 8481801095 |
| Country of Origin | US |
Product Variants
| Product | Model | Hose Fitting Size | Thread Size | Max. Flow Rate | Max. Outside Dia. | Coupling Component | Hose Fitting Gender | Connection Type | Body Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
B53 | 1/4" | 1/4"-18 | 25 CFM | 7/8" | Socket | Female | NPT | 1/4" | €39.04 |
