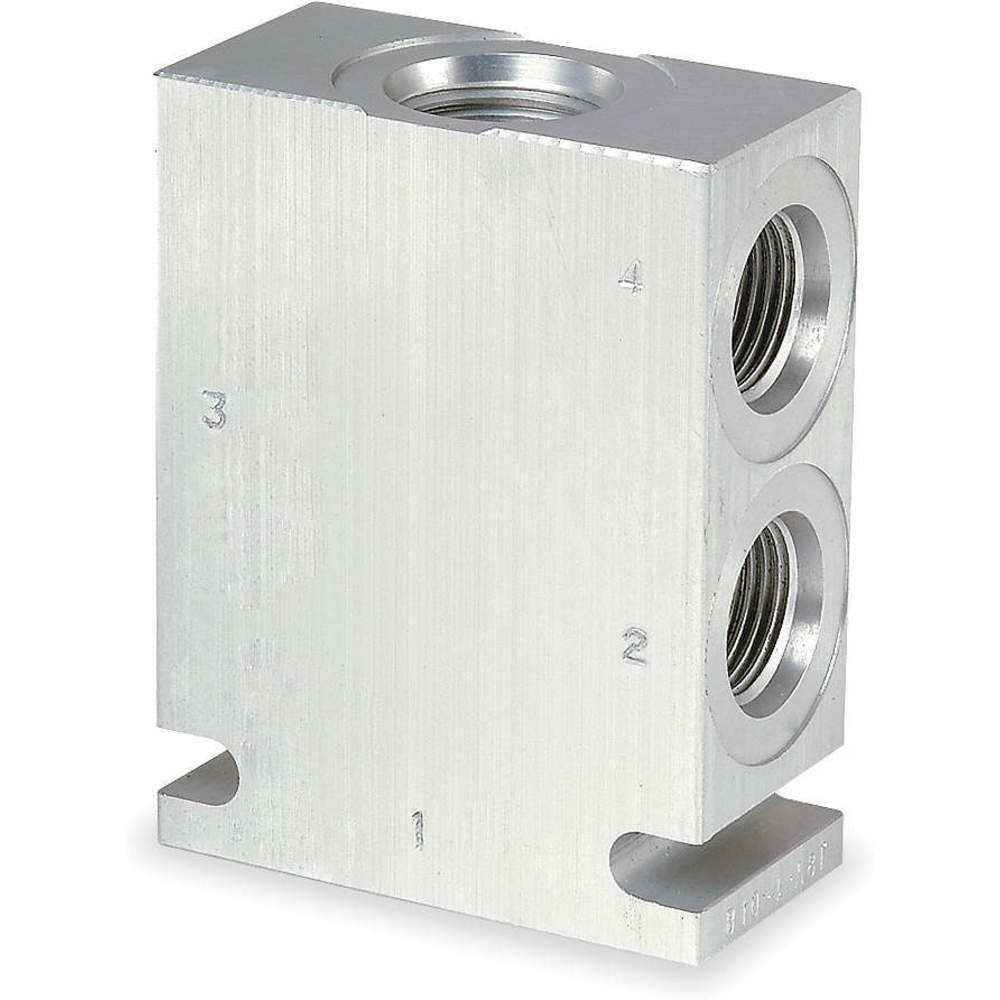

PARKER B10-4-A8T Standard Body, 1/2 Inch Port Size, Aluminium
Item: AD9PYPModel: B10-4-A8TCross Ref: 4UA97
7 In Stock
Ships within 2 days via
10.00% off
€176.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Body |
| Body Material | Aluminum |
| Common Cavity Configuration | 4 Way |
| Common Cavity Size | 10 |
| Compatible With Grainger Part Number | 4UA89, 4UA90, 4UA91 |
| For Use With | Threaded Cartridge Valves |
| Height | 3 1/4" |
| Length | 1 1/4" |
| Material | Aluminum |
| Max. Operating Pressure | 3000 psi |
| Maximum Pressure | 3000 psi |
| Number Of Positions | 4 Way |
| Number Of Positions | 4 |
| Overall Height | 3 1/4" |
| Overall Length | 2 1/2" |
| Overall Width | 1 1/4" |
| Port Connection Dash Size | -8 |
| Port Connection Gender | Female |
| Port Connection Size | 3/4"-16 |
| Port Connection Type | SAE 45° Flare |
| Port Size | 8" |
| Port Type | SAE |
| Sae Straight Thread (in.) | 3/4-16 |
| Series | B10 Series |
| Valve Body | B10 4 |
| Valve Cavity Size | C10 4 |
| Valve Type | Cartridge Valve Body |
| Width | 2 1/2" |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 8.26 |
| HS code | 8481909060 |
| Country of Origin | US |
Product Details:
- (F)NPT Ports (In.) (SAE-8)
- Fits Valve Number (4UA89, 4UA90, 4UA91)
