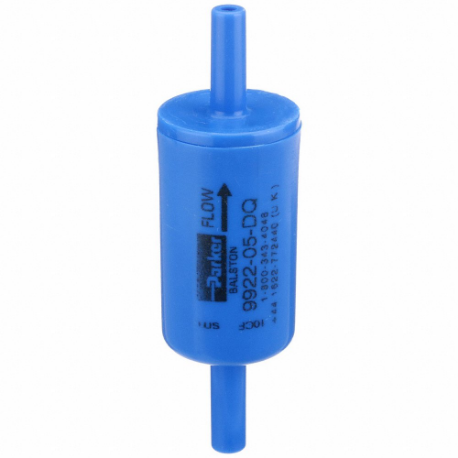

PARKER 9922-05-DQ Compressed Air Filter, Polyvinylidene Fluoride, 1/4 Inch Tube, 0.01 Micron, 93% Efficiency
Item: CT7DPYModel: 9922-05-DQCross Ref: 4HEV1
7 In Stock
Ships within 2 days via
10.00% off
€604.37 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compressed Air Filter |
| Air Inlet Size | 1/4" |
| Air Inlet Type | Tube |
| Air Outlet Size | 1/4" |
| Air Outlet Type | Tube |
| Body Material | Polyvinylidene Fluoride |
| Bowl Material | Polyvinylidene Fluoride |
| Bowl Size | 0.003 oz. |
| Disposable | Yes |
| Element Material | Microfiber |
| Filter Bowl Capacity | 0.01L |
| Filter Bowl Material | Polyvinylidene Fluoride |
| Filter Efficiency | 93% |
| Filter Element Material | Microfiber |
| Filter Media | Microfiber |
| Filter Rating | 0.01 µm |
| For Fluid Type | Gas, Liquid |
| For Substance Type | Liquid, Gas |
| Height | 3 7/25" |
| Length | 3 3/16" |
| Max. Flow @ 100 Psi | 12 SCFM |
| Max. Flow Rate | 10.1 CFM |
| Max. Flow Rate @ 100 Psi | 12 SCFM |
| Max. Incoming Pressure | 125 psi |
| Max. Operating Pressure | 125 psi |
| Max. Operating Temp. | 275°F |
| Max. Pressure | 125 psi |
| Maximum Flow Rate | 8.3 CFM |
| Min. Flow Rate | 0.2 CFM |
| Min. Operating Pressure | 2 psi |
| Min. Operating Temp. | -40°F |
| Minimum Flow Rate | 0.2 CFM |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Outside Dia. | 1" |
| Overall Length | 3 3/16" |
| Pressure Drop | 1 psi |
| Size - Air Treatment | Subcompact |
| Width | 1" |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 8.33 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Flow Rate | Bowl Material | Body Material | Max. Operating Temp. | Filter Efficiency | Max. Flow Rate @ 100 Psi | Min. Flow Rate | Filter Bowl Capacity | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8833-11-DX | 12 CFM | Nylon | Nylon | - | 93% | 12 SCFM | 0.4 CFM | 0.02L | 10 | €750.82 | |
 |
9933-11-DQ | 14.6 CFM | Nylon | Nylon | 230°F | 93% | 12 SCFM | 0.4 CFM | 0.02L | 10 | €670.51 | |
 |
4433-05-DQ | 10.1 CFM | Nylon | Nylon | 230°F | 93% | 14.1 SCFM | 0.2 CFM | 0.01L | 10 | €567.76 | |
 |
9933-05-DQ | 10.1 CFM | Nylon | Nylon | 230°F | 93% | 12 SCFM | 0.2 CFM | 0.01L | 10 | €452.44 | |
 |
4433-05-BQ | 6.3 CFM | Nylon | Nylon | 230°F | 99.99% | 9 SCFM | 0.1 CFM | 0.01L | 10 | €575.91 | |
|
8833-11-BX | 7.3 CFM | Nylon | Nylon | 230°F | 99.99% | 6 SCFM | 0.2 CFM | 0.02L | 10 | €737.87 | |
 |
9933-11-BQ | 7.3 CFM | Nylon | Nylon | 230°F | 99.99% | 6 SCFM | 0.2 CFM | 0.02L | 10 | €705.63 |
