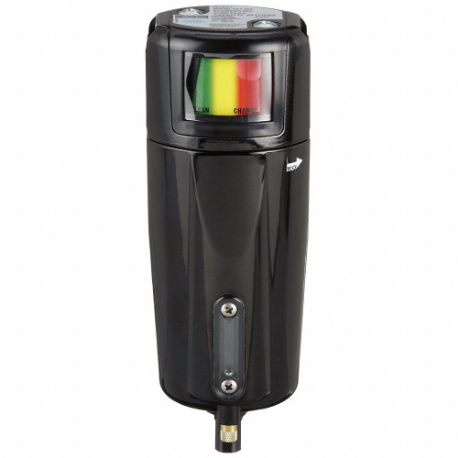

PARKER 8003N-1A1-DX Pneumatic Oil Filter, 3/8 Inch Size NPT, 0.01 micron, 145 cfm, 250 psi Max Op Pressure
Item: CT7JPMModel: 8003N-1A1-DXCross Ref: 4HER3
7 In Stock
Ships within 2 days via
5.00% off
€649.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pneumatic Oil Filter |
| Air Inlet Size | 3/8" |
| Air Inlet Type | NPT |
| Air Outlet Size | 3/8" |
| Air Outlet Type | NPT |
| Bowl Material | Aluminum |
| Connection Style | Main Line |
| Drain Included | Yes |
| Drain Type | Automatic |
| Element Material | Borosilicate Glass Microfibers |
| Filter Bowl Material | Aluminum |
| Filter Efficiency | 93% |
| Filter Element Material | Borosilicate Microfiber |
| Filter Rating | 0.01 µm |
| Filter Type | Coalescing |
| For Fluid Type | Oil, Water |
| For Removal Of | Oil |
| For Substance Type | Dirt, Oil, Water |
| Gauge Included | No |
| Included | 1/4 Turn Bayonet Bowl Closures, Auto Drain, Differential Pressure Indicators, High Efficiency Coalescing Filter, Pressure Relief Valve, Sightglass |
| Max. Flow Rate | 145 CFM |
| Max. Flow Rate @ 100 Psi | 63 SCFM |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 130°F |
| Min. Flow Rate | 9 SCFM |
| Min. Operating Pressure | 15 psig |
| No. Of Air Inlets | 1 |
| No. Of Air Outlets | 1 |
| Overall Height | 8 1/2" |
| Overall Width | 3 5/16" |
| Pressure Drop | 10 psi |
| Seal Material | Buna N |
| Series | 8000 Series |
| Sight Gauge Included | Yes |
| Size-air Treatment | Subcompact |
| System Location | Main Line |
| Type | Modular |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 8.41 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 21.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Air Inlet Size | Max. Flow Rate | Bowl Material | Overall Width | Overall Height | Air Outlet Size | Filter Bowl Material | Min. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3B-8208N-3A1 | 1" | 154 CFM | Steel | 13" | 13" | 1" | Steel | 15 psi | €4,003.95 | |
 |
3B-8002N-3A1 | 1/4" | 36 CFM | Aluminum | 9" | 8 1/2" | 1/4" | Aluminum | 15 psi | €2,244.91 | |
 |
3B-8003N-3A1 | 3/8" | 36 CFM | Aluminum | 9" | 8 1/2" | 3/8" | Aluminum | 15 psi | €2,244.16 | |
 |
3B-8104N-3A1 | 1/2" | 90 CFM | Aluminum | 11" | 11 5/16" | 1/2" | Aluminum | 15 psi | €2,526.87 | |
 |
8312N-1A1-DX | 1 1/2" | 1546 CFM | Steel | 5" | 17" | 1 1/2" | Steel | 15 psig | €2,425.29 | |
|
8312N-1A1-BX | 1 1/2" | 358 CFM | Steel | 5" | 17" | 1 1/2" | - | 15 psig | €2,454.70 | |
|
8312N-0A0-SA | 1 1/2" | 445 CFM | Steel | 5" | 17" | 1 1/2" | Steel | 15 psig | €2,417.74 |
