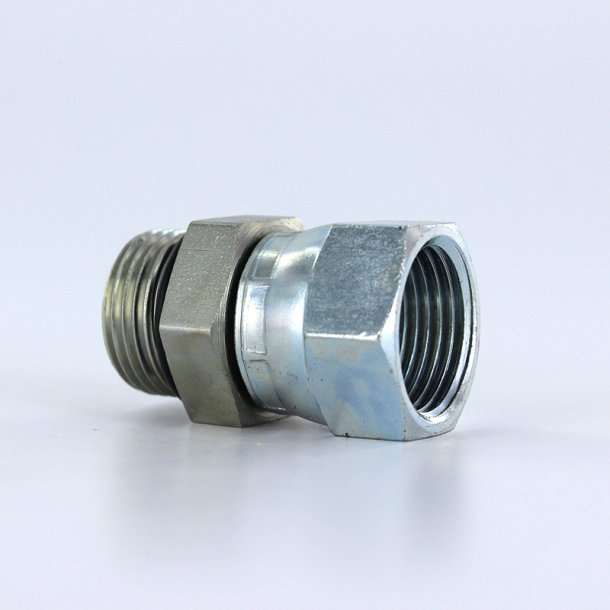

PARKER 8 F65OX-S Thread Connector, 37 Deg., Swivel, Straight, 1/2 Inch
Get it by Thursday, Aug 20
€42.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Straight Thread Connector |
| Application Type | Hydraulic Fluid, Gas Handling Connections |
| Connection Type | 1/2" JIC 37° Female Flare 3/4" (3/4"-16, 3/4" X 16) UN/UNF 2A Male O-Ring Boss Seal (SAE ORB) Connection |
| Design | 7/8" Ext. Hexthreaded (JIC 37° Flare) Design#F65ox Model |
| Equivalent To | 8F65OXS8-F65OX-S |
| Fitting Type | Straight Fitting |
| Function | Hydraulic Swivelling/Rotatable/Rotating Straight Fitting |
| Main Function | Hydraulic Fitting |
| Material | Steel , Steel Body 90 Durometer Nitrile Seals |
| Max. Dynamic Pressure | 6000 psi |
| Max. Pressure | 6000 psi |
| No. Of Inlet | 1 |
| No. Of Outlet | 1 |
| Product Datasheet | parker-10-aoex6-s.pdf |
| Size | 1/2" JIC Swivel x SAE Size 8 (3/4"-16) Male |
| Sub Range Name | Triple Lok Series |
| Temp. | -30°F to +250°F |
| Type | Triple Lok |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Max. Dynamic Pressure | Equivalent To | Max. Pressure | Temp. | No. Of Inlet | Type | Price | |
|---|---|---|---|---|---|---|---|---|

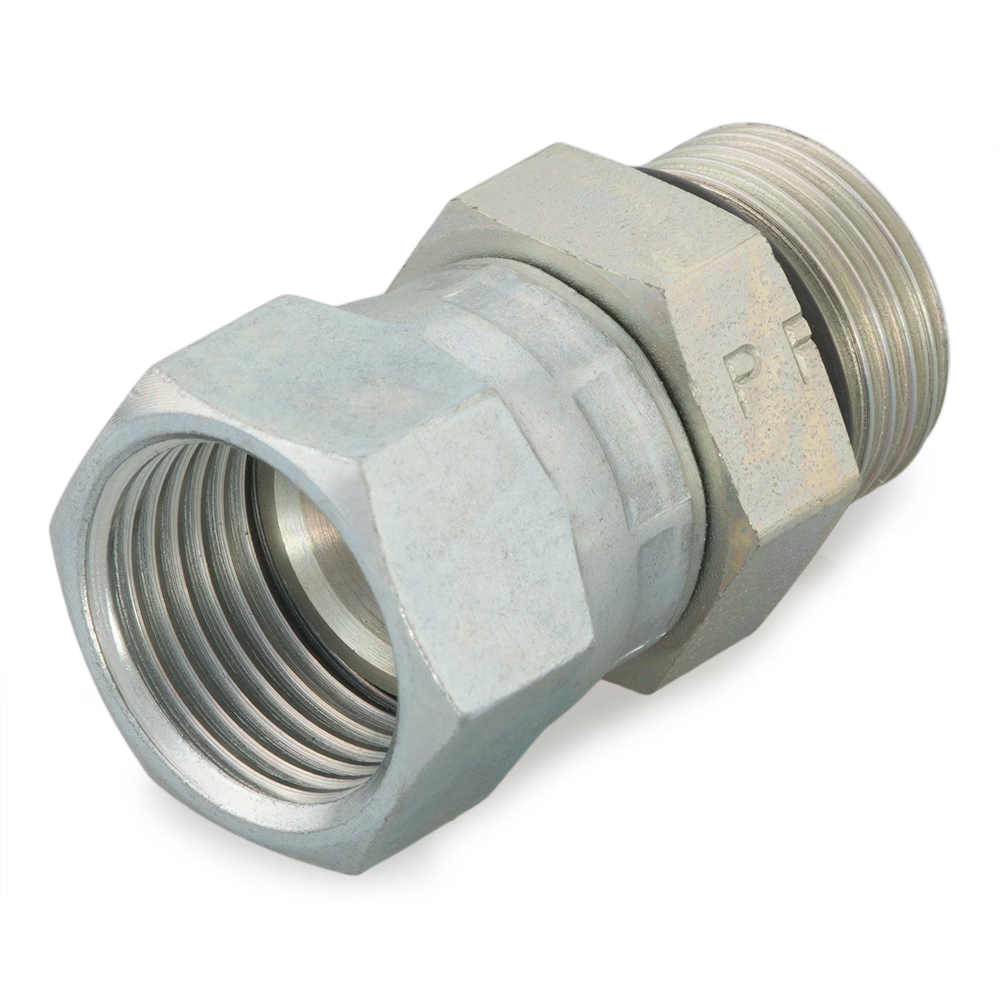

| 10 F65OX-S | 5000 psi | 10F65OXS10-F65OX-S | 5000 psi | -30°F to +250°F | 1 | Triple Lok | €47.78 | |
| 10-12 F65OX-S | 5000 psi | 1012F65OXS10-12-F65OX-S | - | -30°F to +250°F | 1 | - | €56.60 | |
| 10-8 F65OX-S | - | - | - | - | - | - | €44.09 | |
| 12 F65OX-S | 5000 psi | 12F65OXS12-F65OX-S | - | -30°F to +250°F | 1 | - | €78.24 | |
| 12 F65OX-SS | 6000 psi | 12F65OXSS12-F65OX-SS | - | -30°F to +250°F | 1 | - | €424.41 | |
| 12-10 F65OX-S | - | - | - | - | - | - | €60.16 | |
| 12-16 F65OX-S | - | - | - | - | - | - | €94.93 |
