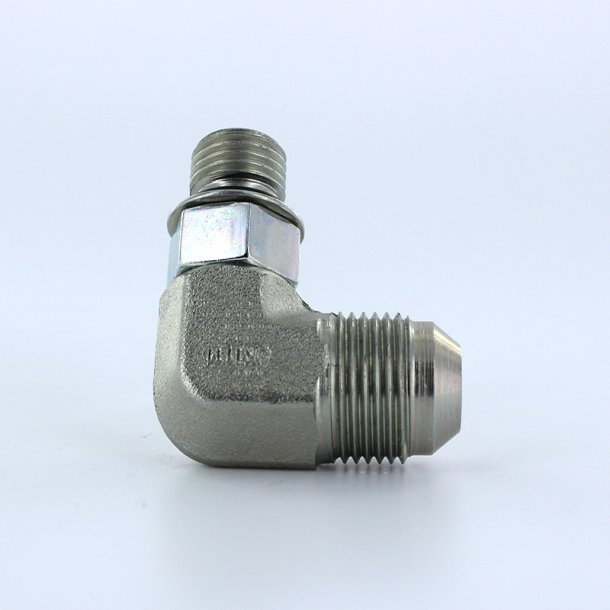

PARKER 8-6 C5OX-S Straight Thread Elbow, 1/2 Inch
Get it by Tuesday, Aug 25
€21.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Straight Thread Elbow Item Straight Thread Elbow |
| Angle | 90° |
| Application Type | Hydraulic Fluid, Gas Handling Connections |
| Connection Type | 1/2" JIC 37° Male Flare 9/16" (9/16"-18, 9/16" X 18) UN/UNF 2A Male O-Ring Boss Seal (SAE ORB) Connection |
| Design | 3/4" Ext. Hexthreaded (JIC 37° Flare) Design#C5ox Model |
| End Connection | Flare X Sae-Orb |
| Equivalent To | 86C5OXS8-6-C5OX-S |
| Flared Angle | 37° |
| Function | Hydraulic 90° Elbow Angled Fitting |
| Main Function | Hydraulic Fitting |
| Material | Steel , Steel Body 90 Durometer Nitrile Seals |
| Max. Dynamic Pressure | 6000 psi |
| Max. Pressure | 6000 psi |
| Max. Working Pressure Dynamic | 6000 |
| Max. Working Temp. | 500°F |
| No. Of Inlet | 1 |
| No. Of Outlet | 1 |
| Outside Dia. | 1/2" |
| Product Datasheet | parker-10-aoex6-s.pdf |
| Shape | L |
| Size | 1/2" JIC x SAE Size 6 (9/16"-18) Male |
| Sub Range Name | Triple Lok Series |
| Temp. | -30°F to +250°F |
| Thread Standard | UNF |
| Type | Triple Lok |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
