PARKER 6A-PR6-VT-B Ball Valve, 3/8 Inch Size, Brass
Item: AB3AVWModel: 6A-PR6-VT-BCross Ref: 1RBC5
7 In Stock
Ships within 2 days via
10.00% off
€252.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| Body Material | Brass |
| Coefficient Of Volume | 3.19 |
| Connection Size | 3/8" |
| Connection Size - Side 1 | 3/8" |
| Connection Size - Side 2 | 3/8" |
| Connection Type | Compression x Compression |
| Connection Type - Side 1 | Compression |
| Connection Type - Side 2 | Compression |
| Flow Capacity | 1.24 Cv |
| Flow Coefficient | 1.24 |
| For Media | Chemicals, Gas, Oil |
| Handle Length | 2.4" |
| Handle Type | Lever |
| Max. Media Temperature | 300°F |
| Max. Operating Pressure | 207 psi |
| Max. Pressure | 3000 psi |
| Max. Pressure (cwp) | 3000 psi |
| Media Temperature Range | -65°F to +300°F |
| Min. Media Temperature | -65°F |
| Overall Height | 2 4/25" |
| Overall Length | 2.66" |
| Plug Material | Brass |
| Ring Material | PTFE |
| Seal Material | FKM |
| Standards | ASTM |
| Style | Two Ferrule Compression |
| Temp. Range | -10°F to +450°F |
| Tube Size | 3/8" |
| Valve Flow Pattern | 2 Way |
| Valve Series | PR |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 9.4 |
| Ship length (cm) | 6.76 |
| Ship width (cm) | 2.94 |
| HS code | 8481803065 |
| Country of Origin | US |
Product Variants
| Product | Model | Connection Type | Coefficient Of Volume | Seal Material | Overall Length | Body Material | Style | Overall Height | Tube Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4A-PR4-VT-SS | Compression x Compression | 1.24 | FKM | 2.18" | 316 Stainless Steel | Two Ferrule Compression | 1.53" | 1/4" | €218.92 | |
|
6A-PR6-VT-SS | A LOK | 3.19 | Nitrile Rubber | 2.66" | - | Two Ferrule Compression | 2 4/25" | 3/8" | €387.30 | |
|
8A-PR6-VT-SS | Compression x Compression | 3.19 | FKM | 2 22/25" | 316 Stainless Steel | Two Ferrule Compression | 2 4/25" | - | €431.25 | |
 |

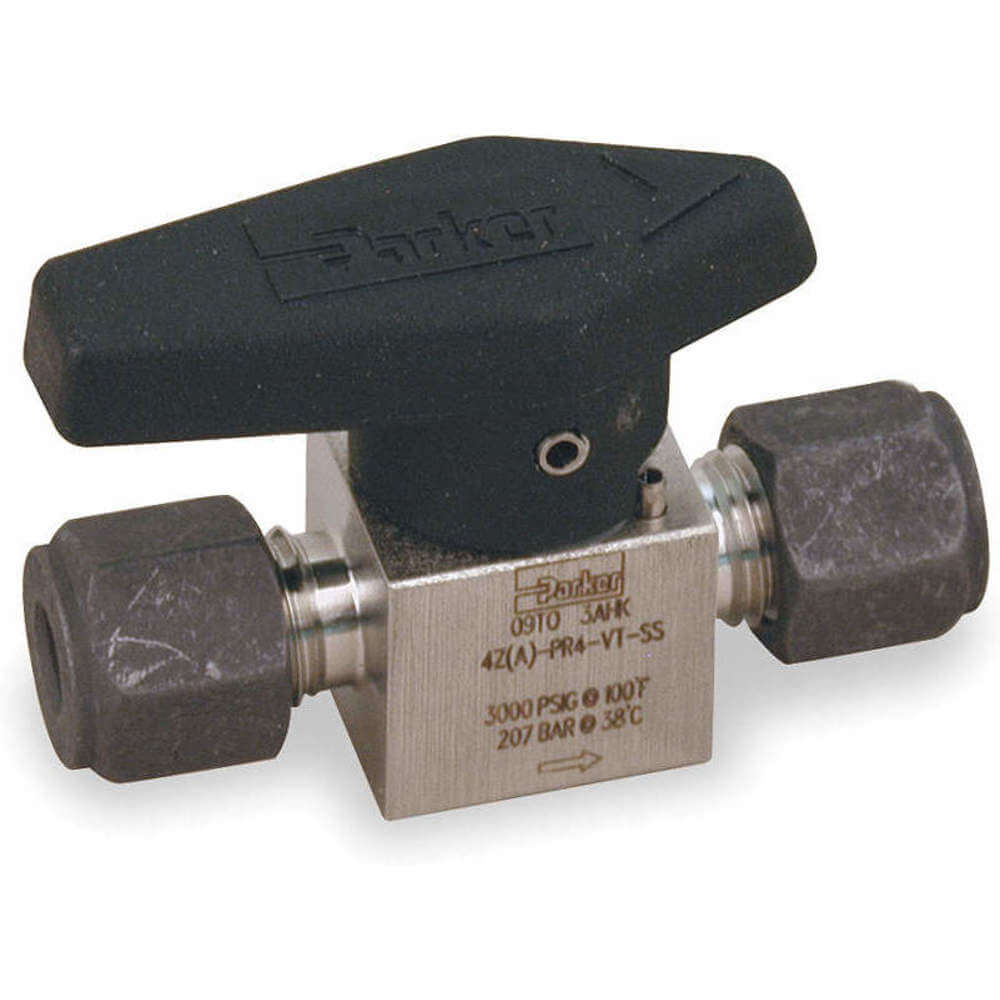

4Z-PR4-VT-SS | Compression x Compression | 1.24 | FKM | 2.18" | 316 Stainless Steel | Single Ferrule Compression | 1.53" | 1/4" | €225.96 | |
|
6Z-PR6-VT-SS | Compression x Compression | 3.19 | FKM | 2.66" | 316 Stainless Steel | Single Ferrule Compression | 2 4/25" | 3/8" | €400.66 | |
|
8Z-PR6-VT-SS | Compression x Compression | 3.19 | FKM | 2 22/25" | 316 Stainless Steel | Single Ferrule Compression | 2 4/25" | 1/2" | €419.43 | |
|

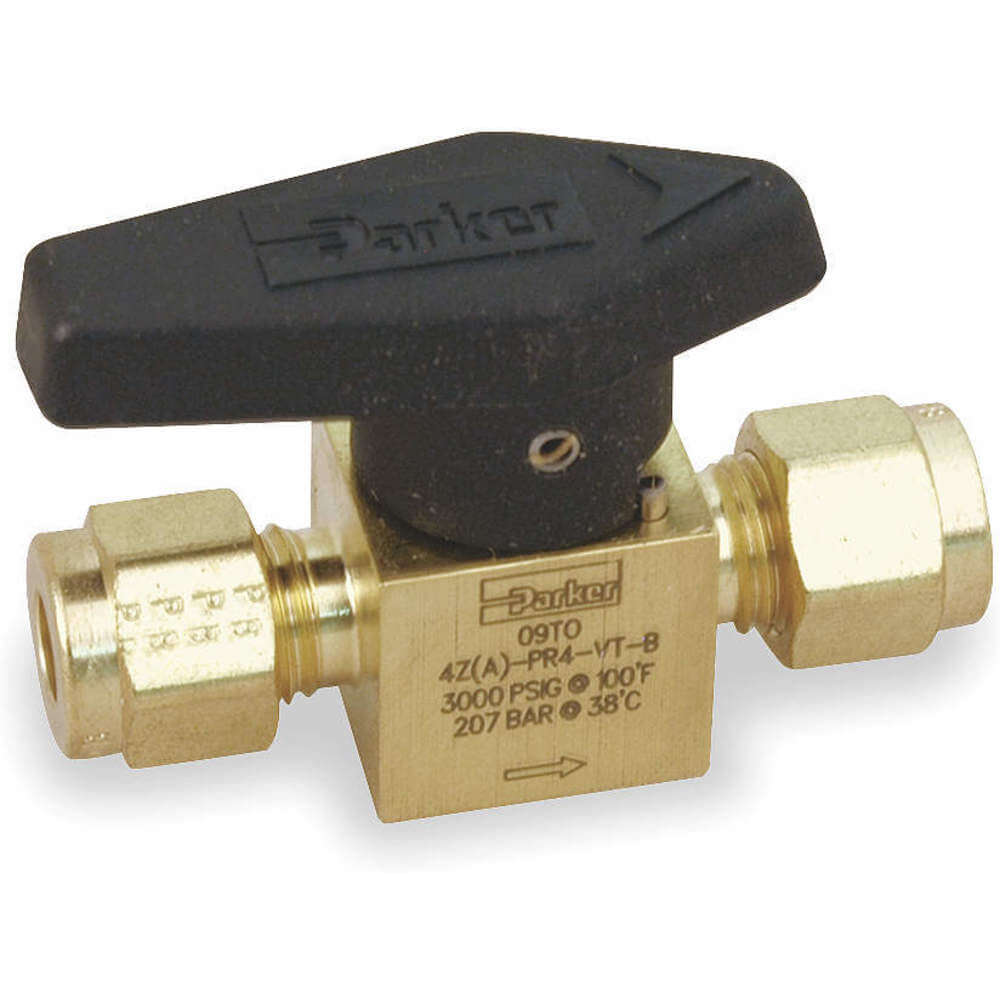

4A-PR4-VT-B | Compression x Compression | 1.24 | FKM | 2.18" | Brass | Two Ferrule Compression | 1.53" | 1/4" | €191.50 |
