PARKER 6A-MB6XPFA-SSP Stainless Steel Ball Valve 3-Way Comp. 3/8 In
Item: AB3BDAModel: 6A-MB6XPFA-SSPCross Ref: 1RCK5
7 In Stock
Ships within 2 days via
10.00% off
€582.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Stainless Steel |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | 316 Stainless Steel |
| Coefficient Of Volume (cv) | 0.7 |
| Features | A-Lok(R) Compression |
| Flow Pattern | L Flow |
| Grade | Grade 316 |
| Handle | Lever |
| Handle Color | Black |
| Handle Material | Nylon |
| Handle Type | Lever |
| Included Mounting | Not Applicable |
| Inlet Connection Entry | Bottom |
| Inlet Connection Gender | Not Applicable |
| Inlet Connection Size | 3/8" |
| Inlet Connection Type | Compression |
| Max. Pressure | 3000 psi WOG |
| Max. Pressure (combustible Gas) | 3000 psi |
| Max. Pressure (cwp) | 3000 psi |
| Maximum Pressure - Steam | Not Rated |
| Media Temperature Range | -65°F to +300°F |
| Nominal Valve Size | 3/8" |
| Number Of Pieces | 1 |
| Number Of Ways | 3 |
| Outlet Connection Gender - Side 1 | Not Applicable |
| Outlet Connection Gender - Side 2 | Not Applicable |
| Outlet Connection Size - Side 1 | 3/8" |
| Outlet Connection Size - Side 2 | 3/8" |
| Outlet Connection Type - Side 1 | Compression |
| Outlet Connection Type - Side 2 | Compression |
| Overall Length | 4.16" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 3/8" |
| Port | Standard |
| Pressure For Water | 3000 psi WOG |
| Seal Material | RPTFE |
| Seat Material | PFA |
| Special Features | Not Applicable |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | -65°F to +300°F |
| Tube Size | 3/8" |
| Vacuum Service Rating | Not Rated |
| Valve Construction | One-Piece |
| Valve Series | MB Series |
| Valve Ways | 3-Way |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 10.57 |
| Ship width (cm) | 4.83 |
| HS code | 8481803070 |
| Country of Origin | US |
Product Details:
Parker 6A-MB6XPFA-SSP ball valve is a type of shut-off valve ideal for regulating the flow of liquids, gases and vapours within a piping system, ensuring safety and minimising leaks or downtime. This Parker ball valve is used in chemical processing plants, petrochemical facilities and industrial manufacturing environments.
Features:
- Parker 6A-MB6XPFA-SSP ball valve features a ball and stem made of 316 stainless steel for corrosion resistance and long service life.
- This Parker ball valve comes with a convenient lever handle made of nylon for ease of operation.
- It has an A-Lok compression and a 3-way body style, offering versatile connectivity options and fluid control capabilities.
- This ball valve has a PTFE seal, providing a tight and dependable seal to prevent leaks.
Frequently Asked Questions:
Q. Does the timer retain programming during power outages?
A. Yes, the timer is equipped with a battery backup that maintains programmed events and timekeeping during power interruptions.
Product Variants
| Product | Model | Body Material | Overall Length | Pipe Size | Number Of Ways | Max. Pressure | Ball Material | Seat Material | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

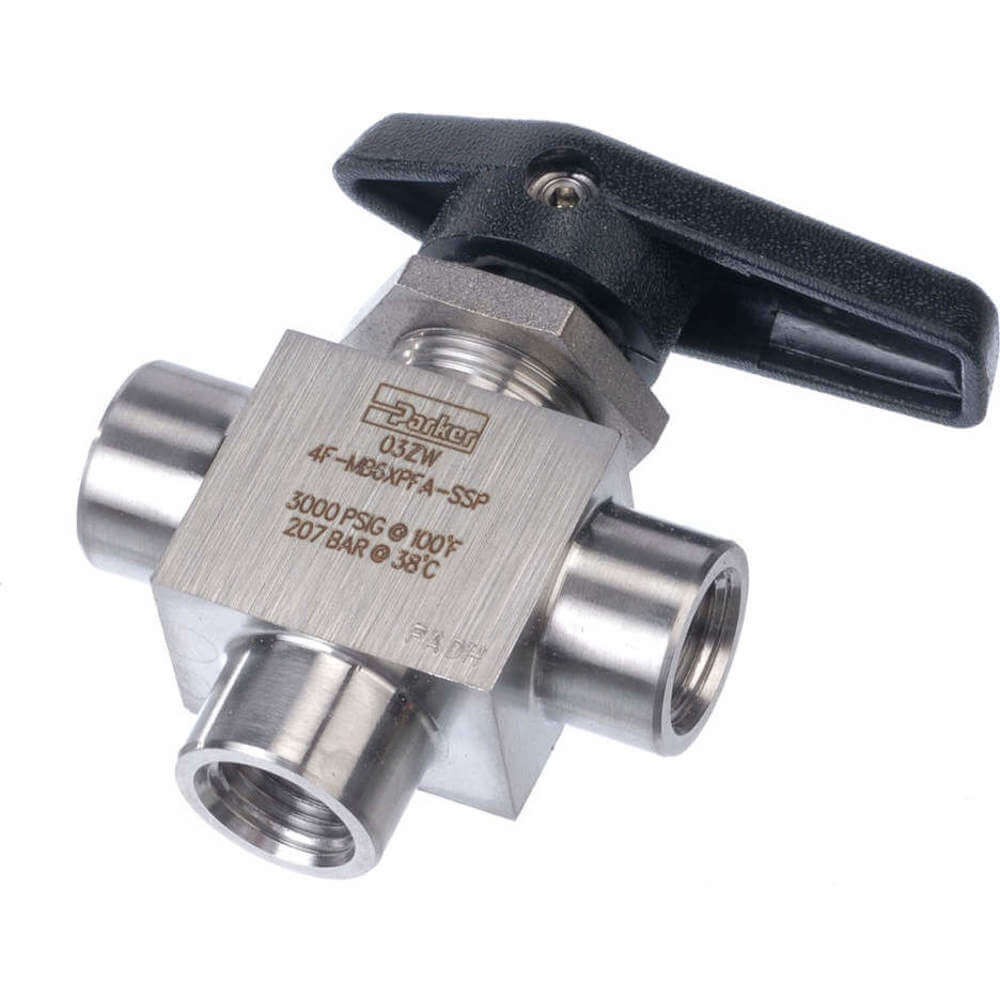

4F-MB6XPFA-SSP | Stainless Steel | 2.06" | 1/4" | 3 | 3000 psi WOG | Stainless Steel | PFA | RPTFE | €592.60 |
