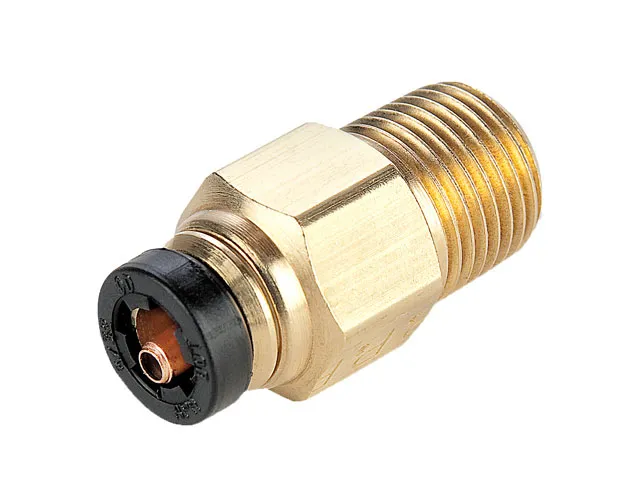

PARKER 68PTC-3-2 Composite Dot Push-To-Connect Fitting, Brass, Push-To-Connect X Mnpt
Item: CT7FABModel: 68PTC-3-2Cross Ref: 791CV1
7 In Stock
Ships within 2 days via
5.00% off
€38.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Heavy Duty Truck, Trailer, Mobile |
| Color | Silver |
| Compatible Tube Material | Nylon, Stainless Steel |
| Configuration Sub Type | Male Connector |
| Configuration Type | Tube To Male |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outside Dia. | 3/16" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Fitting Thread Size | 1/8" |
| Included Pre-applied Thread Sealant | No |
| Length | 0.844" |
| Material | Brass |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 220°F |
| Min. Operating Temp. | -40°F |
| Operating Temp. | -40°F to +200°F |
| Outside Dia. 1 | 3/16" |
| Overall Length | 27/32" |
| Pressure | 0 psi to 250 psi |
| Release Type | Collet |
| Series | PTC METAL Series |
| Specific Application | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary And Secondary, Air Lines, Cab Controls |
| Specific Fitting Shape | Straight Connector |
| System Of Measurement | Inch |
| Thread 1 Type | NPT |
| Thread Size | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 0.48 |
| Ship length (cm) | 2.14 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Overall Length | Fitting Side B Pipe Size | Material | Max. Operating Pressure | Fitting Material | Specific Fitting Shape | Color | Fitting Side A Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 68PTC-3-4 | 1 1/32" | 1/4" | Brass | 250 psi | Brass | Straight Connector | Silver | Push To Connect | €45.20 | |
| 68PTC-5/32-1 | 27/32" | 1/16" | Brass | 250 psi | Brass | Straight Connector | Silver | Push To Connect | €15.38 | |
| 68PTC-3-1 | 15/16" | 1/16" | Brass | 250 psi | Brass | Straight Connector | Silver | Push To Connect | €45.71 | |
| 68PTC-5/32-2 | - | - | - | - | - | - | - | - | €10.85 | |
| 68PTC-5/32-4 | - | - | - | - | - | - | - | - | €27.07 |
