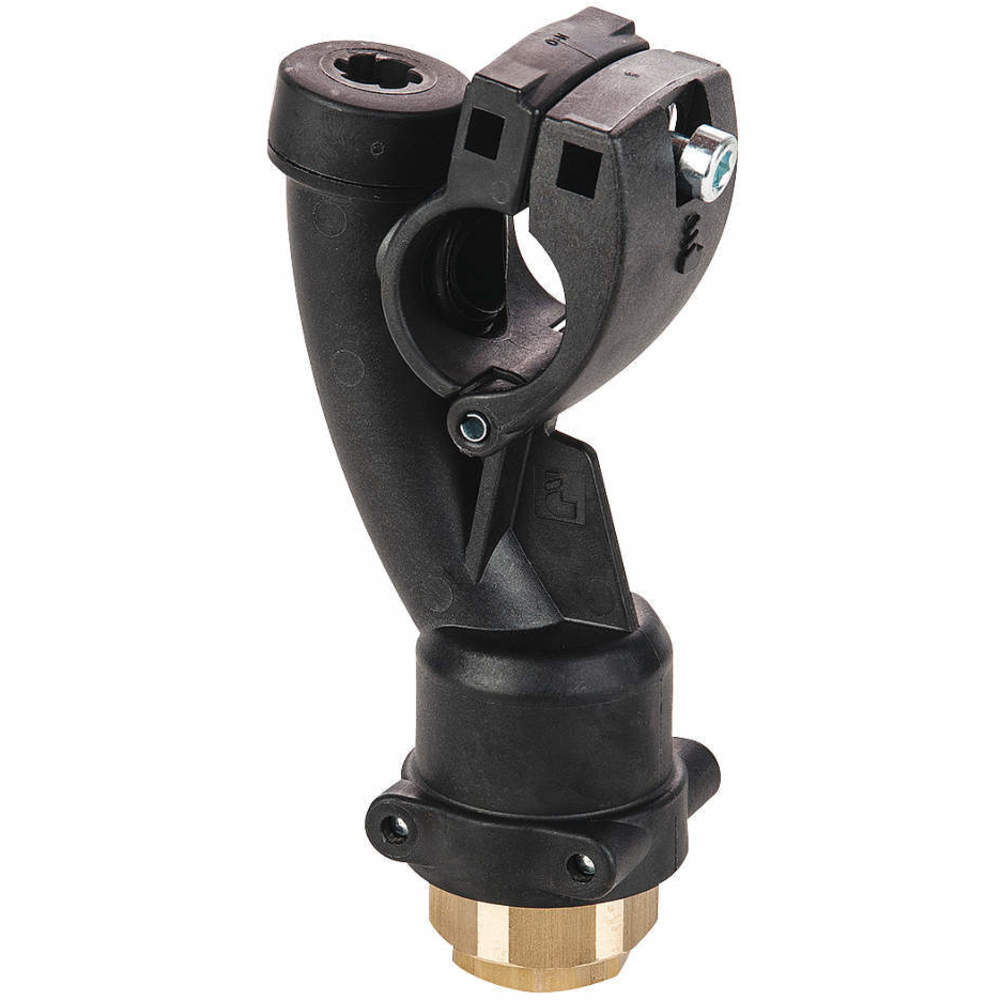

PARKER 6662 40 17 Drop Bracket, 1-1/2 Inch Pipe Outside Diameter
Item: AD8ENHModel: 6662 40 17Cross Ref: 4JMF6
7 In Stock
Ships within 2 days via
10.00% off
€142.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bracket |
| Application | Air, Inert Gases, Vacuum |
| Color | Black |
| Compatible Tube Material | Aluminum |
| Fitting Material | Polyamide |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outer Diameter | 1 1/2" |
| Fitting Side B Connection Type | Push-To-Connect |
| Fitting Side B Tube Outer Diameter | 1/2" |
| For Tubing O.d. 1 | 40mm |
| For Tubing O.d. 1 | 40 mm |
| Material | Polyamide |
| Max. Operating Pressure | 232 psi |
| Max. Operating Temp. | 46.1 Deg C |
| Max. Operating Temp. | 46.1°C |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -20°C |
| Minimum Operating Temperature | 4°F |
| Overall Length | 1 1/2" |
| Pipe Dia. | 1 1/2" |
| Release Type | Ring |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Drop Bracket Adapter |
| Standards | Asme B31.1, Asme B31.3, Atex Directive 2014/34/Eu, Ce Directive 2014/68/Eu, En 13501-1, En 13501-2, Iatf 16949 Version 2016 Certified, Iso 14001, Iso 8573, Iso 9001 Version 2015, Labs Free Compliance, Oil Free Certificate, Qualicoat Certification, Reach |
| Style | Quick Assembly Bracket |
| System Of Measurement | Imperial |
| Type | Drop Bracket |
| Vacuum Rating | 0.03 in. hg |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 7.62 |
| HS code | 3917400090 |
| Country of Origin | FR |
Product Details:
- For Tubing O.D. 2 (17mm)
