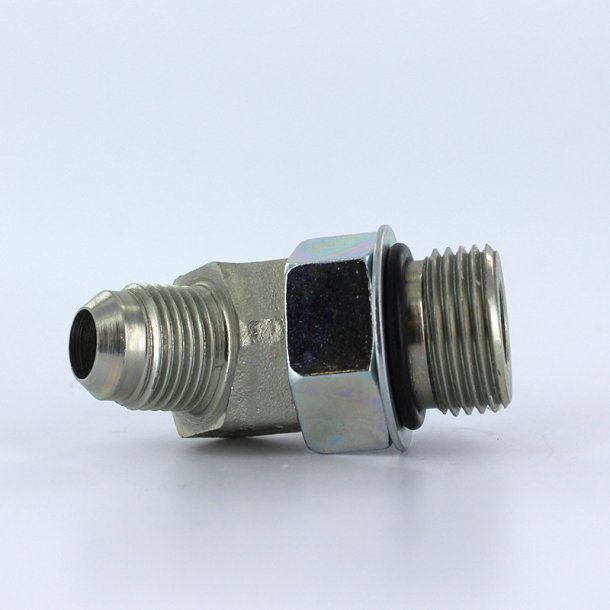

PARKER 6-8 V5OX-S Straight Thread Elbow, 45 Deg., 37 Deg. Flare / Sae-Orb, 3/8 Inch
Get it by Tuesday, Aug 25
€28.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Straight Thread Elbow Item Straight Thread Elbow |
| Angle | 45° |
| Application Type | Hydraulic Fluid, Gas Handling Connections |
| Connection Type | 3/8" JIC 37° Male Flare 3/4" (3/4"-16, 3/4" X 16) UN/UNF 2A Male O-Ring Boss Seal (SAE ORB) Connection |
| Design | 3/4" Ext. Hexthreaded (JIC 37° Flare) Design#V5ox Model |
| Equivalent To | 68V5OXS6-8-V5OX-S |
| Function | Hydraulic 45° Elbow Angled Fitting |
| Main Function | Hydraulic Fitting |
| Material | Steel Body 90 Durometer Nitrile Seals |
| Max. Dynamic Pressure | 6000 psi |
| No. Of Inlet | 1 |
| No. Of Outlet | 1 |
| Product Datasheet | parker-10-aoex6-s.pdf |
| Sub Range Name | Triple Lok Series |
| Temp. | -30°F to +250°F |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
