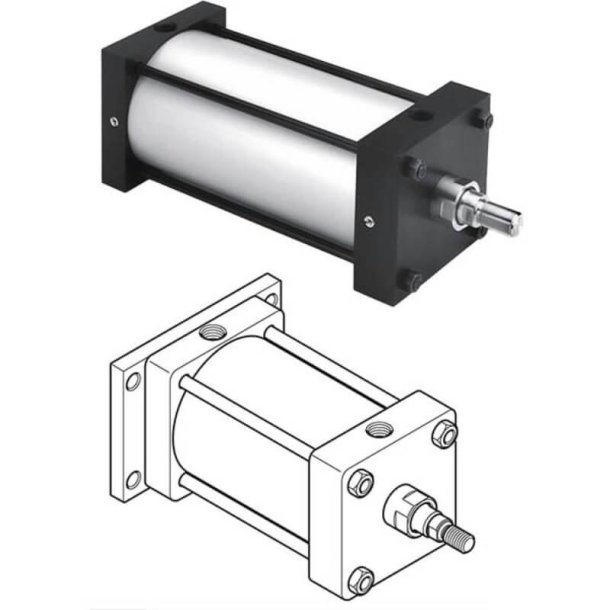

PARKER 6.00H4ML3U39YA04.00 Hydraulic Cylinder
Get it by Tuesday, Aug 25
€1,959.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Bore Size | 6" |
| Connection Type | 2 x 3/4" NPT Threaded Hydraulic Ports 1 1/4" 12 UNF Female Short Threaded Rod End , 2 x 3/4" NPT Threaded Hydraulic Ports 1 1/4"-12 UNF Female Short Threaded Rod-End |
| Design | Piston Magnet "Lipseal" Piston NFPA Interchangeable Model Repairable Filtered Hydraulic Oil As Input Medium |
| Dia. | 1 3/4" |
| Function | Double-Acting Non-Lube NFPA Tie-Rod Hydraulic Cylinder |
| Main Function | Hydraulic Cylinder |
| Material | Hard Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing 17-4 PH Stainless Steel Rod |
| Mounting | Cap Rectangular Flange Mounting (NFPA MF2) |
| Mounting Mode | Cap Rectangular Flange Mounting NFPA MF2 |
| Pressure | 400 psig |
| Rod Dia. | 1 3/4" |
| Shape | Rectangular |
| Stroke Length | 4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
