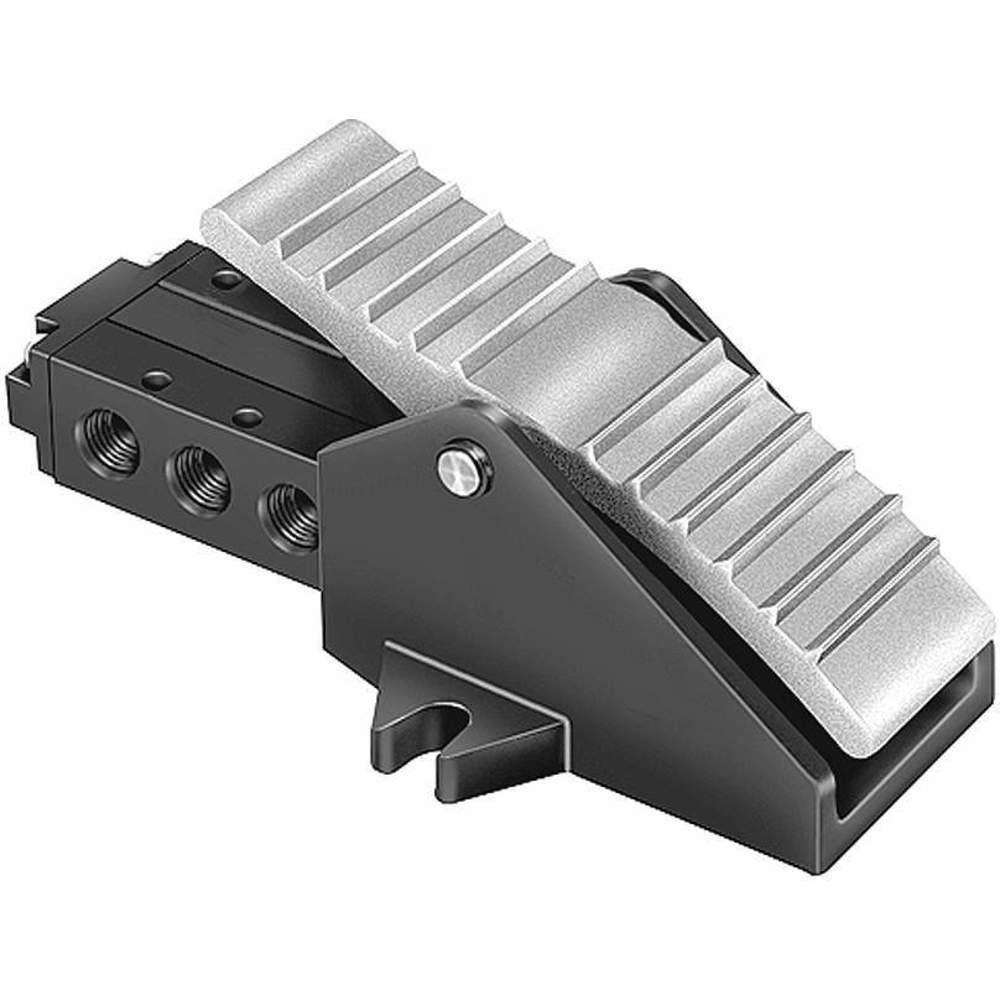

PARKER 520931000 Manual Valve Treadle 1/4 Npt 4 Way
Item: AC9ATAModel: 520931000Cross Ref: 3FEE2
7 In Stock
Ships within 2 days via
10.00% off
€501.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuator Color | Black |
| Actuator Type | Foot Pedal |
| Actuator/return | Treadle/Manual |
| Application | Assembly Lines, Conveyance, Industrial, Packaging |
| Body Material | Aluminum |
| Body Style | Inline |
| Bushing Material | Brass |
| Coefficient Of Volume | 0.83 |
| Connection | NPT |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/4" |
| Exhaust Port Connection Type | Threaded |
| For Media | Air |
| Lubrication | Lubrication Not Required |
| Max. Pressure | 150 psi |
| Number Of Ports | 5 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 0 psi |
| Operating Temperature - Maximum | 175°F |
| Operating Temperature - Minimum | 32°F |
| Overall Height | 2 3/8" |
| Overall Length | 7 7/16" |
| Overall Width | 3 1/2" |
| Pipe Size | 1/4" |
| Poppet Material | Nylon |
| Product Type | Manual Air Control Valve |
| Return Action | Manual Return |
| Seal Material | Buna-N |
| Series | DIRECTAIR 4 Series |
| Spacer Material | Zinc |
| Temp. Range | +32°F to +175°F |
| Vacuum Rating | Vacuum Operable |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 1/4" |
| Valve Port Connection Type | NPT |
| Valve Type | Spool |
Shipping Info:
| Ship weight (kg) | 0.8 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 3.81 |
| HS code | 8481809050 |
| Country of Origin | US |
Product Details:
- Directair 4 Series manual valve designed for controlling the fluid flow rate in material handling and packaging applications, as well as in air motors
- Stainless-steel spool and fluorocarbon seals provide chemical compatibility, even at higher temperatures
- Features a pre-lubricated configuration and requires clean and lubricated air supply for longer life
Product Variants
| Product | Model | Actuator/return | Overall Width | Coefficient Of Volume | Body Material | Overall Length | Overall Height | Cfm | Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
422CR021K | Lever/Spring | 2 1/8" | 2.9 | Aluminum | 6 11/16" | 5 1/16" | - | NPT | €674.10 | |
|
422CR021W | Lever/Detent | 2 1/8" | 2.9 | Aluminum | 6 11/16" | 5 1/16" | - | NPT | €685.37 | |
 |
410811000 | Toggle/Spring | 5/8" | 0.2 | Aluminum | 4 13/16" | 1 5/16" | - | NPT | €327.06 | |
 |
410411000 | Button/Spring | 5/8" | 0.2 | Aluminum | 5 11/16" | 1 5/16" | - | NPT | €323.62 | |
|
410931000 | Button/Manual | 5/8" | 0.2 | Aluminum | 5 11/16" | 1 5/16" | - | NPT | €351.59 | |
 |
410711000 | Lever/Spring | 5/8" | 0.2 | Aluminum | 4 7/8" | 3 3/8" | - | NPT | €324.81 | |
 |
410111000 | Plunger/Spring | 5/8" | 0.17 | Aluminum | 4 3/4" | 1 5/16" | - | NPT | €288.10 |
