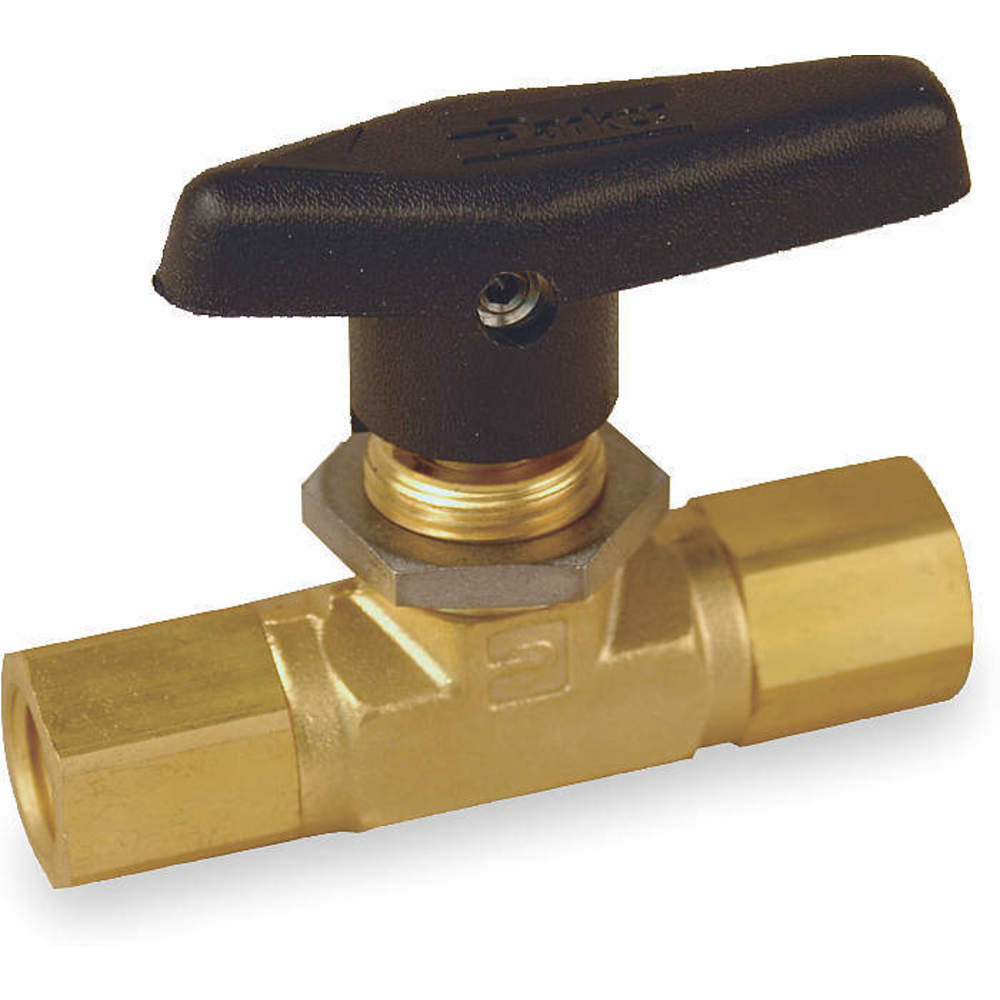

PARKER 4F-B6LJ2-BP Ball Valve, 1/4 Inch Size, Brass
Item: AC2JCEModel: 4F-B6LJ2-BPCross Ref: 2KLA8
7 In Stock
Ships within 2 days via
10.00% off
€244.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Style | Inline |
| Coefficient Of Volume (cv) | 2.34 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/4" |
| Connection Size - Side 2 | 1/4" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Flow Capacity | 2.34 Cv |
| For Media | Air, Natural Gas, Non-Potable Water |
| Grade | Grade 316 |
| Handle | Lever |
| Handle Color | Black |
| Handle Length | 1 1/2" |
| Handle Material | Nylon |
| Handle Type | Wedge |
| Max. Operating Pressure | 1500 BarG |
| Max. Operating Temp. | 232 Deg C |
| Max. Operating Temp. | 232°C |
| Max. Pressure | 3000 psi WOG |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 3000 psi |
| Max. Pressure (steam) | Not Rated |
| Media Temperature Range | -65°F to +350°F |
| Min. Operating Temp. | -54°C |
| Nominal Valve Size | 1/4" |
| Number Of Pieces | 1 |
| Number Of Ways | 2, 3 |
| Overall Length | 3.02" |
| Pipe Size | 1/4" |
| Port | Full |
| Pressure For Water | 3000 psi WOG |
| Seal Material | PCTFE |
| Seat Material | PCTFE |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Style | NPTF |
| Temp. Range | -65°F to +350°F |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Series | B Series |
| Valve Ways | 2-Way |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 7.67 |
| Ship width (cm) | 4.83 |
| HS code | 8481801085 |
| Country of Origin | US |
Product Variants
| Model | Body Material | Max. Pressure | Seal Material | Overall Length | Port | Pressure For Water | Style | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4Z-B6LJ2-SSP | 316 Stainless Steel | 6000 psi WOG | PCTFE | 3.48" | Standard | 6000 psi WOG | Single Ferrule Compression | - | €464.97 | |
| 6Z-B6LJ2-SSP | 316 Stainless Steel | 6000 psi WOG | PCTFE | 3.6" | Standard | 6000 psi WOG | Single Ferrule Compression | 414 BarG | €488.13 | |
| 8Z-B8LJ2-SSP | 316 Stainless Steel | 6000 psi WOG | PCTFE | 4.68" | Standard | 6000 psi WOG | Single Ferrule Compression | 414 BarG | €902.33 | |
| 4A-B6LJ2-SSP | 316 Stainless Steel | 6000 psi WOG | PCTFE | 3.48" | Standard | 6000 psi WOG | Two Ferrule Compression | 414 BarG | €454.02 | |
| 6A-B6LJ2-SSP | 316 Stainless Steel | 6000 psi WOG | PCTFE | 3.6" | Standard | 6000 psi WOG | Two Ferrule Compression | 414 BarG | €494.59 | |
| 8A-B8LJ2-SSP | 316 Stainless Steel | 6000 psi WOG | PCTFE | 4.68" | Standard | 6000 psi WOG | Two Ferrule Compression | 414 BarG | €889.07 | |
| 4F-B6LJ2-SSP | Stainless Steel | 6000 psi WOG | PTFE | - | Standard | 6000 psi WOG | - | 414 BarG | €361.14 |
