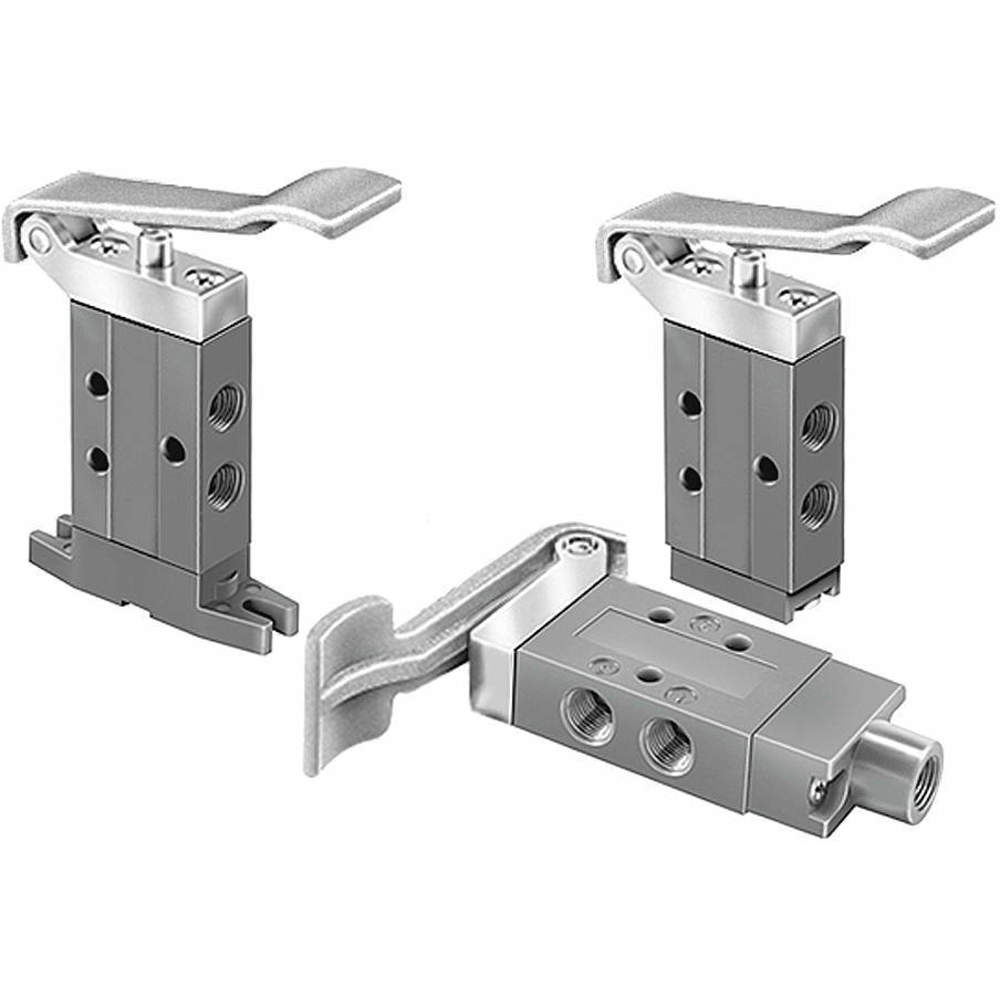

PARKER 414711000 Manual Valve Lever 1/8 Npt 3 Way
Item: AC9ARHModel: 414711000Cross Ref: 3FEC4
7 In Stock
Ships within 2 days via
10.00% off
€273.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuator Color | Black |
| Actuator Type | Lever |
| Actuator/return | Lever/Spring |
| Application | Assembly Lines, Conveyance, Industrial, Packaging |
| Body Material | Aluminum |
| Body Style | Inline |
| Bushing Material | Brass |
| Center Position | Closed |
| Coefficient Of Volume | 0.2 |
| Connection | NPT |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/8" |
| Exhaust Port Connection Type | Threaded |
| For Media | Air |
| Lubrication | Lubrication Not Required |
| Max. Pressure | 150 psi |
| Number Of Ports | 3 |
| Number Of Positions | 2 |
| Number Of Ways | 3 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 0 psi |
| Operating Temperature - Maximum | 175°F |
| Operating Temperature - Minimum | 32°F |
| Overall Height | 3 3/8" |
| Overall Length | 4 5/16" |
| Overall Width | 5/8" |
| Pipe Size | 1/8" |
| Poppet Material | Nylon |
| Product Type | Manual Air Control Valve |
| Return Action | Spring Return |
| Seal Material | Fluorocarbon, Nitrile |
| Series | DIRECTAIR 2 Series |
| Spacer Material | Aluminum |
| Temp. Range | +32°F to +175°F |
| Vacuum Rating | Vacuum Operable |
| Valve Action | Normally Closed |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 1/8" |
| Valve Port Connection Type | NPT |
| Valve Type | Spool |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 8.89 |
| HS code | 8482200080 |
| Country of Origin | US |
Product Variants
| Product | Model | Actuator/return | Coefficient Of Volume | Body Material | Overall Width | Overall Height | Overall Length | Cfm | Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
404211000 | Roller/Spring | 0.2 | Aluminum | 5/8" | - | 4 3/16" | - | NPT | €238.15 | |
 |
404311000 | - | 0.17 | Aluminum | 5/8" | 2 3/16" | 4 7/16" | - | NPT | €275.75 | |
 |
404811000 | Toggle/Spring | 0.2 | Aluminum | 1/2" | 1 1/4" | 4" | - | NPT | €250.96 | |
 |
404411000 | Button/Spring | 0.17 | Aluminum | 5/8" | 1 5/16" | 4 1/8" | - | NPT | €247.09 | |
 |
404711000 | Lever/Spring | 0.17 | Aluminum | 5/8" | - | - | - | NPT | €270.16 | |
 |
404111000 | Plunger/Spring | 0.17 | Aluminum | 5/8" | 1 5/16" | 3 3/8" | - | NPT | €213.60 | |
 |
414111000 | Plunger/Spring | 0.2 | Aluminum | 5/8" | 1 5/16" | 4 1/8" | - | NPT | €265.52 |
