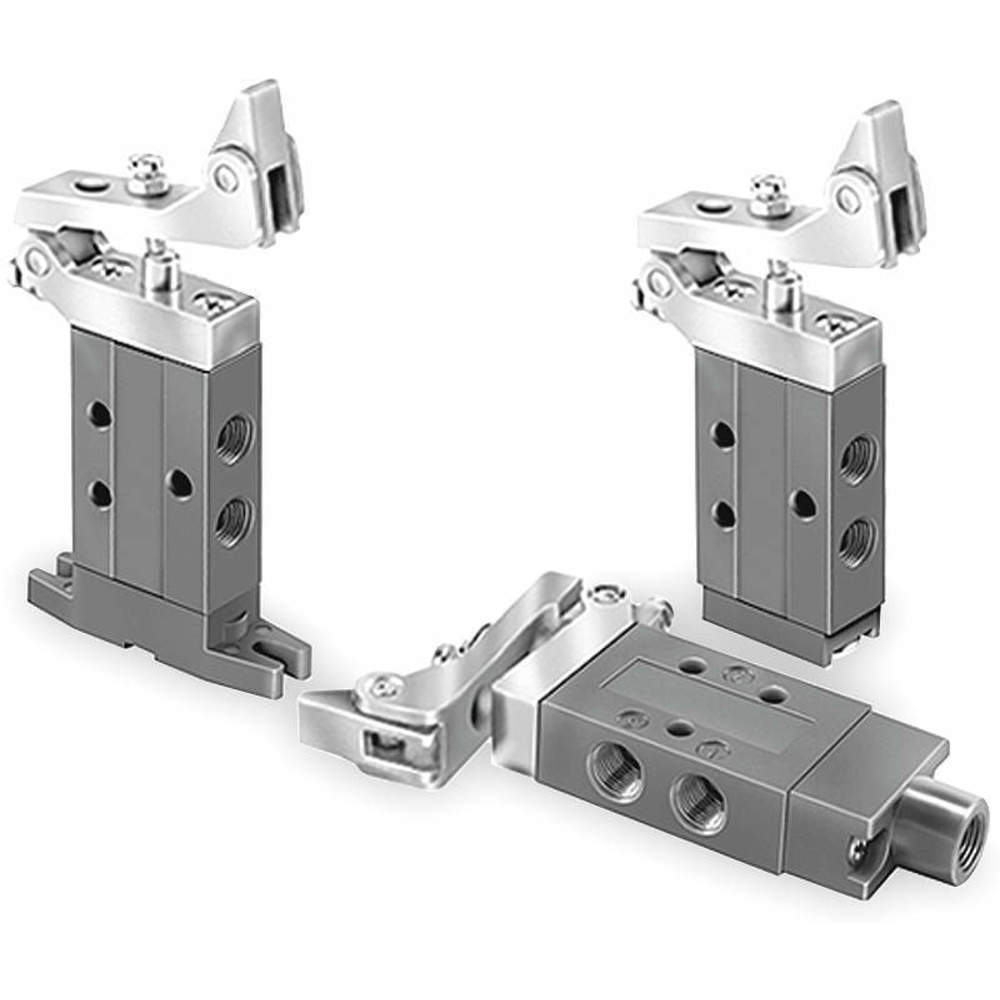

PARKER 414311000 Manual Valve Tripper 1/8 Npt 3 Way
Item: AC9ARDModel: 414311000Cross Ref: 3FEA9
7 In Stock
Ships within 2 days via
5.00% off
€329.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuator Type | One Way Tripper |
| Application | Assembly Lines, Conveyance, Industrial, Packaging |
| Body Material | Aluminum |
| Body Style | Inline |
| Bushing Material | Brass |
| Center Position | Closed |
| Coefficient Of Volume | 0.2 |
| Connection | NPT |
| Exhaust Port Connection Size | 1/8" |
| For Media | Air |
| Lubrication | Lubrication Not Required |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 175°F |
| Max. Pressure | 150 psi |
| Min. Operating Pressure | 0 psi |
| Min. Operating Temp. | 32°F |
| No. Of Positions | 2 |
| No. Of Ways | 3 |
| Overall Height | 2 3/16" |
| Overall Length | 5 1/4" |
| Overall Width | 5/8" |
| Pipe Size | 1/8" |
| Poppet Material | Nylon |
| Product Type | Manual Air Control Valve |
| Return Action | Spring Return |
| Seal Material | Fluorocarbon, Nitrile |
| Series | DIRECTAIR 2 Series |
| Spacer Material | Aluminum |
| Temp. | +32°F to +175°F |
| Vacuum | Vacuum Operable |
| Valve Port Connection Size | 1/8" |
| Valve Port Connection Type | NPT |
| Valve Type | Spool |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 13.34 |
| Ship width (cm) | 5.72 |
| HS code | 8482200080 |
| Country of Origin | US |
Product Variants
| Product | Model | Temp. | Overall Width | Max. Operating Pressure | Valve Port Connection Size | Coefficient Of Volume | For Media | Max. Operating Temp. | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
404211000 | +32°F to +175°F | 5/8" | 150 psi | 1/8" | 0.2 | Air | 175°F | 32°F | €249.81 | |
 |
404311000 | +32°F to +175°F | 5/8" | 150 psi | 1/8" | 0.17 | Air | 175°F | 32°F | €286.17 | |
 |
404811000 | +32°F to +175°F | 1/2" | - | - | 0.2 | - | - | - | €262.06 | |
 |
404411000 | +32°F to +175°F | 5/8" | 150 psi | 1/8" | 0.17 | Air | 175°F | 32°F | €259.09 | |
 |
404711000 | +32°F to +175°F | 5/8" | 150 psi | 1/8" | 0.17 | Air | 175°F | 32°F | €283.37 | |
 |
404111000 | +32°F to +175°F | 5/8" | 150 psi | 1/8" | 0.17 | Air | 175°F | 32°F | €224.07 | |
 |
414111000 | +32°F to +175°F | 5/8" | 150 psi | 1/8" | 0.2 | Air | 175°F | 32°F | €275.19 |
