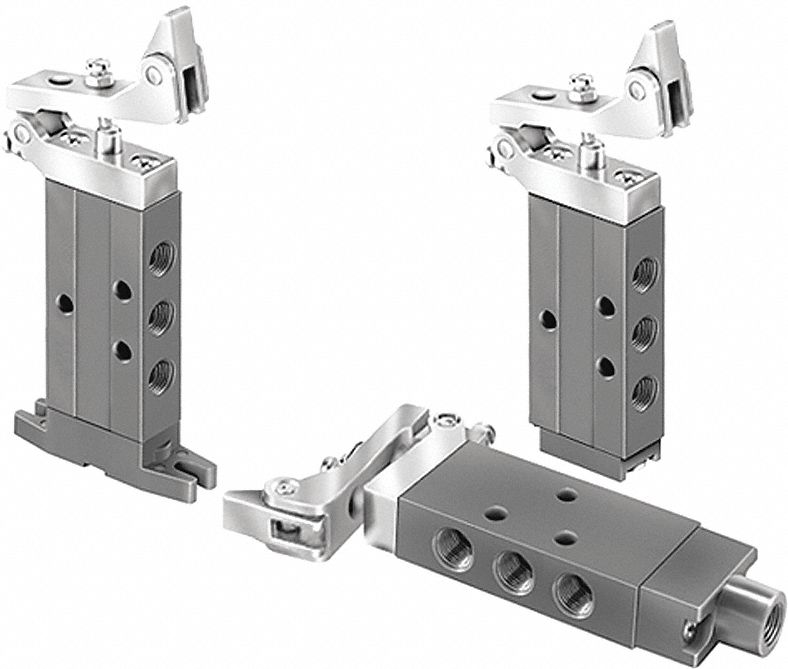

PARKER 410311000 Manual Valve Tripper 1/8 Npt 4 Way
Item: AC9ARLModel: 410311000Cross Ref: 3FEC7
7 In Stock
Ships within 2 days via
10.00% off
€317.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuator Color | Black |
| Actuator Type | One Way Tripper |
| Application | Assembly Lines, Conveyance, Industrial, Packaging |
| Body Material | Aluminum |
| Body Style | Inline |
| Coefficient Of Volume | 0.2 |
| Connection | NPT |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/8" |
| Exhaust Port Connection Type | Threaded |
| For Media | Air |
| Lubrication | Lubrication Not Required |
| Max. Pressure | 150 psi |
| Number Of Ports | 5 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 150 psi |
| Operating Temperature - Maximum | 175°F |
| Operating Temperature - Minimum | 32°F |
| Overall Length | 5 1/4" |
| Overall Width | 1/2" |
| Pipe Size | 1/8" |
| Poppet Material | Nylon |
| Product Type | Manual Air Control Valve |
| Return Action | Spring Return |
| Seal Material | Fluorocarbon, Nitrile |
| Series | DIRECTAIR 2 Series |
| Temp. Range | +32°F to +175°F |
| Vacuum Rating | Vacuum Operable |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 1/8" |
| Valve Port Connection Type | NPT |
| Valve Type | Spool |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 13.34 |
| Ship width (cm) | 5.72 |
| HS code | 8482200080 |
| Country of Origin | US |
Product Variants
| Product | Model | Actuator/return | Overall Width | Coefficient Of Volume | Body Material | Overall Length | Overall Height | Cfm | Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
422CR021K | Lever/Spring | 2 1/8" | 2.9 | Aluminum | 6 11/16" | 5 1/16" | - | NPT | €674.10 | |
|
422CR021W | Lever/Detent | 2 1/8" | 2.9 | Aluminum | 6 11/16" | 5 1/16" | - | NPT | €685.37 | |
 |
410811000 | Toggle/Spring | 5/8" | 0.2 | Aluminum | 4 13/16" | 1 5/16" | - | NPT | €327.06 | |
 |
410411000 | Button/Spring | 5/8" | 0.2 | Aluminum | 5 11/16" | 1 5/16" | - | NPT | €323.62 | |
|
410931000 | Button/Manual | 5/8" | 0.2 | Aluminum | 5 11/16" | 1 5/16" | - | NPT | €351.59 | |
 |
410711000 | Lever/Spring | 5/8" | 0.2 | Aluminum | 4 7/8" | 3 3/8" | - | NPT | €324.81 | |
 |
410111000 | Plunger/Spring | 5/8" | 0.17 | Aluminum | 4 3/4" | 1 5/16" | - | NPT | €288.10 |
