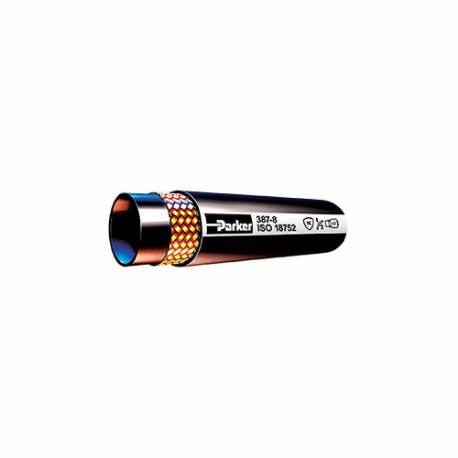

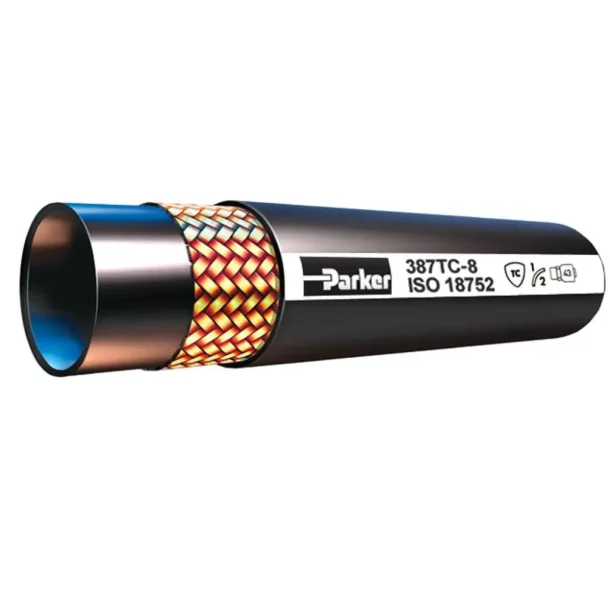

PARKER 387TC-12-BX Hydraulic Hose, 3000 PSI, 3/4 Inch Size Hose ID, 2 11/16 Inch Size Hose OD
Get it by Tuesday, Dec 23
10.00% off
€1,133.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Hose |
| Application | Hydraulic |
| Bend Radius | 4 3/4" |
| Burst Pressure | 12000 psi |
| Color | Black |
| Cover Material | Synthetic Rubber |
| Distinct Properties | Tough Cover Constant Pressure 3000 psi |
| Hose Braid Layers | 2 |
| Hose Color | Black |
| Hose Configuration | Bulk Hose |
| Hose Cover Material | Synthetic Rubber |
| Hose I.d. | 3/4" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 1 3/32" |
| Hose Pressure Range | Medium |
| Hose Reinforcement Material | Carbon Steel |
| Hose Tube Material | Synthetic Rubber |
| Mating Fitting Series | 43 Series |
| Max. Working Pressure @ 70 Deg. F | 3000 psi |
| Min. Bend Radius | 4" |
| Not Recommended Chemicals | Acetic Acid, Acetone, Acetylene, Ammonia (Anhydrous), Ampol Pe 46, Amyl Alcohol, Anderol 495/497/500/750, Aniline, Automotive Brake Fluid |
| Operating Temp. Range | -40°F to +257°F |
| Safety Factor | 4:1 |
| Series | 387TC Series |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +257°F |
| Tube Material | Synthetic Rubber |
| Vacuum Rating | 24 in. hg |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Min. Bend Radius | Hose I.d. | Bend Radius | Hose Outside Dia. | Safety Factor | Hose Length | Max. Working Pressure @ 70 Deg. F | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
387TC-16-BX | 6" | 1" | 6" | 1 13/32" | 4:1 | 50 ft. | 3000 psi | -40°F to +257°F | €1,697.60 | |
|
387TC-8-BX | 3 1/2" | 1/2" | 3 1/2" | 13/16" | 41 | 50 ft. | 3000 psi | -40°F to +257°F | €662.30 | |
|
387TC-4-BX | 2" | 1/4" | 2" | 17/32" | 41 | 50 ft. | 3000 psi | -40°F to +257°F | €572.05 | |
|
387TC-6-BX | 2 1/2" | 3/8" | 2 1/2" | 2.656" | 41 | 50 ft. | 3000 psi | -40°F to +257°F | €523.37 | |
|
387TC-10-BX | 4" | 5/8" | 4" | 15/16" | 4:1 | 50 ft. | 3000 psi | -40°F to +257°F | €909.71 | |
 |
387TC-20-BX | - | - | - | - | - | - | - | - | €64.42 | |
 |
387TC-24-BX | - | - | - | - | - | - | - | - | €87.49 |
