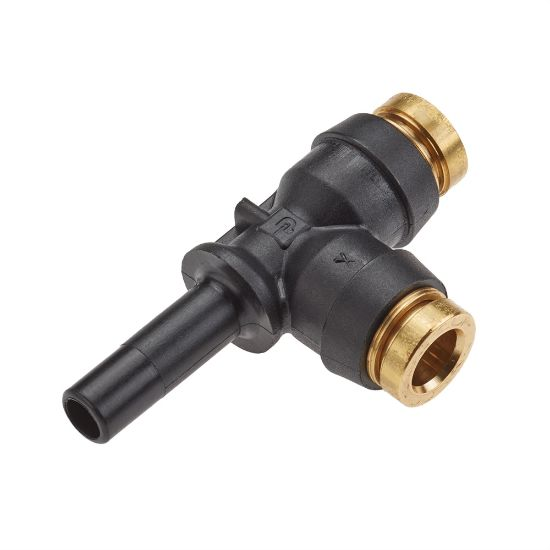

PARKER 371PTCSP-8-4-8 Male Run Tee, Composite, Push-to-Connect x Push-to-Connect x Tube Stem
Item: CT7HMKModel: 371PTCSP-8-4-8Cross Ref: 48MA54
7 In Stock
Ships within 2 days via
10.00% off
€41.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Run Tee |
| Application | Heavy Duty Truck, Trailer, Mobile |
| Color | Black |
| Compatible Tube Material | Nylon, Stainless Steel |
| Configuration Sub-type | Plug In Run Tee |
| Configuration Type | Tube to Tube |
| Fitting Material | Composite |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Dia. | 1/2" |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 1/4" |
| Fitting Side C Connection Type | Tube Stem |
| Fitting Side C Tube Outer Diameter | 1/2" |
| Includes Pre-applied Thread Sealant | No |
| Length | 2.594" |
| Material | Composite, Brass |
| Max. Operating Temp. | 200°F |
| Max. Pressure | 250 psi |
| Maximum Operating Pressure | 250 psi |
| Min. Operating Temp. | -40°F |
| Operating Temp. Range | -40°F to +200°F |
| Outer Diameter 1 | 1/4" |
| Overall Length | 2 19/32" |
| Pressure Range | 0 psi to 250 psi |
| Resistance Properties | Compact Resistant, Impact Resistant |
| Series | PTC COMPOSITE Series |
| Specific Application | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary And Secondary, Air Lines, Cab Controls |
| Specific Fitting Shape | Adapter Tee |
| System Of Measurement | Inch |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 0.64 |
| Ship length (cm) | 6.59 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Model | Fitting Side B Tube Outer Diameter | Fitting Side A Tube Outer Diameter | Overall Length | Fitting Side C Tube Outer Diameter | Tube Size | Min. Operating Temp. | Fitting Material | Compatible Tube Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 371PTCSP-6-6 | 3/8" | 3/8" | 2 1/4" | 3/8" | 3/8" | - | Composite | Nylon, Stainless Steel | €31.58 | |
| 371PTCSP-6-4-6 | 1/4" | 3/8" | 2 1/4" | 3/8" | - | - | Composite | Nylon, Stainless Steel | €36.37 | |
| 371PTCSP-4-4 | 1/4" | 1/4" | 1 27/32" | 1/4" | 1/4" | - | Composite | Nylon, Stainless Steel | €27.42 | |
| 371PTCSP-4-6 | 1/4" | 1/4" | 1 31/32" | 1/4" | 1/4" | 40°F | Composite | Nylon, Stainless Steel | €30.36 | |
| 371PTCSP-6-4 | 3/8" | 3/8" | 2 1/8" | 3/8" | 3/8" | 40°F | Composite | Nylon, Stainless Steel | €34.41 |
