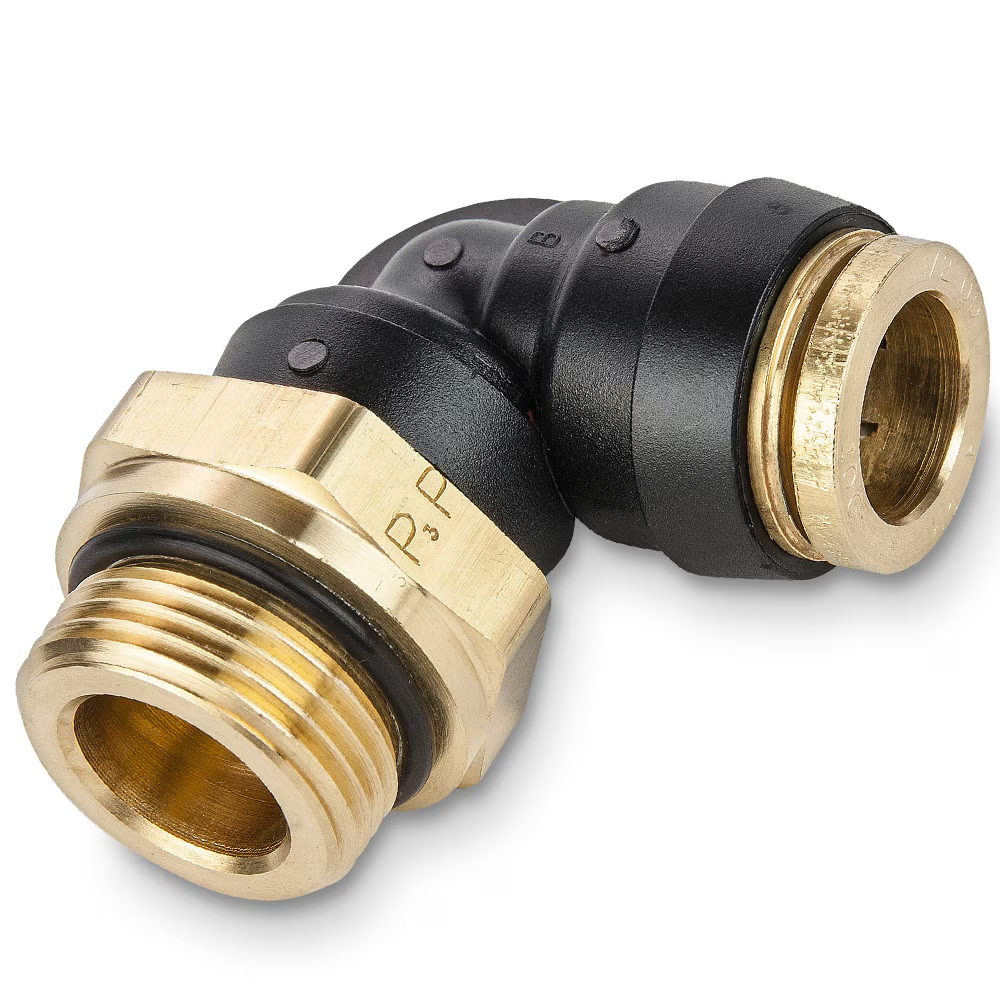

PARKER 369PTCR-8-MA22 Composite, 22 mm Pipe Size
Item: CT7KQUModel: 369PTCR-8-MA22Cross Ref: 791TP3
7 In Stock
Ships within 2 days via
5.00% off
€55.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air |
| Color | Black |
| Compatible Tube Material | Nylon, Stainless Steel |
| Fitting Material | Composite |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outside Dia. | 1/2" |
| Fitting Side B Connection Type | Metric |
| Fitting Side B Pipe Size | 22 mm |
| Fitting Thread Size | M22 |
| Included Pre-applied Thread Sealant | No |
| Length | 2.531" |
| Material | Composite |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | -40°F |
| Overall Length | 2 17/32" |
| Release Type | Collet |
| Resistance Properties | Impact Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Imperial, Metric |
| Thread Size | 22 mm |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.43 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Fitting Side A Connection Type | Color | Fitting Material | Included Pre-applied Thread Sealant | Fitting Side B Connection Type | Specific Fitting Shape | Compatible Tube Material | Fitting Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
377PTC-4-4 | NPTF | Black | Composite | No | Push To Connect | Adapter Tee | Nylon, Stainless Steel | - | - | RFQ
|
 |
170PTCNS-4-2 | Push-To-Connect | - | Brass | No | FNPT | Elbow | Nylon, Stainless Steel | 1/8" | €30.00 | |
|
170PTCNS-8-8 | Push-To-Connect | Silver | Brass | No | FNPT | Elbow | Nylon, Stainless Steel | 1/2" | €57.28 | |
|
170PTCNS-8-6 | Push-To-Connect | Silver | Brass | No | FNPT | Elbow | Nylon, Stainless Steel | 3/8" | €54.24 | |
 |
170PTCNS-8-4 | Push-To-Connect | - | Brass | No | FNPT | Elbow | Nylon, Stainless Steel | 1/4" | €90.22 | |
 |
VS169PTCNS-10-8 | Push To Connect | Silver | Brass | Yes | MNPT | Elbow Adapter | Nylon, Stainless Steel | 1/2" | €48.60 | |
 |
179PTCNS-6-4 | Push To Connect | Silver | - | - | - | Elbow Adapter | Nylon, Stainless Steel | - | €30.50 |
