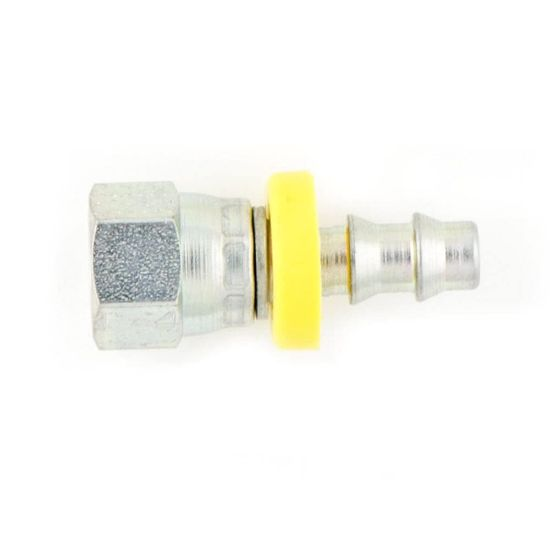

PARKER 30682-12-12C Female Jic, 37 Deg., Barbed, Swivel, Straight, 3/4 Inch
Get it by Tuesday, Aug 25
€210.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Female Jic 37 Deg. |
| Application Type | Petroleum Base Hydraulic Fluids, Lubricating Oils Pneumatic Antifreeze Solutions Diesel Fuels Phosphate Ester Dry Air, Water |
| Connection Type | 3/4" JIC 37° Female Flare 3/4" ID Barb Connection |
| Design | 1-1/4" Ext. Hexthreaded (JIC 37° Flare) + Barbed Design#30682 Model |
| Dia. | For Hs. Dash Size NO. -12 |
| Equivalent To | 306821212C |
| Fitting Type | Straight Fitting |
| Function | Hydraulic Swivelling/Rotatable/Rotating Fitting |
| Main Function | Hydraulic Fitting |
| Material | Stainless Steel 316 Body |
| No. Of Inlet | 1 |
| No. Of Outlet | 1 |
| Product Datasheet | parker-30182-12-12c.pdf |
| Sub Range Name | Field Attachable 82 Series |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Material | Fitting Material | Standard Thread Size | Style | Hose Fitting A Size | Hose Fitting A Connection Type | For Hose Dash Size | Barb Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 30182-12-8B | Brass | Brass x Brass | 3/4" | NPTF Pipe | 1/2" | Hose Barb | -8 | 1/2" | €53.76 | |
| 30182-12-12B | Brass | Brass x Brass | 3/4" | NPTF Pipe | 3/4" | Hose Barb | -12 | 3/4" | €55.99 | |
| 30182-2-4 | Steel | Steel | 1/8" | NPTF Pipe | 1/8" | Hose Barb | -4 | 1/8" | €9.18 | |
| 30182-4-4B | Brass | Brass x Brass | 1/4" | NPTF Pipe | 1/4" | Hose Barb | -4 | 1/4" | €12.07 | |
| 30182-4-6B | Brass | Brass x Brass | 1/4" | NPTF Pipe | 3/8" | Hose Barb | -6 | 3/8" | €12.24 | |
| 30182-2-4B | Brass | Brass x Brass | 1/8" | NPTF Pipe | 1/8" | Hose Barb | -4 | 1/8" | €10.36 | |
| 30182-6-6B | Brass | Brass x Brass | 3/8" | NPTF Pipe | 3/8" | Hose Barb | -6 | 3/8" | €20.06 |
