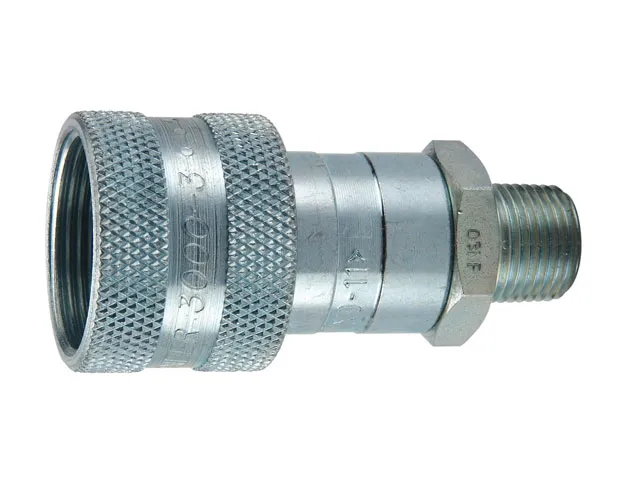

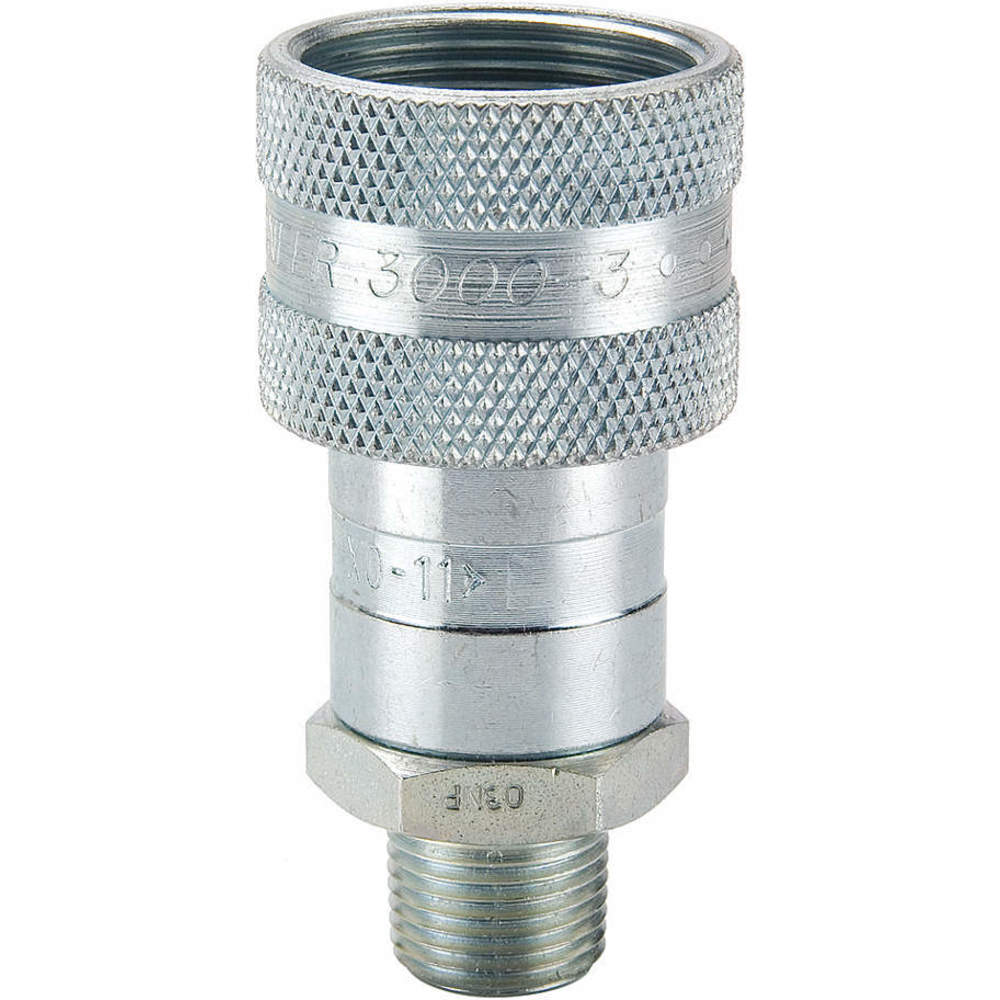

PARKER 3050-2 Quick Coupling, 1/4 Inch Size, High Pressure
Item: AC4XLEModel: 3050-2Cross Ref: 31A788
7 In Stock
Ships within 2 days via
10.00% off
€101.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Coupler |
| Application | Hydraulic |
| Body Material | Steel |
| Body Size | 1/4" |
| Configuration Type | Male NPTF |
| Connection Type | NPTF |
| Coupler Body Material | Steel |
| Coupler Finish | Zinc Plated |
| Coupler/nipple/shell | Coupler |
| Coupling Component | Socket |
| Coupling Locking Type | Sleeve |
| Coupling Size | 1/4" |
| Finish/coating | Plain |
| Fitting Type | MNPTF |
| Flow Rate | 3 GPM |
| For Use With | Parker 3000 Series |
| Gender | Male |
| Grade | Grade 6 |
| Hansen Interchange | WA-56517-00 |
| Hose Fitting Gender | Male |
| Includes Bearing | No |
| Includes Shut Off | No |
| Includes Valve | Yes |
| Length | 2 3/8" |
| Locking Mechanism | Thread |
| Locking Type | Threads |
| Material | Steel |
| Max. Flow Rate | 11.36 LPM |
| Max. Operating Pressure | 10000 psi |
| Max. Operating Temp. | 230°F |
| Max. Operating Temp. | 230 Deg F |
| Max. Outside Dia. | 1 1/8" |
| Max. Pressure | 10000 psi |
| Max. Pressure Range | Greater than 5000 psi |
| Max. Working Pressure | 10000 psi |
| Max. Working Pressure @ 70 F | 10000 psi |
| Min. Operating Temp. | -22°F |
| Overall Length | 2 3/8" |
| Parker Interchange | 3050-2 |
| Pioneer Interchange | 3050-2 |
| Pipe Size | 1/4" |
| Pipe Size Npt | 1/4" |
| Plating | Zinc |
| Quick Coupler Type | Hydraulic High Pressure |
| Seal Material | Polyurethane |
| Series | 3000 Series |
| Sleeve Material | Steel |
| Snap-tite Interchange | 76C4-4M |
| System Of Measurement | Inch |
| Temp. Range | -22°F to +238°F |
| Thread 1 Size | 1/4" |
| Thread Size | 1/4"-18 |
| Thread Type | Male |
| Type | Coupler Body |
| Valve Design | Ball |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.86 |
| Ship length (cm) | 6.03 |
| Ship width (cm) | 3.05 |
| HS code | 8481200050 |
| Country of Origin | US |
Product Details:
- 3000 Series quick connect coupler designed for high-pressure applications in hydraulic rams, crimping equipment and hydraulic tools
- Zinc-plated steel construction capable of withstanding flow rates up to 10000 psi
- Features ball valve for allowing flow rates up to 3 GPM and threaded connection for leak-proof service
- Polyurethane seal provides resistance to high-pressure extrusion
