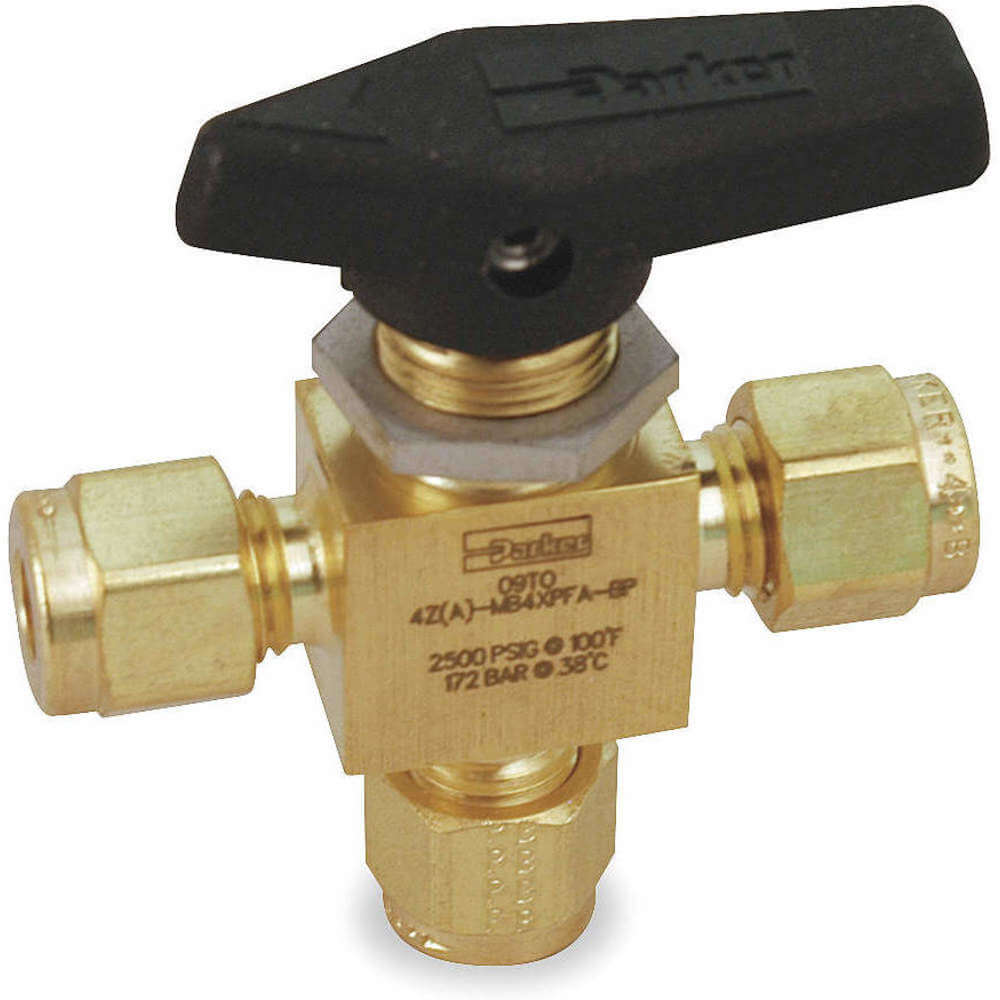

PARKER 2A-MB2XPFA-BP Brass Ball Valve 3-way Compression x Compression x Compression 1/8 In
Item: AB3ANXModel: 2A-MB2XPFA-BPCross Ref: 1RAH7
7 In Stock
Ships within 2 days via
10.00% off
€223.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mini Ball Valve |
| 3-a Compliance | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Stainless Steel |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Coefficient Of Volume (cv) | 0.18 |
| Features | A-Lok(R) Compression |
| Flow Pattern | L Flow |
| Grade | Grade 316 |
| Handle | Lever |
| Handle Color | Black |
| Handle Material | Nylon |
| Handle Type | Wedge |
| Included Mounting | Not Applicable |
| Inlet Connection Entry | Bottom |
| Inlet Connection Gender | Not Applicable |
| Inlet Connection Size | 1/8" |
| Inlet Connection Type | Compression |
| Max. Pressure | 2500 psi WOG |
| Max. Pressure (combustible Gas) | 2500 psi |
| Max. Pressure (cwp) | 2500 psi |
| Maximum Pressure - Steam | Not Rated |
| Media Temperature Range | -65°F to +300°F |
| Nominal Valve Size | 1/8" |
| Outlet Connection Gender - Side 1 | Not Applicable |
| Outlet Connection Gender - Side 2 | Not Applicable |
| Outlet Connection Size - Side 1 | 1/8" |
| Outlet Connection Size - Side 2 | 1/8" |
| Outlet Connection Type - Side 1 | Compression |
| Outlet Connection Type - Side 2 | Compression |
| Pipe Schedule Compatibility | Not Applicable |
| Port | Standard |
| Port Type | Full |
| Pressure For Water | 2500 psi |
| Seal Material | RPTFE |
| Seat Material | PFA |
| Special Features | Not Applicable |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | -65°F to +300°F |
| Tube Size | 1/8" |
| Vacuum Service Rating | Not Rated |
| Valve Construction | One-Piece |
| Valve Ways | 3-Way |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 4.83 |
| HS code | 8481801085 |
| Country of Origin | US |
Product Variants
| Model | Max. Pressure | Port | Port Type | Pressure For Water | Tube Size | Body Material | Ball Material | Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4A-MB4XPFA-BP | 2500 psi WOG | Standard | Full | 2500 psi | 1/4" | Brass | Stainless Steel | PFA | €252.24 | |
| 6A-MB6XPFA-BP | 3000 psi WOG | Standard | Standard | 3000 psi | 3/8" | Brass | Stainless Steel | PFA | €444.94 | |
| 2Z-MB2XPFA-BP | 2500 psi WOG | Standard | Full | 2500 psi | 1/8" | Brass | Stainless Steel | PFA | €249.39 | |
| 4Z-MB4XPFA-BP | 2500 psi WOG | Standard | Full | 2500 psi | 1/4" | Brass | Stainless Steel | PFA | €249.11 | |
| 6Z-MB6XPFA-BP | 3000 psi WOG | Full | Full | 3000 psi | 3/8" | Brass | Stainless Steel | PFA | €407.36 |
