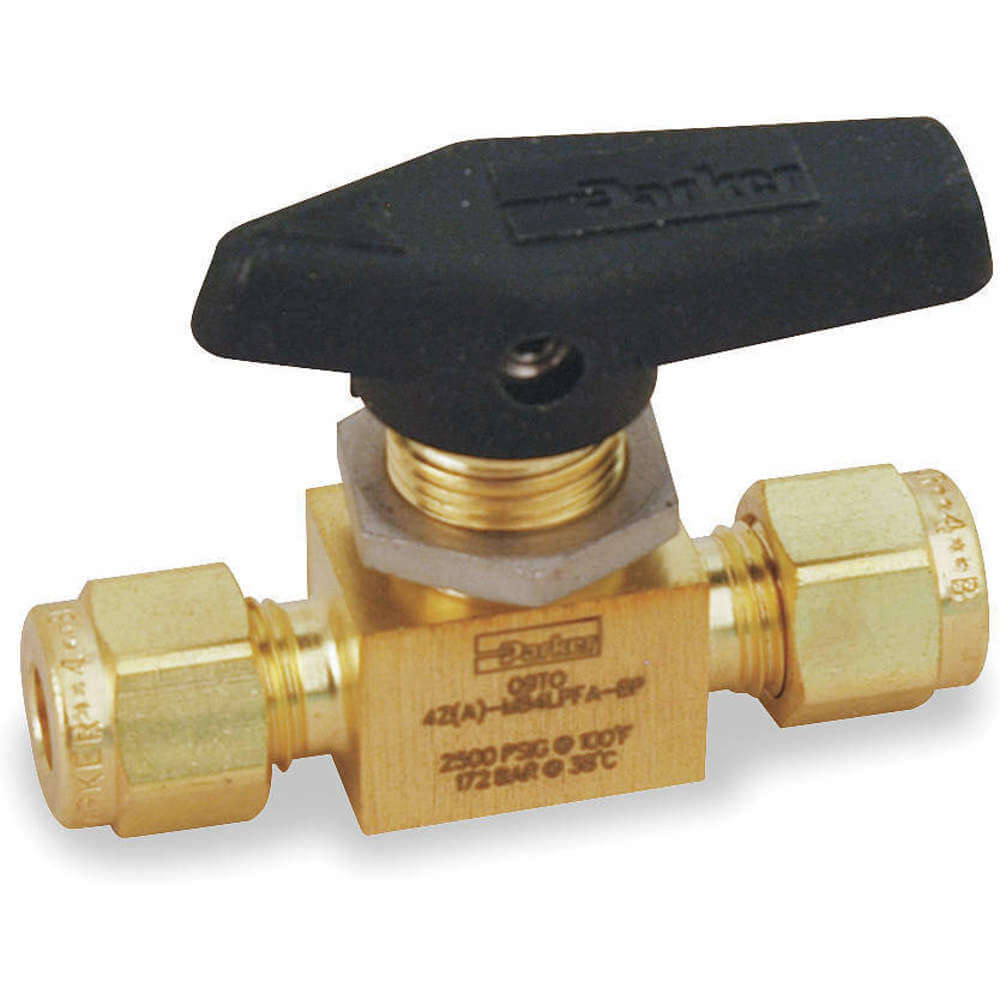

PARKER 2A-MB2LPFA-BP Brass Ball Valve Compression x Compression 1/8 In
Item: AB3ANUModel: 2A-MB2LPFA-BPCross Ref: 1RAF6
7 In Stock
Ships within 2 days via
10.00% off
€187.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mini Ball Valve |
| 3-a Compliance | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Stainless Steel |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Body Style | Inline |
| Coefficient Of Volume (cv) | 0.2 |
| Connection Gender - Side 1 | Not Applicable |
| Connection Gender Side 2 | Not Applicable |
| Connection Size - Side 1 | 1/8" |
| Connection Size - Side 2 | 1/8" |
| Connection Type - Side 1 | Compression |
| Connection Type - Side 2 | Compression |
| Features | A-Lok(R) Compression |
| For Media | Air, Natural Gas, Non Potable Water |
| Grade | Grade 316 |
| Handle | Lever |
| Handle Color | Black |
| Handle Length | 1.13" |
| Handle Material | Nylon |
| Handle Type | Lever |
| Included Mounting | Not Applicable |
| Max. Pressure | 2500 psi WOG |
| Max. Pressure (cwp) | 2500 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Maximum Pressure - Steam | Not Rated |
| Media Temperature Range | -65°F to +300°F |
| Nominal Valve Size | 1/8" |
| Overall Length | 2" |
| Pipe Schedule Compatibility | Not Applicable |
| Port | Standard |
| Port Type | Full |
| Pressure For Water | 2500 psi |
| Seal Material | PTFE |
| Seat Material | PFA |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | -65°F to +300°F |
| Tube Size | 1/8" |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Straight |
| Valve Construction | One-Piece |
| Valve Series | MB Series |
| Valve Ways | 2-Way |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 10.57 |
| Ship width (cm) | 4.83 |
| HS code | 8481801085 |
| Country of Origin | US |
Product Variants
| Model | Max. Pressure | Overall Length | Port Type | Pressure For Water | Tube Size | Body Material | Ball Material | Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4A-MB4LPFA-BP | 2500 psi WOG | 2.24" | Full | 2500 psi | 1/4" | Brass | Stainless Steel | PFA | €208.31 | |
| 6A-MB6LPFA-BP | 3000 psi WOG | 2.62" | Standard | 3000 psi | 3/8" | Brass | Stainless Steel | PFA | €302.67 | |
| 2Z-MB2LPFA-BP | 2500 psi WOG | 2" | Full | 2500 psi | 1/8" | Brass | Stainless Steel | PFA | €215.04 | |
| 4Z-MB4LPFA-BP | 2500 psi WOG | 2.24" | Full | 2500 psi | 1/4" | Brass | Stainless Steel | PFA | €216.19 | |
| 6Z-MB6LPFA-BP | 3000 psi WOG | 2.62" | Standard | 3000 psi | 3/8" | Brass | Stainless Steel | PFA | €314.46 |
