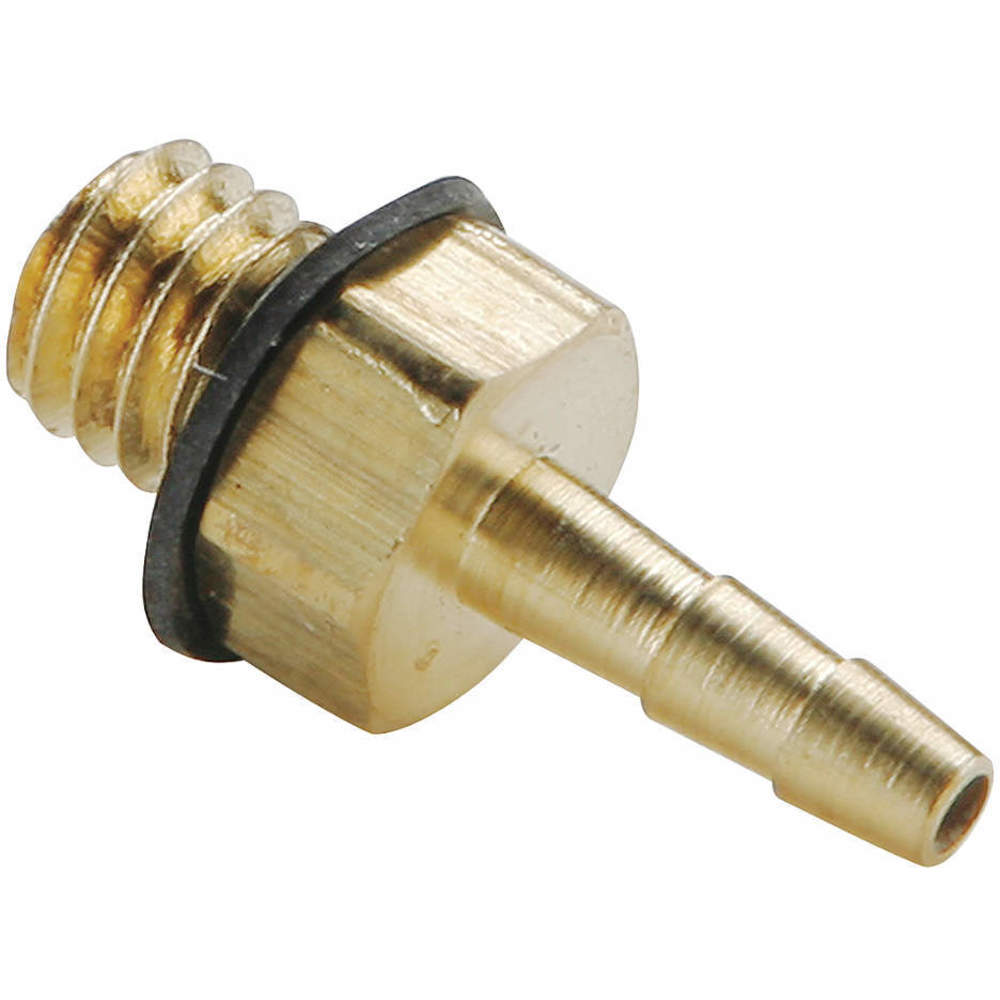

PARKER 27-1 Hose Barb, Pneumatic, 1/8 Inch Tube Outside Diameter
Item: AB9ZBZModel: 27-1Cross Ref: 2GUP2
7 In Stock
Ships within 2 days via
5.00% off
€11.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hose Barb |
| Application | Air |
| Barb Size | 0.062" |
| Barb Style | Standard |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Adapter |
| Body Material | Brass |
| Compatible Tube Material | Polyethylene |
| Configuration Sub Type | Male Connector |
| Configuration Type | Barb To Male |
| Connection Type | Tube To Pipe |
| Connector Type | Barbed Male Connector |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Barbed |
| Fitting Side A Tube Inside Dia. | 1/16" |
| Fitting Side B Connection Type | Male UNF |
| Fitting Side B Pipe Size | 1/8" |
| Hex Size | 1/4" |
| Material | Brass |
| Material Grade | Grade C36000 |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 32 Deg C |
| Max. Operating Temp. | 32°C , 90°F |
| Max. Working Pressure | 150 psi |
| Min. Operating Temp. | -53°C , 65°F |
| Operating Temp. | -65°F to +75°F |
| Outside Dia. 1 | 1/8" |
| Overall Length | 5/8" |
| Series | DUBL BARB Series |
| Shape | Barbed Male Connector |
| Specific Fitting Shape | Straight Adapter |
| Specific Pipe Fitting Shape | Adapter |
| System Of Measurement | Imperial |
| Temp. | -65°F to +90°F |
| Thread 1 Size | 10"-32 |
| Thread 1 Type | Fine |
| Thread Size B | 10-32 |
| Tube Fitting Material | Brass |
| Tube Material | Polyethylene |
| Tube Outside Dia. | 1/8" |
| Type | Tube To Pipe |
Shipping Info:
| Ship height (cm) | 0.64 |
| Ship length (cm) | 1.59 |
| Ship width (cm) | 0.64 |
| HS code | 7412200035 |
| Country of Origin | US |
Product Variants
| Product | Model | Temp. | Type | Fitting Side A Connection Type | Tube Outside Dia. | Max. Operating Temp. | Min. Operating Temp. | Application | Specific Fitting Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20-4 | -65°F to +90°F | Tube | Barbed | 1/4" | 90°F | 65°F | Air | Plug | €4.32 | |
 |
20-4-5/32 | -65°F to +90°F | Tube | Barbed | 1/4" | 90°F | 65°F | Air | Plug Adapter | €4.72 | |
|
20-6 | -65°F to +90°F | Tube | Barbed | 3/8" | 90°F | 65°F | Air | Plug | €6.87 | |
|
20-8 | -65°F to +75°F | Tube | Barbed | 1/2" | 90°F | 65°F | Air | Plug | €8.68 | |
 |
22-4 | -65°F to +90°F | Barb | Barbed | 1/4" | 90°F | 65°F | Air | Straight Connector | €2.37 | |
 |
224-4-4-5/32 | -65°F to +90°F | Barb | Barbed | 1/4" | 90°F | 65°F | Potable Water | Tee | €9.44 | |
 |
22-4-5/32 | -65°F to +90°F | Barb | Barbed | 1/4" | 90°F | 65°F | Air | Straight Reducing Connector | €7.55 |
