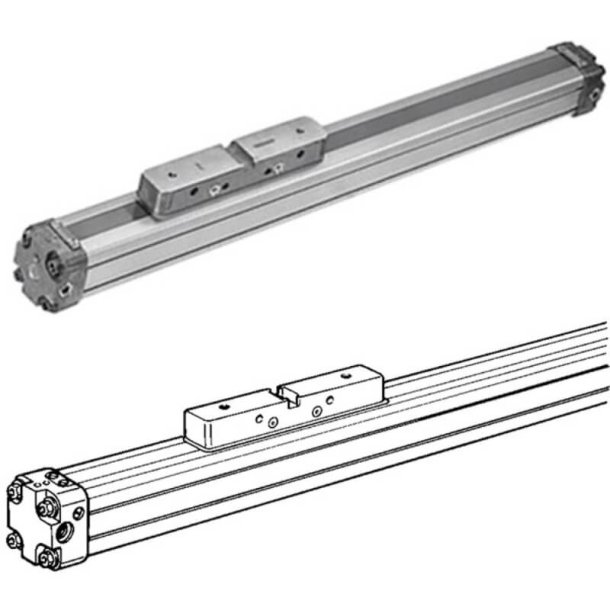

PARKER 25T-2020/20X104-BM Pneumatic Actuator
Get it by Tuesday, Aug 25
€5,036.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pneumatic Actuator |
| Ambient Air Temp. | 15°F to 175°F |
| Ambient Air Temp. For Operation | 15°F to 175°F |
| Application Type | Door Opening System Pick And Place Applications Durability Test Bench Food Processing Packaging, Labeling And Wrapping Systems Pusher, Picker And Gripper Applications Assembly Of A Modular Steering Kit Roll Cleaning Overhead Thrust Cleaning Sorting Machines With ATEX Feeding Cutting |
| Bore Size | 25 mm |
| Connection Type | 2 X 1/8" NPT Threaded Pneumatic Ports |
| Design | Single Cyl. Piston Magnet Single Piston Standard Cushion Location Standard Pre Lube Repairable , Single Cylinder Piston Magnet Single Piston Standard Cushion Location Standard Pre-Lube Repairable |
| Function | Double Acting Rodless Pneumatic Actuator |
| Main Function | Pneumatic Linear Actuator |
| Material | Extruded Anodized Aluminium Cylinder Body Aluminium Piston Stainless Steel Inner Band |
| Max. Air Service Pressure | 120 psig |
| Mounting | Standard Mounting |
| Mounting Mode | Standard Mounting |
| Pressure | 120 psig (Max. Air Service) 8.3 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 104 mm |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
