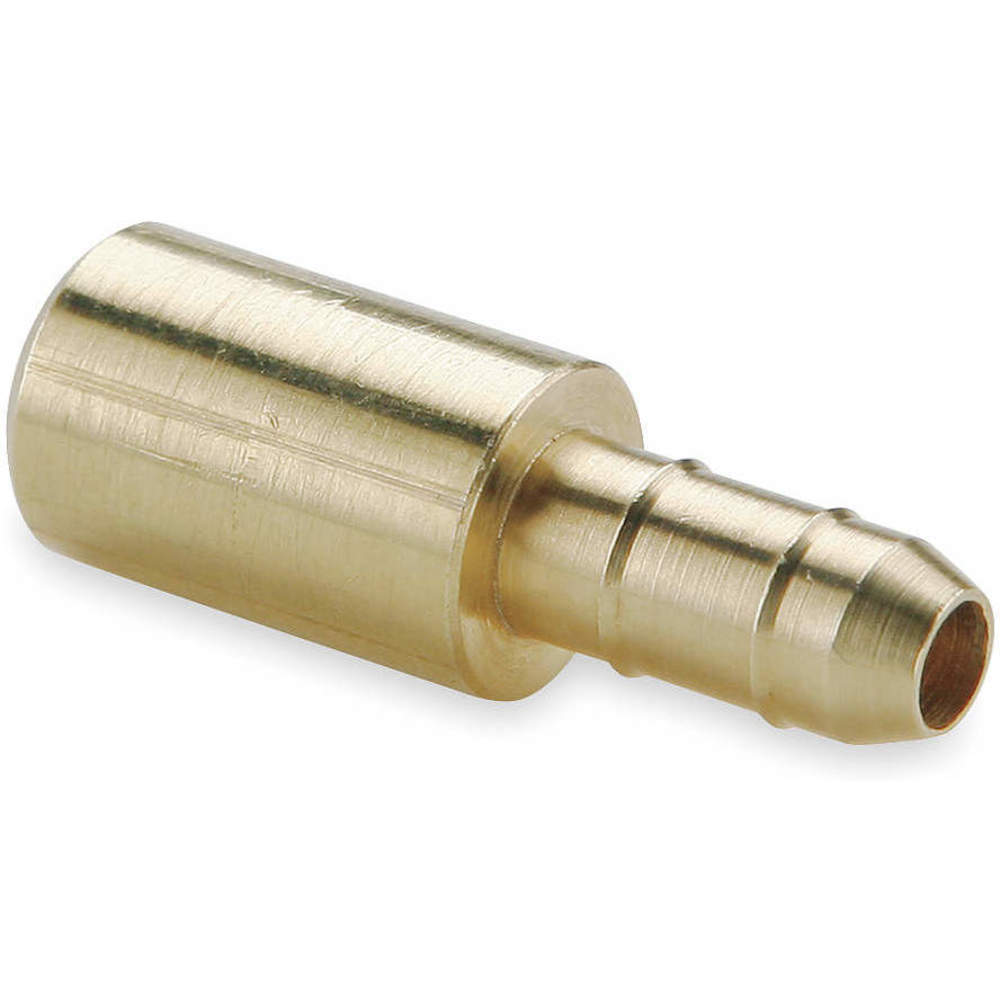

PARKER 238-4-4 Hose Barb Fitting, Connector, 1/4 Inch Outside Diameter, Brass
Item: AB9ZBUModel: 238-4-4Cross Ref: 2GUL6
7 In Stock
Ships within 2 days via
5.00% off
€6.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hose Barb |
| Application | Air |
| Barb Size | 0.17" |
| Barb Style | Double Barb |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Connector |
| Body Material | Brass |
| Class | Pipe Fitting |
| Color | Brass |
| Compatible Tube Material | Polyethylene |
| Configuration Sub Type | Solder Connector |
| Configuration Type | Adapter |
| Connection Type | Solder x Barbed |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Barbed |
| Fitting Side A Tube Inside Dia. | 11/64" |
| Fitting Side B Connection Type | FTG |
| Fitting Side B Tube Inside Dia. | 1/4" |
| Gender | Not Available |
| Material | Brass |
| Material Grade | Grade C36000 |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 32 Deg C |
| Max. Operating Temp. | 32°C , 90°F |
| Max. Pressure | 150 psi |
| Max. Working Pressure | 150 psi |
| Min. Operating Temp. | -53°C , 65°F |
| Operating Temp. | -65°F to +75°F |
| Overall Length | 29/32" |
| Pipe Size | 1/4" |
| Series | DUBL BARB Series |
| Shape | Connector |
| Specific Fitting Shape | Straight Adapter |
| Specific Pipe Fitting Shape | Connector |
| System Of Measurement | Imperial |
| Temp. | -65°F to +90°F |
| Tube Fitting Material | Brass |
| Tube Material | Polyethylene |
| Tube Outside Dia. | 1/4" |
| Type | Tube To Solder |
Shipping Info:
| Ship height (cm) | 1.02 |
| Ship length (cm) | 2.3 |
| Ship width (cm) | 1.02 |
| HS code | 7412200045 |
| Country of Origin | US |
Product Variants
| Product | Model | Temp. | Type | Fitting Side A Connection Type | Tube Outside Dia. | Max. Operating Temp. | Min. Operating Temp. | Application | Specific Fitting Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20-4 | -65°F to +90°F | Tube | Barbed | 1/4" | 90°F | 65°F | Air | Plug | €4.32 | |
 |
20-4-5/32 | -65°F to +90°F | Tube | Barbed | 1/4" | 90°F | 65°F | Air | Plug Adapter | €4.72 | |
|
20-6 | -65°F to +90°F | Tube | Barbed | 3/8" | 90°F | 65°F | Air | Plug | €6.87 | |
|
20-8 | -65°F to +75°F | Tube | Barbed | 1/2" | 90°F | 65°F | Air | Plug | €8.68 | |
 |
22-4 | -65°F to +90°F | Barb | Barbed | 1/4" | 90°F | 65°F | Air | Straight Connector | €2.37 | |
 |
224-4-4-5/32 | -65°F to +90°F | Barb | Barbed | 1/4" | 90°F | 65°F | Potable Water | Tee | €9.44 | |
 |
22-4-5/32 | -65°F to +90°F | Barb | Barbed | 1/4" | 90°F | 65°F | Air | Straight Reducing Connector | €7.55 |
