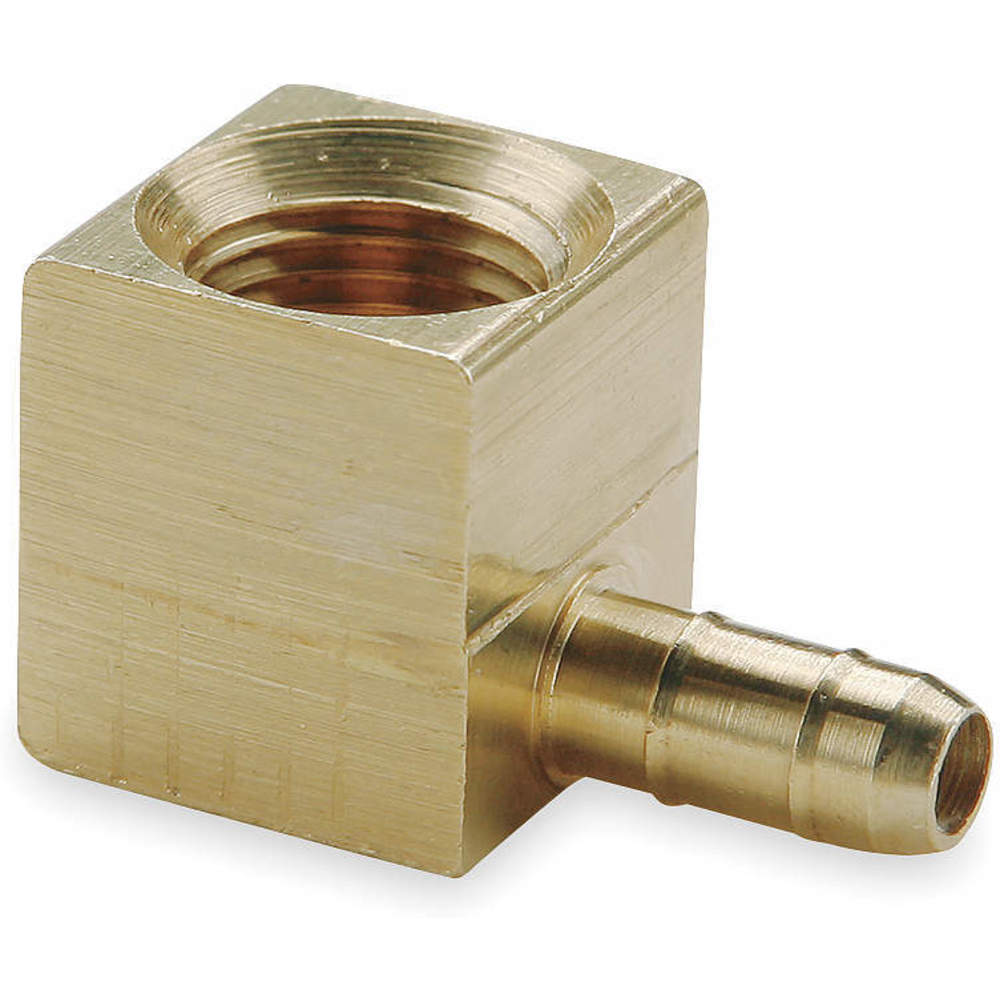

PARKER 230-4-2 Hose Barb Fitting, 1/4 Inch Outside Diameter, Brass
Item: AB9ZBEModel: 230-4-2Cross Ref: 2GUK2
7 In Stock
Ships within 2 days via
10.00% off
€7.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hose Barb |
| Application | Air |
| Barb Size | 0.17" |
| Barb Style | Double Barb |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Brass |
| Class | Pipe Fittings |
| Compatible Tube Material | Polyethylene |
| Configuration Sub-type | Female Elbow 90° |
| Configuration Type | Barb to Female |
| Connection Type | FNPT x Barbed |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Barbed |
| Fitting Side A Tube Inner Diameter | 11/64" |
| Fitting Side B Connection Type | FNPT |
| Fitting Side B Pipe Size | 1/8" |
| Gender | Female |
| Material | Brass |
| Material Grade | Grade C36000 |
| Max. Operating Temp. | 32 Deg C |
| Max. Operating Temp. | 32°C |
| Max. Working Pressure | 150 psi |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 90°F |
| Min. Operating Temp. | -53°C |
| Minimum Operating Temperature | 65°F |
| Operating Temp. Range | -65°F to +75°F |
| Outer Diameter 1 | 1/4" |
| Overall Length | 29/32" |
| Pipe Size | 1/8" |
| Series | DUBL BARB Series |
| Shape | 90° Elbow |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Inch |
| Temp. Range | -65°F to +90°F |
| Thread 1 Size | 1/8" |
| Thread 1 Type | NPT |
| Tube Fitting Material | Brass |
| Tube Material | Polyethylene |
| Tube Outside Dia. | 1/4" |
| Type | Tube To Female Pipe |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 2.3 |
| Ship width (cm) | 1.52 |
| HS code | 7412200035 |
| Country of Origin | US |
Product Variants
| Product | Model | Application | Pipe Size | Tube Outside Dia. | Specific Fitting Shape | Material | Barb Size | Overall Length | Hex Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20-4 | Air | - | 1/4" | Plug | Brass | 0.17" | 9/16" | - | €4.32 | |
 |
20-4-5/32 | Air | 5/32" | 1/4" | Plug Adapter | Brass | - | 21/32" | - | €4.72 | |
|
20-6 | Air | - | 3/8" | Plug | Brass | 1/4" | 11/16" | - | €6.87 | |
|
20-8 | Air | - | 1/2" | Plug | Brass | 0.377" | 13/16" | - | €8.68 | |
 |
22-4 | Air | - | 1/4" | Straight Connector | Brass | 0.17" x 0.17" | 27/32" | - | €2.34 | |
 |
224-4-4-5/32 | Potable Water | 5/32" | 1/4" | Tee | Brass | 0.17" x 0.17" x 0.096" | 1 1/4" | - | €9.44 | |
 |
22-4-5/32 | Air | 5/32" | 1/4" | Straight Reducing Connector | Brass | 0.17" x 0.096" | 23/32" | - | €7.45 |
