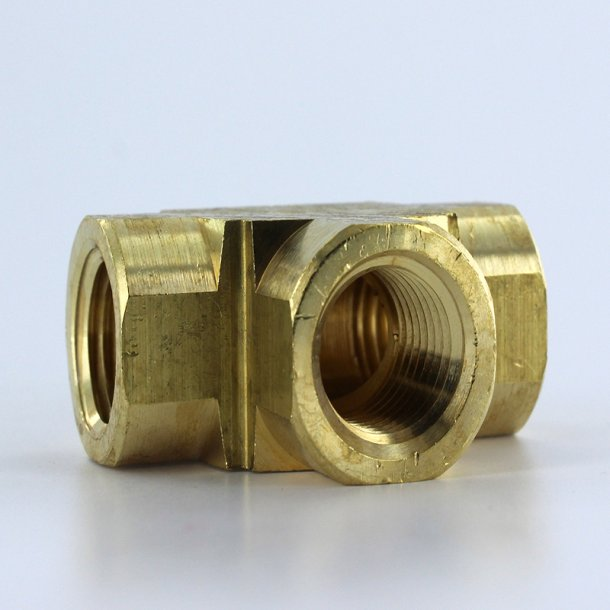

PARKER 2203P-12 Pipe Fitting, 3/4 Inch Thread Size, Brass
Item: AA6HKWModel: 2203P-12Cross Ref: 13Y898
7 In Stock
Ships within 2 days via
5.00% off
€59.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Brass Pipe Fitting Kit |
| Application | Air, Non Potable Water |
| Basic Fitting Shape | Tee |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Tee |
| Body Material | Brass |
| Class | Pipe Fitting |
| Color | Brown |
| Configuration Sub Type | Union Tee |
| Configuration Type | Pipe to Pipe |
| Connection Type | FNPT |
| Fitting Side A Gender | Female |
| Fitting Side A Nominal Pipe Size | 3/4" |
| Fitting Side A Type | NPT |
| Fitting Side B Gender | Female |
| Fitting Side B Nominal Pipe Size | 3/4" |
| Fitting Side B Type | NPT |
| Fitting Side C Gender | Female |
| Fitting Side C Nominal Pipe Size | 3/4" |
| Fitting Side C Type | NPT |
| Gender | Female |
| Included Pre-applied Thread Sealant | No |
| Included Seals | No |
| Length | 2 9/32" |
| Low Lead Compliance Level | Not Compliant |
| Material | Brass |
| Material Grade | Grade C37700 |
| Max. Operating Pressure | 1000 psi |
| Max. Operating Temp. | 121°C |
| Max. Operating Temp. | 121 Deg C |
| Max. Pressure | 1000 psi |
| Max. Steam Pressure | 1000 psi |
| Max. Working Pressure | 1000 psi |
| Min. Operating Temp. | -53°C |
| Overall Length | 2 1/4" |
| Pipe Fitting Material | Brass |
| Pipe Size | 3/4" |
| Series | PIPE Series |
| Specific Fitting Shape | Extruded Tee |
| System Of Measurement | Imperial |
| Temp. | -65°F to +250°F |
| Type | Female Pipe To Female Pipe |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 10.92 |
| Ship length (cm) | 5.72 |
| Ship width (cm) | 10.41 |
| HS code | 7412200035 |
| Country of Origin | US |
Product Variants
| Model | Pipe Size | Fitting Side A Nominal Pipe Size | Overall Length | Connection Type | Class | Application | Max. Operating Pressure | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2203P-6 | 3/8" | 3/8" | 1 5/8" | FNPT | Pipe Fitting | Air, Non Potable Water | 1000 psi | Brass | €22.93 | |
| 2203P-8 | 1/2" | 1/2" | 2 1/8" | FNPT | Pipe Fitting | Air, Non Potable Water | 1000 psi | Brass | €26.50 | |
| 2203P-4 | - | - | - | - | - | - | - | - | €12.46 |
